Iron/Steel Rods Induction Heating/Forging Machine Wh-VI-50kw

Name: Iron/Steel Rods Induction Heating/Forging Machine Wh-VI-50kw
Brand: china-castingforging.com
SKU: 781872895
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	US $ 1-5SET
Trade Terms:	FOB,CFR,CIF
Min Order:	1SET
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	WH-VI-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Note:	Machine Can Be Made as You Request
Install:	Install Video,Sketch Are Available
Engineer:	Enginner Overseas Avaiable
Energy:	Electirc
Energy Saving:	15%~30%
Electric Consumption:	Save 10%-30% Electric Than Other Heating Method
Circuit:	IGBT Series Resonace Circuit
Work Hour:	24 Hours
Cooling Method:	Water Cooling
Core Component:	IGBT From Siemen Siemenstechnology
Processing Object:	Metal
Molding Style:	Forging
Molding Technics:	Induction Forging
Application:	All Kinds of Metal
Heat Treatment:	Induction Forging
Surface Treatment:	Induction Forging

Product Description

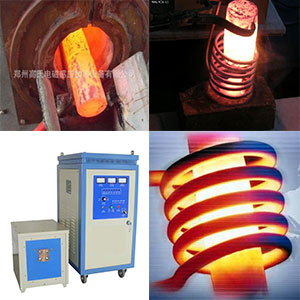

Iron/Steel Rods Induction Heating/Forging Machine WH-VI-50KW

Forging capacity:2.5-3.0kg/minute

Diameter:<50MM

Temperature:1150 Celsius degree or above

Technical Prameter:

Model	WH-VI-50
Worker power	Three phase 380V/50Hz
Working voltage range (AC)	342V~430V
Max input current	75A
Max output power	50KVA
Oscillation frequency	40-60KHz
Continuous load rate	100%
Cooling water pressure	0.1-0.3mpa
Host weight	55kg±5%
Transformer weight	35kg±5%
Host dimensions(LWH)mm	590450780
Transformer dimensions (LWH)mm	420355450
Particular recommended	Stand hot forging quenching
Temperature protection	50 degrees

Advantages:
1, ultra-small size, covering less than 1 square;
2,24 hours of uninterrupted work;
3, energy saving;
4, installation and operation is very convenient, that school that will;
5, rapid heat penetration, to reduce surface oxidation, saving materials;
6, to avoid surface decarburization, improve forging quality;
7, can improve the die life;
8 greatly improve the working environment;
9, low production power costs;

Forging Application:

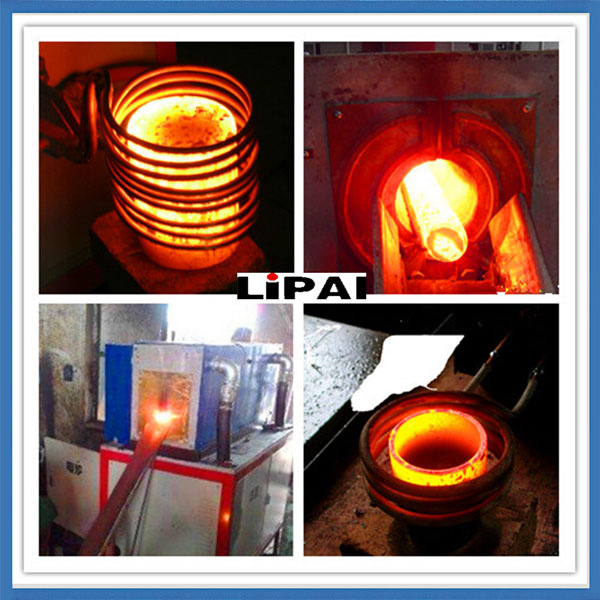

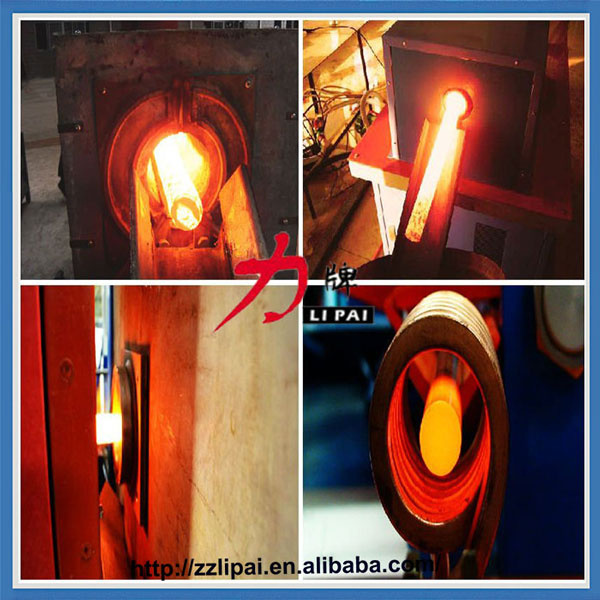

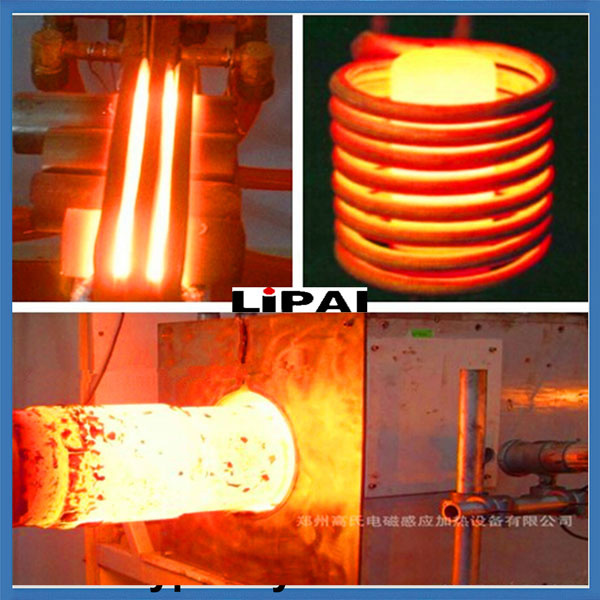

It is mainly hot forging the workpiece to a certain temperature after heating (heating temperature according to different materials are also different), through the press, forging bed or other forms of forging the workpiece into other shapes.Mainly applied to :

1.Case, table embryo, handle, mold accessories, kitchen utensils supplies, crafts,

2.standard parts, fasteners, machinery parts processing,

3. Brass Padlock, rivets, drill rod, drill with the hot extrusion and so on.

4.Hot forging for iron wrought

Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.

Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.

A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
