Product Description

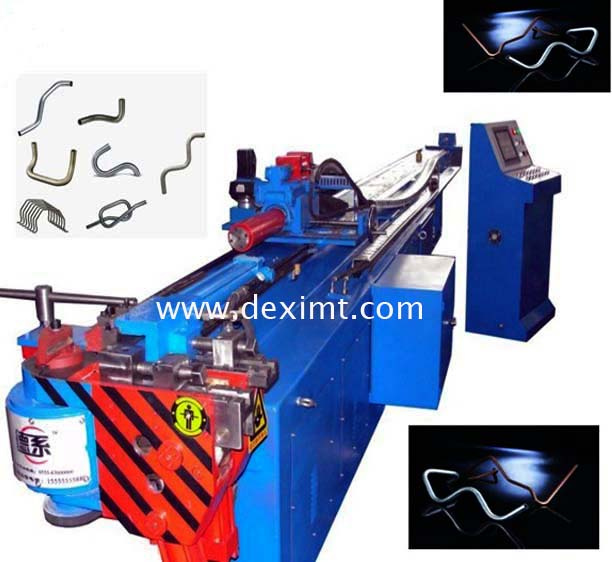

This electric cnc pipe and tube bender is servo motor driven; High bending accuracy; The pipe and tube bending machine bend pipes no wrinkles or cracks; Low noise, easy operation; German technology, favorable price. It can also bend square tubes or pipes, flat bar, U or channel steel, H steel, round bar, angle bar steel, etc.
1, The machine head part and the body reinforcement design, after annealing treatment to eliminate internal stress, the whole has enough strength and rigidity, prevent permanent deformation.
2, Low drive spindle assembly time directly from the upper inserts, accurate installation, maintenance is convenient. Bend pipe shaft and the drive sprocket integrally cast, and the overall process, overall hob, keyless connection, short pitch roller chain drive, to receive strength evenly. Drive spindle driven by double oil cylinder, pipe bending 5 r/min, the pipe bending process, the turning arm near the set point value before the automatic throttle hydraulic system buffer, greatly improved the precision of bending. Returns a reach 6 RPM, fast restoration, close to the starting point with throttling buffer, greatly improve the restoration precision and work efficiency is the only (using the structure of the manufacturer).
3, Clamp system adopts subsided four connecting rod lifting power structure, finished goods, chuck sinks to derrick, easier for handling and space bend (finished product natural fall under gravity, discharge tube is quite convenient).
4, Trolley space Angle to vertical pipe elbow organization precise Angle positioning (using AC servo motor closed-loop rotational).
5, Touch screen display, the operation of the menu display coordinate parameters and tube automatic conversion, the compensation, GP (industrial touch screen + PLC + servo control module for good reliability, cost-effective optimal another electric control mode).
6, 20 kinds of microcomputer controller can be preset bending Angle (in the same tube continuous bending 16 different perspective), equipped with mechanical Angle proportional amplifier structure, bending repeat positioning: + / - 0.1 ° . Space Angle repeat positioning: + / - 0.1 ° To the repeated positioning: + / - 0.1 mm can be bent a good stereoscopic pipe fittings, without having to make complex positioning device.
7, Bioavailable pedal switch one time grasp, feeding, clamping and pressing materials, core, bend (auxiliary propulsion), core-pulling, loosen, back pressure, reset, the whole process.
8, Our products are stable and reliable, the machine 48 hours continuous operation, no problem the delivery; The quality guarantee period will be extended to three years.
|
No. |
Name |
Parameter |
Unit |
|
1 |
Max. Rotary distance |
5000 |
N |
|
2 |
Max. Bend specifications |
Φ38*5 |
mm |
|
3 |
Min. Bend specifications |
Φ5 |
mm |
|
4 |
Max. Bend radius |
R200 |
mm |
|
5 |
Min. Bend radius |
R20 |
mm |
|
6 |
Max. Bend angle |
195 |
° |
|
7 |
Feeding trolley follower stroke |
6000 |
mm |
|
8 |
Pipe end min. length |
300 |
mm |
|
9 |
Mold center height |
40 |
mm |
|
10 |
Machine working height |
1100 |
mm |
|
11 |
Bend speed C shaft |
0-5 |
r/min. |
|
12 |
Clamping set speed B shaft |
0-10 |
r/min. |
|
13 |
Feeding trolley walking speed Y shaft |
0-30 |
m/min. |
|
14 |
Speed series |
Continuously variable speed regulation |
|
|
15 |
Repeat precision
|
C shaft |
+/-0.1 |
° |
|
Y shaft |
+/-0.1 |
mm |
|
B shaft |
+/-0.1 |
° |
|
16 |
Angle preset |
99 |
types |
|
17 |
Stop(plug) torque |
5000 |
N*m |
|
18 |
Motor total power |
7.5 |
kw |
|
19 |
Hydraulic system working pressure |
<=10 |
MPA |
|
20 |
Fuel tank capacity |
1000 |
L |
|
21 |
Size |
5*1.4*1.6 |
m |
|
22 |
Wet. |
2800 |
kg |
