Lab Ball Mill, Small Ball Mill
| Price: |
US $ 3000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
600*900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
100kg/H--3000kg/H |
| Price: |
4000-20000 USD |
| Final Size: |
50-1000 Mesh |
| Type: |
Ball Mill |
| Motor Type: |
AC Motor |
| Condition: |
New |
Product Description

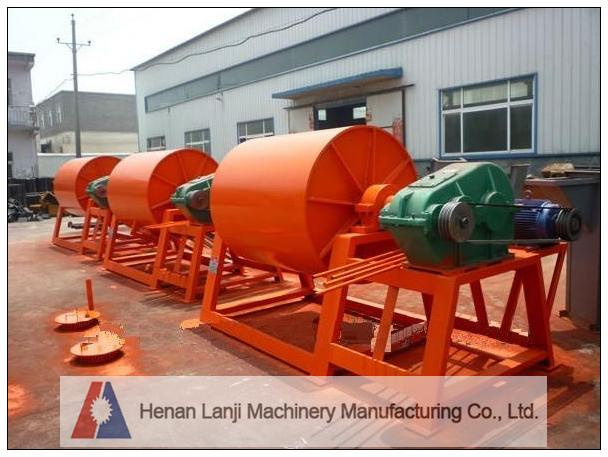

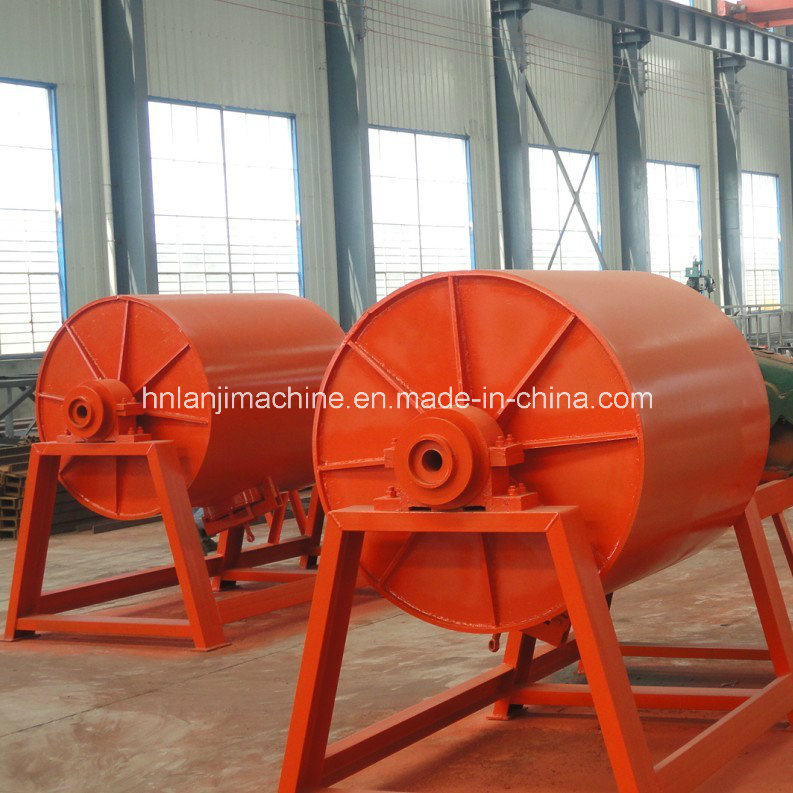

Lab Ball Mill, Small Ball MillCeramic ball mill: This machine works in both dry and wet methods intermittently, to mill, mix and discharge materials such as feldspar, quartz and clay. The slurry can pass through 1000 sieve pore. It's a kind of super fine grinding mill, so the feed material should be in medium size to get best grinding efficiency and economic profit.

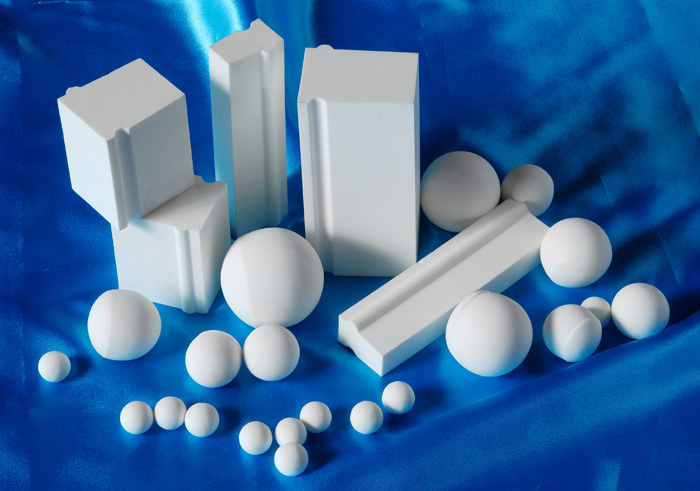

Ceramic ball mill working Principle:The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding processes finished.

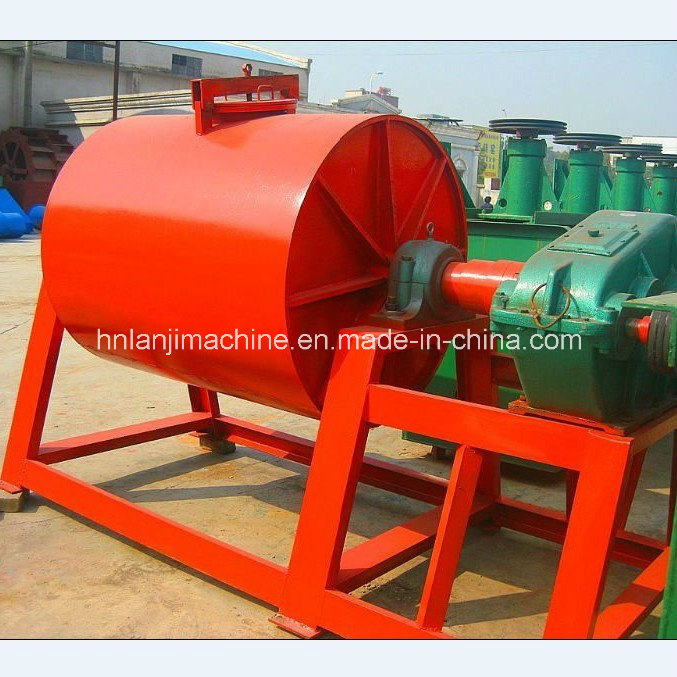

Ceramic ball mill Structure:The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Ceramic ball mill Technical data :| Model | Capacity
(t/h) | rotation speed(r/min) | Power(kw) | Weight(t) |
| TCQ910×1120 | 0.2 | 36 | 5.5-11 | 3 |
| TCQ1200×1400 | 0.5 | 32 | 11-18.5 | 3.8 |
| TCQ1500×1800 | 1 | 28 | 15-22 | 4.5 |
| TCQ1800×2100 | 1.5 | 26 | 18.5-30 | 6 |
| TCQ2100×2100 | 2.5 | 22 | 22-37 | 7.4 |
| TCQ2200×2400 | 3 | 20 | 28-45 | 8.2 |
| TCQ2500×2900 | 5 | 16 | 37-55 | 9.3 |
| TCQ2800×3700 | 8 | 14.5 | 55-75 | 12.5 |
| TCQ3000×3700 | 10 | 14 | 75-90 | 18.6 |
Henan LanJi Machinery Manufacturing Co., Ltd. is a jiont-stock mining machinery manufacturing enterprises integrated in scientific research, production and marketing. It is located at the Hig-Tech development Zone Zhengzhou, China with an area of 80 thousand square meters. Equipments are more than 200 pieces, including large and medium sized metal processing, riveting and installing equipments. Engineers are more than 50 persons.
The leading products of our company include: Beneficiation equipment, crushing equipment, sand making equipment, cement equipment, Aerated concrete block production line. Widely used in the industries of metallurgy, mining, railway, high-way, building materials, refactory, ceramic industry, etc. Complete set of ore beneficiation equipment include ball mill, crusher, magnetic separator, flotation machine, spiral classifier, rotary dryer, widely used to separate the non-ferrous metals such as iron ore, copper ore, gold ore, lead&zinc, manganese ore, molybdenum ore, etc. And the Non-metallic Minerals like fluorite, quartz, etc. Jaw crusher, impact crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor are widely used for the airport, railway, high-way, road, buliding, etc. Aerated concrete block has been one important part to the new buliding materials. We can provide program design, process flow design, standard and non-standard design for clients.
Our company has passed ISO9001-2008 quality certificate, the produce sell well to domestic and abroad, Such as South Asia, Russia, Central Asia, Africa, Middle-east, etc.
Our company's tenetis "Advanced technology, quality first, sincere service, reputation first". We can ensure our clients without worry after buying by one set of complete after-sales service and quality-tracking system.
We sincerely hope to cooperate with the clients from all over the world to achieving mutual benefits and promotion, ans touching our theory through cooperation!
Tel: +86-371-67833678
Mobile phone: +86-13613714234(whatsapp)
