| Prod Model: |

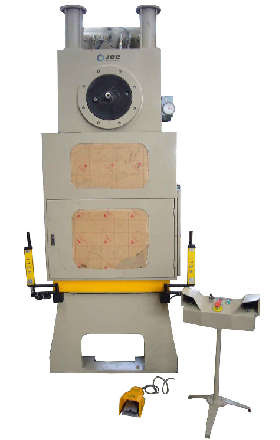

PM-25D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
-Slide travel is adjustable
-Protective cover is optional
-with two hand control
Features:
-The body of this machine is welded with steel plate, with good rigidity and stable precision, and with compact structure
-Using the combined pneumatic friction clutch
-with hydraulic overload protector
-with smooth engagement, agile action and low noise
-Gear pair adopts the flooding system lubrication
-Die height set is adjustable by power
-The crankshaft is equipped with a travel regulating device, and sliding block travel is adjustable
-For the sliding block, the square-shape extended hexagonal guide rail is adopted. The guiding surface is made of copper plate and with high precision
|
Nominal force (kN) |
250 |
|
Stroke under nominal pressure (mm) |
3 |
|
Slide block stroke (mm) |
10-110 |
|
Number of strokes (min -1 ) |
Fixed |
100 |
|
Variable (Optional) |
80-120 |
|
Max. die set height (mm) |
250 |
|
Adjustment of die set height (mm) |
50 |
|
Distance from slideblock centre to frame (mm) |
210 |
|
Worktable dimensions (mm) |
400x700 |
|
Table hole dimensions (mm) |
170x20x150 |
|
Thickness of bolster (mm) |
80 |
|
Dimensions of hole in bed (Diameterx F· BxL· R) (mm) |
260x250 |
|
Dimensions of slideblock bottom surface (F· BxL· R) (mm) |
300x360 |
|
Size of the handle hole (Dia. x Depth) (mm) |
40x60 |
|
Distance between columns of body (mm) |
450 |
|
Main motor capacity (kW) |
3 |
|
Overall dimensions (mm) |
1370x1050x2150 |
|
Net/gross weight (kg) |
3100/3550 |
