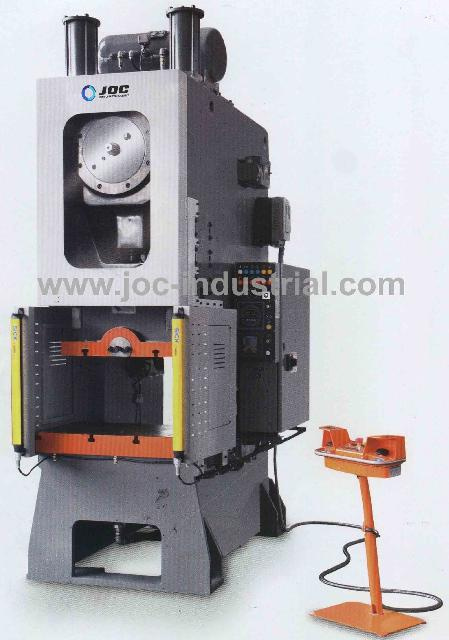

| Prod Model: |
PM-63L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
-The slide travel is adjustable for this press
|
Nominal force |
KN |
630 |
|
Stroke under nominal force |
mm |
4 |
|
Slide block stroke |
mm |
120 |
|
Number of stroke |
Fixed |
min -1 |
70 |
|
Variable |
60-80 |
|
Max die set height |
mm |
300 |
|
Die set height adjustment |
mm |
80 |
|
Distance from slide block centre to the frame |
mm |
300 |
|
Worktable dimensions(W*L) |
mm |
580× 860 |
|
Dimensions of worktable hole |
mm |
180 |
|
Thickness of bolster |
mm |
110 |
|
Hole dimensions in bed(F. B*L. R) |
mm |
365 |
|
Dimensions of slide block bottom surface(W*L) |
mm |
400× 800 |
|
Size of the handle hole(Diameter*Depth) |
mm |
50× 80 |
|
Distance between columns of body |
mm |
620 |
|
Main motor power |
KW |
7.5 |
|
Outline dimension(L*W*H) |
mm |
1800× 1210× 2520 |
|
Net/Gross weight |
kg |
6100/7000 |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
