| Prod Model: |
Q376 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Advantages: |
Double Hook Without Rail Exchanging, Compact Struc |
| Machine Type: |
Electric Heating High Pressure Cleaning Machine |
| Fuel: |
Electric |
| Clean Type: |
High Pressure Cleaner |
| Cleaning Process: |
Hot Water Cleaning |
| Certification: |
SGS, ISO |
Product Description

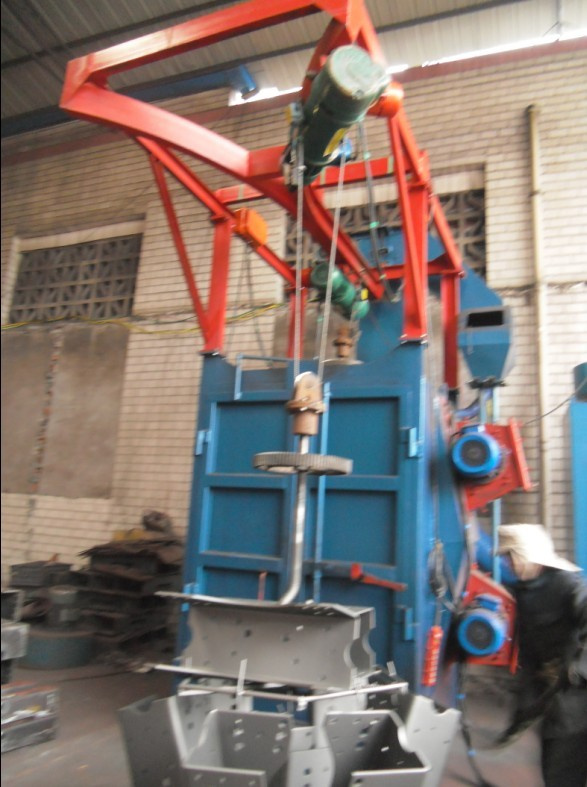

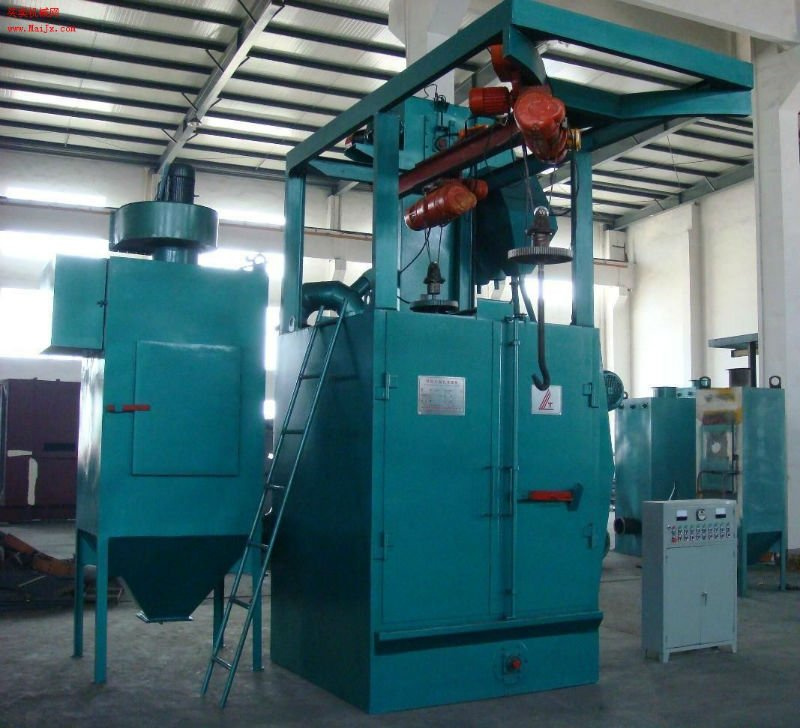

Hook type airless shot blast cleaning machine
Characteristics of Q37Airless blast cleaner:
Q37series hook type airless shot blast cleaning machine is mainly used for surface cleaning and strengthening of steel structural parts castings, aluminum alloy parts and other spare parts It is widely used in foundry, forging, mechanical and steel industry. In particular, Q378cleaner features no pit, double hook without rail exchanging, compact structure, and high productivity.
Advantages:
1. Q37cleaner features no pit,
2. Double hook without rail exchanging,
3. Compact structure,
4. High productivity.
5. ISO9001 certified and CE standard.
Item/type |
Q376F |
Q378 |
Q3710 |
QD3710 |
Q3720 |
Q3730 |
Q3750 |
Q3780 |
Size of cleaning chamber(mm) |
600*
1100 |
800*
1500 |
900*
1600 |
900*
1600 |
1400*
2300 |
1600*
2200 |
1800*
2500 |
2000*
3000 |
Carrying weight of single hook(kg) |
600 |
1000 |
1000 |
1000 |
2000 |
3000 |
5000 |
8000 |
Abrasive flow rate(kg/min) |
2*120 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
4*250 |
Lifting amount of elevating conveyor(t/h) |
15 |
22 |
30 |
30 |
45 |
45 |
60 |
60 |
Separating amount of separator(t/h) |
15 |
22 |
30 |
30 |
45 |
45 |
60 |
60 |
Ventilation(m 3 /h) |
5000 |
8000 |
9000 |
9000 |
15000 |
15000 |
18000 |
20000 |
Power(excluding dedusting)kw |
19 |
32.5 |
36.55 |
39.65 |
61.27 |
64.4 |
78.4 |
81.5 |
Outline dimensions(mm)
|
4429*
2850*
3443 |
4325*
2660*
5009 |
5047*
3850*
5156 |
5844*
2724*
5716 |
6110*
3599*
7842 |
7085
*4650
*8652 |
7062*
5460*
8652 |
8050*
6400*
8526 |
