| Prod Model: |
reference to the form |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
1200*2400 |
| Factory Established: |
1956 |
| Factory Area: |
55000m2 |
| Color: |
Grey |
| Weight Of Ball: |
1.5t |
| Power: |
18.5kw |
| Feeding Size: |
<25mm |
| Installation: |
Under Our Engineer's Guide |
| Certificate: |
ISO9001, ISO14000 |
| After Sale Service: |
for The Whole Using Life |
| Condition: |
New |
| Type: |
Crushing Equipment |
Product Description

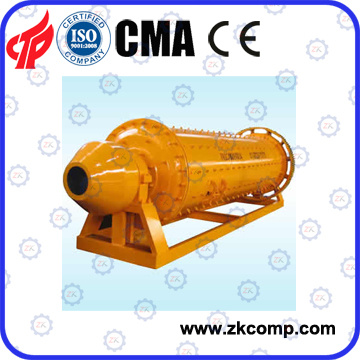

Ball mill, Milling Machine, Mill Ball
1 Run steadily, works reliably.
2 Stone Grinding Mill From3-70t/h.
3 ISO9001, ISO14000 and CE certificate
Ball mill, Milling Machine, Mill
The ball mill is a cylindrical device used to grind (or mix) materials like ores, chemicals, ceramic raw materials and paints. Ball mill rotate around ahorizontal axis, partially filled with the material to be ground plusthe grinding medium. Different materials are used for media, includingceramic balls, flint pebbles and stainless steel balls.
Working principle Ball mill
Ball mill, a kind of horizontal drum-type rotating device, is a grate mill withexternal gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which hasstep or waved lining with steel balls in different specifications. Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in thefirst bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. Powder shall be discharged from discharging grating, ending the milling process.
Features Ball mill
Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotationgear, motor, electric machine, etc). Hollow axis is made of steel partswith a lining replacable. Major rotation gear, machined by rollingwheel of casting, is lined with wearing plate with fine wear-resistingproperty. This machine runs stably and reliably. Based on difference of materials and discharging types, dry Ball mill and wet Ball mill are selectable.
| type | Rotational Speed(r/min) | balls weight(t) | material-in size(mm) | material-out size(mm) | (output)t/h | motor power(kw) | weight(t) |
| Φ 900× 1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ 900× 2100 | 38 | 2.7 | ≤ 20 | 0.075-0.83 | 0.7-3.5 | 22 | 3.9 |
| Φ 900× 3000 | 38 | 2.7 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Φ 1200× 2400 | 32 | 3.8 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 45 | 11.5 |
| Φ 1200× 4500 | 32 | 7 | ≤ 25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Φ 1500× 3000 | 27 | 8 | ≤ 25 | 0.074-0.4 | 2-5 | 90 | 17 |
| Φ 1500× 4500 | 27 | 14 | ≤ 25 | 0.074-0.4 | 3-7 | 110 | 21 |
| Φ 1500× 5700 | 27 | 15 | ≤ 25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Φ 1830× 3000 | 24 | 18 | ≤ 25 | 0.074-0.4 | 4-10 | 180 | 28 |
| Φ 1830× 7000 | 24 | 25 | ≤ 25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Φ 2200× 5500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| Φ 2200× 6500 | 21 | 31 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Φ 2200× 7500 | 21 | 33 | ≤ 25 | 0.074-0.4 | 16-29 | 380 | 56 |
| Φ 2400× 4500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Φ 2700× 3600 | 20.6 | 39 | ≤ 25 | 0.074-0.4 | 12-70 | 400 | 91.3 |
| Φ 2700× 4000 | 20.7 | 40 | ≤ 25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Φ 2700× 4500 | 20.7 | 48 | ≤ 25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Φ 3200× 4500 | 18 | 65 | ≤ 25 | 0.074-0.4 | 12-100 | 800 | 137 |
