| Prod Model: |
JLYE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Action: |
Double Action |
| Material: |
Steel |
| Brand: |
July |
| Certificate: |
CE/ISO9001 |
| Warranty: |
One Year |
| Power: |
Pneumatic Force |
| Precision: |
High Precision |
| Operation Model: |
Hand Operation |
| Forging Forming Method: |
Mold Forging |
Product Description

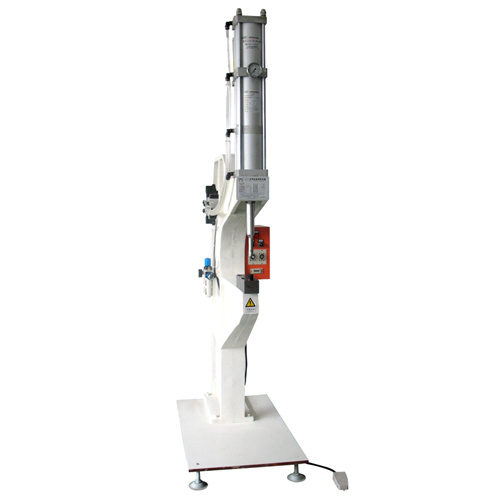

JLYE Riveting press machine
( Charaters of press )
1) With compressed air as the power, simple to operate.
2) Cylinder stroke adjustable and custom-made for special request.
3) Simple to adjust the output, the required pressure can be reached simply adjusting the pneumatic Pressure, easy and convenient.
4) Safe and human-centered design, comfortable and durable operation
5) Allows adding heating modules and temperature controller, as well as forcing transduce additionally.
We can customize the riveting machine according to customer"s requirements and price should be
Requote after we know the specification.
Application of the presses
Stamping sign Bending profile
Punching die Die cutting rigid material
Touch-welding profile Squeezing die and forming
Flattening and straightening Riveting and forging
Shaping metal plate Closing assembly
Testing material Riveting joint
|
JLYE- |
100- |
10E- |
610- |
10T- |
220V |
|
July four c-frame punching and riveting equipment |
Total stroke |
Boostingstroke |
Return force |
Output tonnage |
Voltage of control system |
|
Scale value |
Prepress stroke |
Scale value |
Output stroke |
Scale value |
Tonnage value |
Scale value |
Content |
|
100 |
100mm |
5E |
5mm |
5T |
5T |
Q |
Pure air-move operation |
|
10E |
10mm |
10T |
10T |
24V |
DC24V |
|
|
|
|
|
110V |
AC110V |
Specification of Air driven hydraulic pump
Model
|
JLYE-80-5T
|
JLYE-100-10T
|
Max height
|
100
|
100
|
Cylinder specification
|
Ø80*100mm
|
Ø100*100mm
|
Power
|
AC220V,50Hz
|
AC220V, 50Hz
|
Driving pressure
|
0.4-0.7MPa
|
0.4-0.7MPa
|
Weight
|
500kg
|
525kg
|
Driving pressure
|
Theoretical output
|
Theoretical output
|
0.4MPa
|
4000Kgf
|
6240Kgf
|
0.5MPa
|
5000Kgf
|
7800Kgf
|
