| Prod Model: |
SB1025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Can Paint as Your Requirement |
| Control System: |
PLC Control |
| Voltage: |
380V 50Hz 3phases |
| Cutting System: |
Hydraulic Shearing |
| Type: |
Building Machine |
Product Description

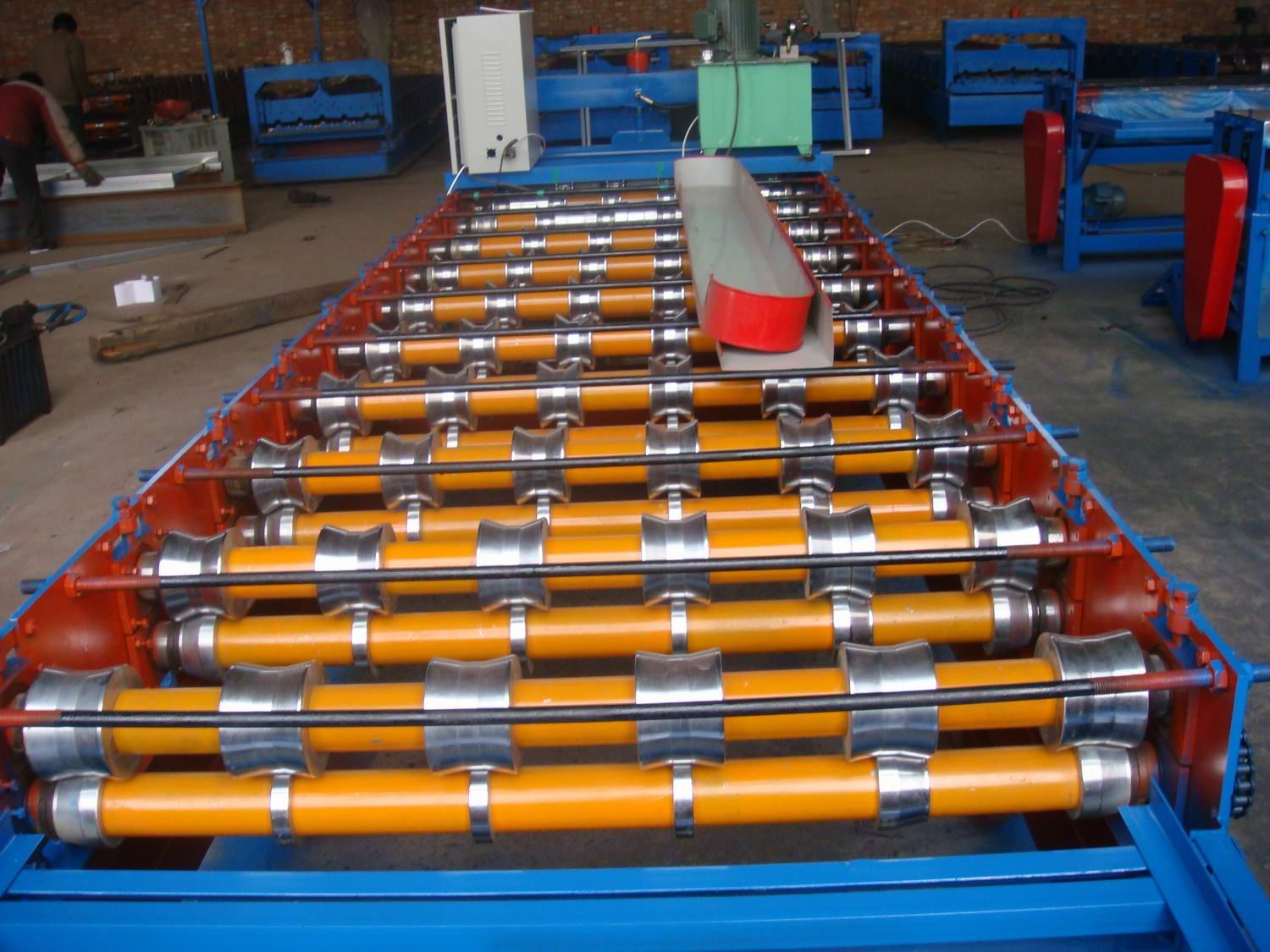

Roll formed steel profiles
Long * wide * high 8200mm*1500mm*800mm
Weight: 6.5T:
Undercarriage needed materials: 300H
Vertical bar: S16mm
Axis: Diameter 80mm 45#
Wheel: Most large diameter 400mm Material 45# Steel stock
Transmission: 1 inch chain link bearing model 6210
Power: Main engine electrical machinery capacity 3KW
The machinery takes shape: 24 rows
Hydraulic pressure formation:
Pumping station electrical machinery: 2.2KW four levels
Pressure: 10 megabars
Solenoid valve: DSG-02-3L60
Machine after computer automatic control shuts off
Formation speed: 8m/min
Automatic control disposition
: Computer: US Egyptian especially Meier
: Encoder: Domestically produced Wuxi Swiss PU or Japan ohm dragon
: : Relay: Zhengtai button: Zhengtai
: Monitor: Beijing Si PU Ruite
: Frequency changer: Shanghai the purple date or Taiwan reaches
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
