| Prod Model: |
HKY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Motor Power: |
7.5kw |
| Hydraulic Station Power: |
4kw |
| Hydraulic Oil Pump: |
CB-E310 |
| Sprocket: |
P-50.8 |
| Roller Station: |
12 |
| Yield Srength: |
32mpa |
| Diameter Of Principal Axis: |
80mm |
| Material Of Blade: |
Gcr15 |
| Material Of Roller: |
45# Hard Cr Plating |
| Total Weight: |
8t |
| Forging Forming Method: |
Cold Roll Forming |
Product Description
Sandwich Panel Forming Machinery (HKY)
Technical Parameters:
1. Main Motor Power: 32KW
2. Hydraulic Station Power: 4KW
3. Hydraulic Oil Pump: CB-E310
4. Sprocket: P-25.4mm
5. Control system: PLC
6. Yield strength: 32Mpa
7. Diameter of Principal Axis: Ø80mm
8. Material of Roller: 45#steel hard chrome plating
9. Processing Speed: 8m-12m/min
10. Frame: 300H steel welding
11. Roll plate thickness: 0.3-1mm

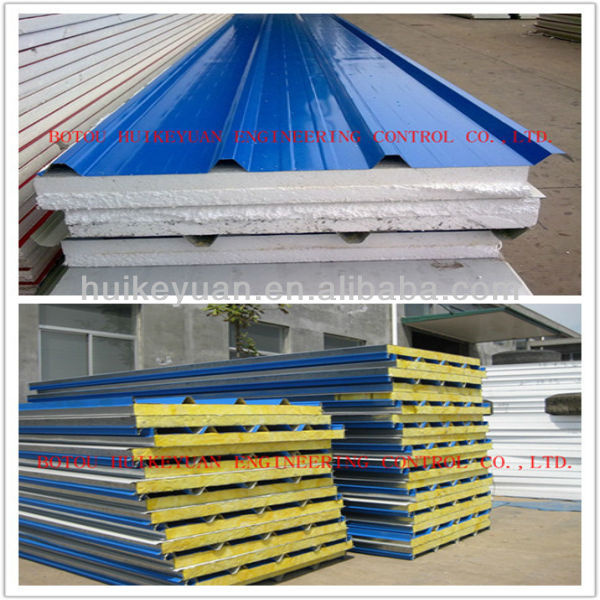

12. Thickness of sandwich panel: 50-250mm
13. Machine's voltage: 380V, 50-60HZ
14. Width of make-up product: 1000mm-1200mm
Use: The machine used to produce all kinds of house, wall panel forming machine, plate forming machine, double colored machine, glazed tile colored equipment, C, Z steel machine, electric plate equipment, high-speed guardrail equipment and so on.

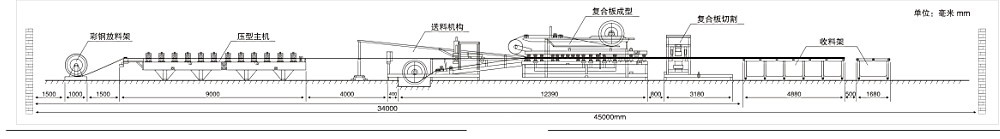

Equipment parts: Decolier, main roll forming machine, hydraulic cutter, hydraulic station, electric control system, counter, product supporter
We can also manufacture the machine according to customers'requirement.
If you're interested in our machines. Please contact me any time.
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
