| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, ISO |
| Machine Color: |
Made-to-Order |
| Brand Name: |
Zhongyuan |
| Control Mode: |
Mitsubishi PLC System |
| Operation Language: |
English or as Per Client`S Required |
| Controlling System: |
Mitsubishi PLC & Converter |
| Machine Used: |
Sandwich Panel Forming |
| Panel Core: |
EPS |
| Cutting Type: |
Cut to Length |
| Name: |
Sandwich Panel Machine |
| Forging Forming Method: |
Roll Forming |
Product Description

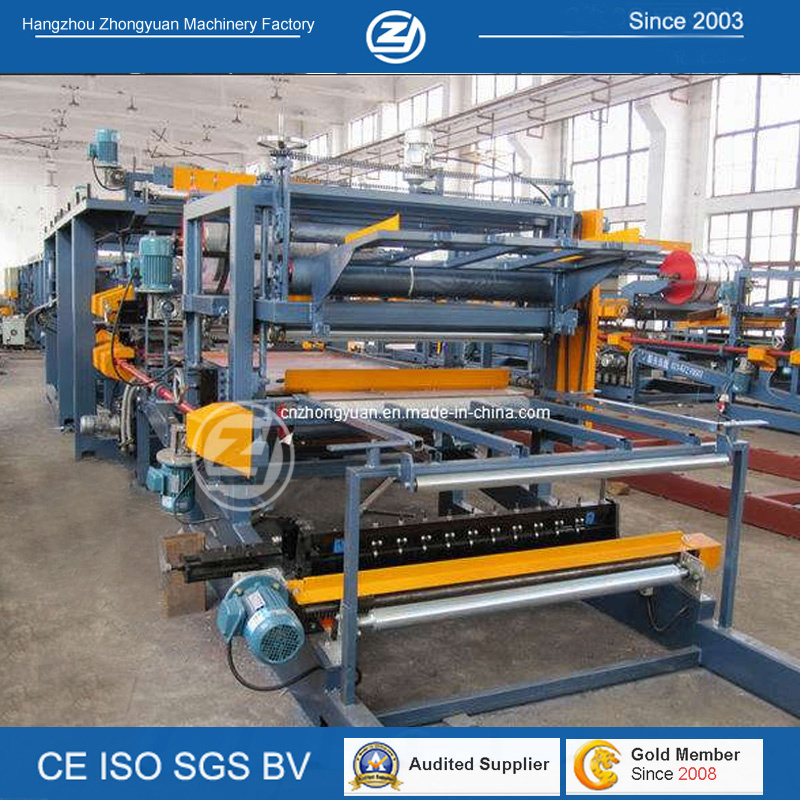

Sandwich Panel Machine
Used to make EPS sandwich wall panel or roof panle contimuously
Why choose this EPS sandwich panel forming machine?
1. Can be Customized
2. ISO, CE, SONCAP certificate
3.12 months warranty, 24 hours online service, lifetime technical support
4. Design by senior R&D members who have 15 years experience in designing roll forming machine.
5. Electric elements: Mitsubishi PLC & transducer from Japan.
6. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
7. Well resisting active shaft: High grade No. 45 carbon wrought steel.
8. Precision: Shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
9. People originate: Introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
10. Technician can be sent to your factory to install the machine and train your workers
Main Technical Parameters
1. Sandwich Panel Spec:
Panel width 950, 1150mm (according to profile requirement)
Panel thickness Mini thickness: 40mm (corrugated sandwich panel)
50mm (wall panel)
Max. Thickness: 150mm (exclude corrugated sandwich panel)
2. Coil Steel Sheet Spec:
Thickness 0.4-0.7mm
Width 1250, 1000mm
Yield strength ≤ 235MPa
Max. Coil weight 5tons
Inner Dia. Of coil 508mm
3. Whole Line Spec
Working speed max. 5m/min (adjustable)
Total length about 35m
Control mode PLC
Total power about 45Kw
Power required 380V/3phase/50Hz or as per customers requirement
Sandwich Panel Spec
|
| Panel width | 950mm, 1150mm (according to profile requirement) |
| Panel thickness | Mini thickness:
40mm (corrugated sandwich panel)
50mm (wall panel) |
|
|
Max. thickness:
150mm (exclude corrugated sandwich panel) |
|
Steel Sheet Spec (we can design as per buyer's special requirement ) |
|
| Thickness | 0.4-0.7mm color steel sheet |
| Width | 1250mm, 1000mm |
| Max. coil weight | 5tons |
| Inner Dia. of coil | 508mm |
Whole Line Spec |
|
| Working speed | Max.5m/min (adjustable) |
| Total length | about 35m |
| Control mode | Misubishi PLC |
| Total power | about 45Kw |
| Power required | 380V/3phase/50Hz or as per customers requirement |
Components |
|
| Manual decoiler |
| consecutive laminating body |
| pre-heat system |
| glue providing |
| heater |
| PLC control system |
Why us
We care about QUALITY
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
3. Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
4. Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
5. Cutter blade: Cr12 mould steel with quenched treatment
6. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
We care about USER EXPERIENCE
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
We care about YOUR CONCERN
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "SPECIAL"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
15 years experience engineers
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
