| Prod Model: |
SB860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Color: |
You Can Choose |
| Control System: |
Automatic Computer Control System |
| Cutting System: |
Hydraulic Shearing System |
| Warranty: |
12month |
| Type: |
Building Machine |
Product Description

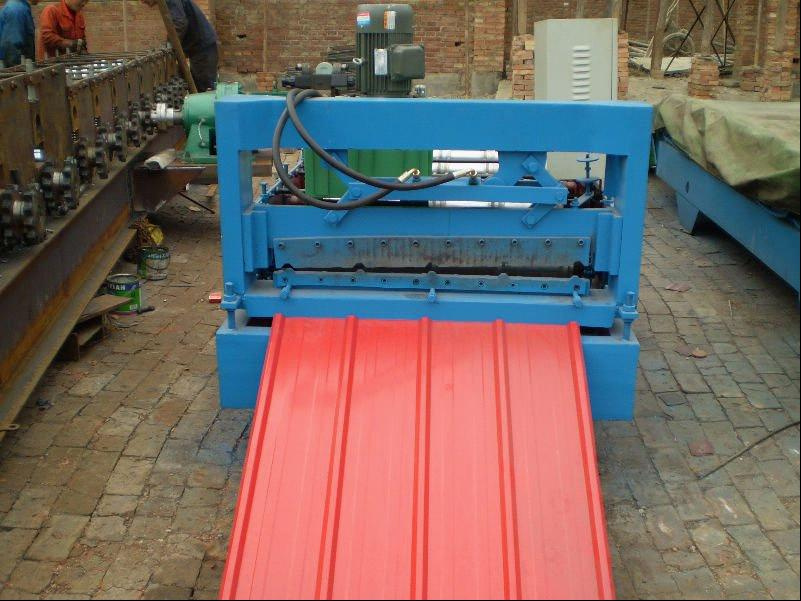

SB roll shaper machine in China
Hydraulic shearing
Material of blade Cr12, heat treatment 60-62 degrees celsius
Shearing system It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40#
Electrical system
Screen display 5.7 inches TaiDa touch screen
Main computer control cabinet It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Processing precision: Within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.
|
No. |
main parameter of roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
11 rows |
|
4 |
Dimensions |
6.0*1.1*1.2m |
|
5 |
Power |
3+3kw |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ 70mm |
|
9 |
Weight |
About 3.0T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Gr12 |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
