| Prod Model: |
SB840 glazed tile roll forming machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
8-10m/Min |
| Cutting System: |
Hydraulic Shearing System |
| Warranty: |
12 Monthes |
| Control System: |
Automatic CNC Control System |
| Type: |
Building Machine |
Product Description

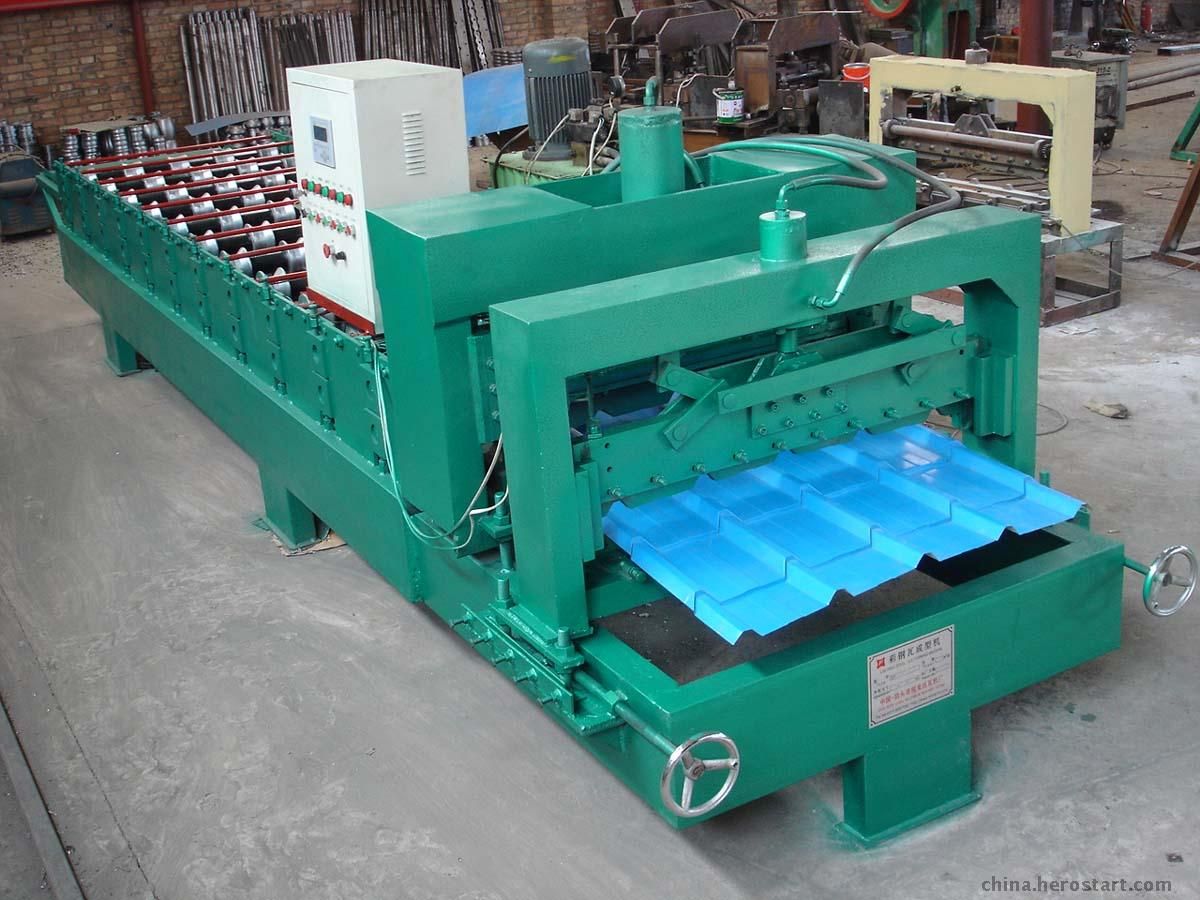

SB840 glazed tile roll forming machine made in China
Computer Control System PLC control electric models TaiDa
LCD 5.7 inch LCD, contains Chinese/English bilingual program
Working principle It adopts industrial computer to control, PLC control system, Accurate control of the plate size, Linking piece precision, forming speed
Hydraulic shear system Shear die material Cr12 High temperature quenching process
Hydraulic shear power 3 KW
Working principle The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40#.
2. Process flow
Decoiling-Active feeding-Roll forming-length setting cut off -Discharge table
|
Molding host |
Equipment production model |
SB 21-215-840 |
|
Forming size |
6000mm*1500mm*1000mm
2.5 T
Steel welding
13 rows
diameter70
45# steel
Sprocket chain transmission
1 inch
6 KW
5-8 m/min
0.3-0.8mm |
|
weight |
|
Main frame |
|
Number of forming rollers |
|
Out diameter of shaft |
|
Shaft material |
|
Driving mode |
|
Thickness of chain |
|
Equipment total power |
|
Forming speed |
|
Rolling thickness |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
