| Prod Model: |
SB7-131-910 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
You Can Choose |
| Control System: |
Automatic Computer Control System |
| Cutting System: |
Hydraulic Shearing System |
| Warranty: |
12months |
Product Description

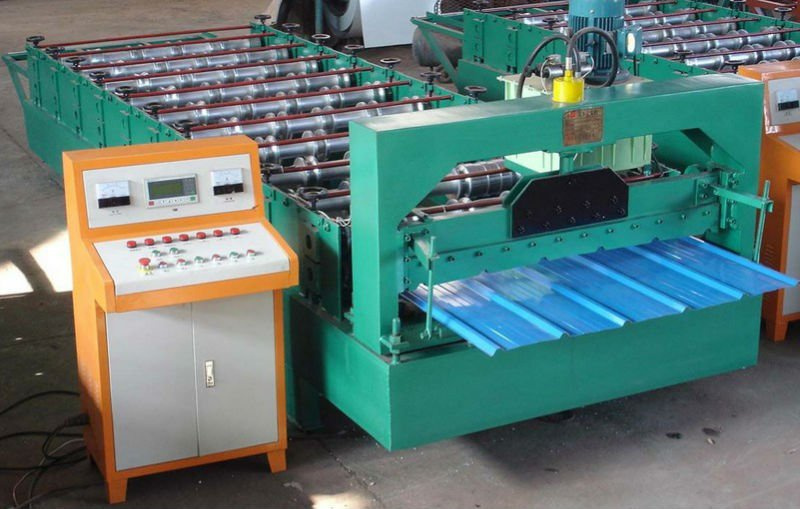

SB7-131-910 roof stud forming machine in China
Hydraulic shearing
Material of blade Cr12, heat treatment 60-62 degrees celsius
Shearing system It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40#
Electrical system
Screen display 5.7 inches TaiDa touch screen
Main computer control cabinet It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Processing precision: Within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.
|
No. |
main parameter of roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
6.0*1.1*1.2m |
|
5 |
Power |
3+3kw |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ 70mm |
|
9 |
Weight |
About 3.0T |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Rolling material |
Forging Steel 45# |
|
12 |
Material of the cutting plate |
Gr12 |
|
13 |
Hydraulic |
40# |
|
14 |
Processing precision |
Within 1.00mm |
|
15 |
Control system |
PLC control |
|
16 |
Thickness of chain |
1 inch |
|
17 |
Transportation system |
Chain transportation |
