| Prod Model: |
KS-Y132 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
The machine is mainly used together with single mould and combination mould of aluminum alloy door and window series to finish the punching processing of all the holes and notches of various corresponding common profile and insulation profile. Four guide-pillars are used for guidance. It is characterized by stable blanking, high speed and efficiency, pollution-free and high precession and possesses the function of automatic scrap discharge. It is quick, convenient, safe and reliable to replace the mould.
Two-column Hydraulic punching machine is the latest product developed and manufactured by our company with many years practice by accepting the suggestions and demand of customers. The shaking, material blocking, and breaking caused by imbalanced blanking position and uneven stress of the similar machine can be rid off thoroughly through the driving balancing shaft of hydraulic pressure oil cylinder to synchronize two pull pillars with mechanical control. Meanwhile, there are larger space for matching mould and larger punching force compared with the machines with the same size. The performance of the machine is most stable and it has won the recognition of customers and wide acclaim, thus, it is machine mainly recommended by our company since being launched into the market.
TECHNICAL PARAMETER
|
Model |

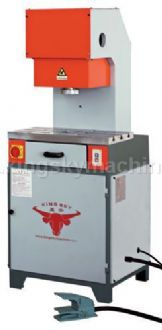

KS-Y132 Single Cylinder Hydraulic Punching Machine |
|
Number of punching positions |
2pcs |
|
Maximum closed height |
210mm |
|
Minimum closed height |
175mm |
|
Maximum punching stroke |
45mm |
|
Diameter of oil cylinder |
80mm |
|
oil tank Capacity |
35L |
|
Power of electric motor |
2.2Kw |
|
Maximum punching shear force |
8000Kg |
|
Worktable demension |
300x620mm |
|
Working Voltage |
380VAC/50HZ |
|
Overall Dimension (L*W*H) |
640X520X1510mm |
|
Machine Weight |
800kg |
Foshan Kingsky Machinery Co., Ltd. is established by Hong Kong AUSDA International Group Co., Ltd. The company is professional in aluminum processing machinery business integrates R & D, Production, marketing, maintence and aluminum processing technology. The company has a total building area of over 50000 square meters and has staff more than 300 members.
By virtue of advanced techonlogies of German Bosch Group Co., Ltd. We developed and produced the 4-Axis CNC Auto- Feeding Drilling Milling and Cutting Machine, CNC heavy-duty arc bending machine, Four Rolls Plate Bending Machine. These machines have filled the gap and in a leading of the domestic production of the 3-axis, 4-axis, 5-axis machining center for aluminum profile processing. Also, the company is the first one developed a whole production line of alu-wood windows & doors and solutions in China.
The machinery produced by KingSky have passed the international CE prove and SGS testing, and the overall indicators have reached a international advanced level.
The products are warmly welcomed by the users home and adroad for it's advanced technology, high quality, reasonalbe price and excellent after sales service. The products already exported to more than 30 countries around the world in the Europe, Americal, Southeast Asia, The Middle East and Africa etc.
KingSky is a Global Supplier for aluminum window, door, curtain wall and aluminum profiles processing machinery!
