| Prod Model: |
50ZGHH(D) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Centrifugal Pump |
| Pump Type: |
50zghh(D) |
| Max. Power: |
60(Kw) |
| Capacity: |
68.4-136.8(M3/H) |
| Head: |
25-87(M) |
| Speed: |
850-1400(R/Min) |
| Max.Eff.: |
47(%) |
| Working Pressure: |
Low Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
Product Description

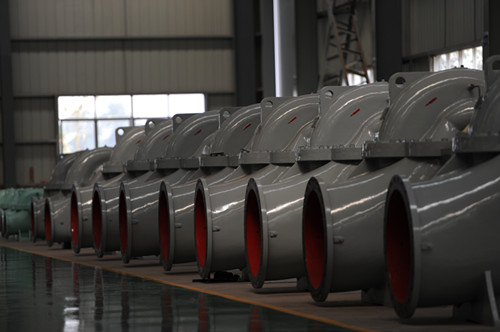

Single Stage Horizontal Centrifugal Gravel Sand Slurry Pump
General:
Based on the introduction of international advanced technology, we developed complete series of products with perfect performance, which are found they own the features of reasonable structure, reliable performance and long service time through operation in the metallurgy, mines, and power plant and chemical industries. They win the praise from the clients and operators on site.
Various Industries where Slurry Pumps are applied:
Alumina, Asbestos, Bauxite, Building Products, Cement, Coal, Chemical Fertilizer, Wolfram & Scheelite, Water & Sewerage Utilities, Copper, Electric Utilities, Gold, Iron Ore, Lead & Zinc, Mineral Sands, Molybdenum, Sugar Tin, Oil Shale, Phosphate, Pater & Pulp, Sand& Gravel, Silver, Steel, Titanium, Tobacco.
Application of CAE software:
CAE software is the advanced technology which can analyze the gating system, estimate its performance and put forward the improvements to optimize the casting. This technology can analog the mold filling and solidification process, and predict the shrinkage, gas entrainment and powder entrainment, so it can decrease the rejection rate and assure the non-defect product.
Application of CFD software:
CFD software can predict the internal flow field of pump and external characteristics, and analog the motion of slurry in the pump inside, then adjust the angle and thickness of impeller blade which can make it have wider flow channel to decrease the slurry speed and impact to the wet parts. This technology can reduce the abrasion and raise the hydraulic efficiency of pump.
Payment term and delivery term:
Delivery Time: 20 working days
Period of Validity: In 30days
Packing: Foam plate packaging/ wooden case packing
Terms of Payment: 30% of the total amount prepaid as front money after the contract, 70% of the total amount paid before delivery.
Delivery term: FOB Shanghai
Warranty: 12 months or 1000 running hours since discharge of the goods at buyer's place.
|
Type |
Max. Power |
Material |
Clear Water Performance |
Impeller |
|
Liner |
Impel |
Capacity |
Head |
Speed |
Max.Eff. |
NPSH |
NO.of Vanes |
Impel. Dia. |
|
(KW) |
(m 3 /h) |
(l/S) |
(m) |
(r/min) |
(%) |
(m) |
(mm) |
|
25ZGAH(B) |
15 |
M |
M |
12.6-28.8 |
3.5-8 |
6-68 |
1200-3800 |
40 |
2-4 |
5 |
152 |
|
RU |
RU |
10.8-25.2 |
3-7 |
7-52 |
1400-3400 |
35 |
3 |
|
25ZGHH(C) |
30 |
M |
M |
16.2-34.2 |
4.5-9.5 |
25-92 |
1400-2200 |
20 |
2-5.5 |
5 |
330 |
|
35ZGAH(B) |
15 |
M |
M |
32.4-72 |
9-20 |
6-58 |
1200-3200 |
45 |
3.5-8 |
5 |
184 |
|
RU |
RU |
25.2-54 |
7-15 |
5.5-41 |
1000-2600 |
50 |
2.5-5 |
178 |
|
50ZGAH(C) |
30 |
M |
M |
39.6-86.4 |
11-24 |
12-64 |
1300-2700 |
55 |
4-6 |
5 |
214 |
|
RU |
RU |
36-75.6 |
10-21 |
13-46 |
1300-2300 |
60 |
2-4 |
213 |
|
50ZGHH(D) |
60 |
M |
M |
68.4-136.8 |
19-38 |
25-87 |
850-1400 |
47 |
3-7.5 |
5 |
457 |
|
75ZGAH(C) |
30 |
M |
M |
86.4-198 |
24-55 |
9-52 |
1000-2200 |
71 |
4-6 |
5 |
245 |
|
RU |
RU |
79.2-180 |
22-50 |
5-34.5 |
800-1800 |
59 |
3-5 |
|
75ZGHH(E) |
120 |
M |
M |
126-252 |
35-70 |
12-97 |
600-1400 |
50 |
2-5 |
5 |
508 |
|
100ZGAH(D) |
60 |
M |
M |
162-360 |
40-100 |
12-56 |
800-1550 |
65 |
5-8 |
5 |
365 |
|
RU |
RU |
144-324 |
40-90 |
12-45 |
800-1350 |
65 |
3-5 |
5 |
365 |
|
100ZGHH(F) |
560 |
M |
M |
324-720 |
90-200 |
30-118 |
600-1000 |
64 |
3-8 |
5 |
711 |
|
150ZGHH(S) |
560 |
M |
M |
468-1008 |
130-280 |
20-94 |
500-1000 |
65 |
4-12 |
5 |
711 |
|
150ZGAH(R) |
300 |
M |
M |
360-828 |
100-230 |
10-61 |
500-1140 |
72 |
2-9 |
5 |
510 |
|
RU |
RU |
324-720 |
90-200 |
7-49 |
400-1000 |
65 |
5-10 |
5 |
510 |
|
200ZGM(E) |
120 |
M |
M |
666-1440 |
185-400 |
14-60 |
600-1100 |
73 |
4-10 |
5 |
549 |
|
200ZGAH(ST) |
560 |
M |
M |
612-1368 |
170-380 |
11-61 |
400-850 |
71 |
4-10 |
5 |
686 |
|
RU |
RU |
540-1188 |
150-330 |
12-50 |
400-750 |
75 |
4-12 |
|
250ZGAH(ST) |
560 |
M |
M |
936-1980 |
260-550 |
7-68 |
300-800 |
82 |
6 |
5 |
762 |
|
RU |
RU |
720-1620 |
200-450 |
7-45 |
300-650 |
80 |
2.5-7.5 |
|
300ZGAH(ST) |
560 |
M |
M |
1260-2772 |
350-770 |
13-63 |
300-600 |
77 |
3-10 |
5 |
965 |
|
RU |
RU |
1152-2520 |
320-700 |
13-44 |
300-500 |
79 |
3-8 |
|
350ZGAH(TU) |
1200 |
M |
M |
1368-3060 |
380-850 |
11-63 |
250-550 |
79 |
4-10 |
5 |
1067 |
|
450ZGAH(TU) |
1200 |
M |
M |
2520-5400 |
700-1500 |
13-57 |
200-400 |
85 |
5-10 |
5 |
1370 |
