| Prod Model: |
JX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description

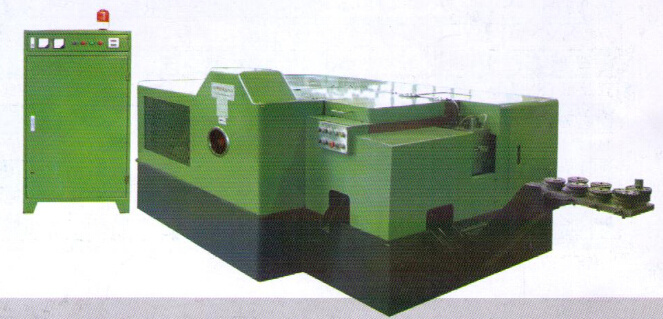

JX series mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high dfficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement.
Production items:

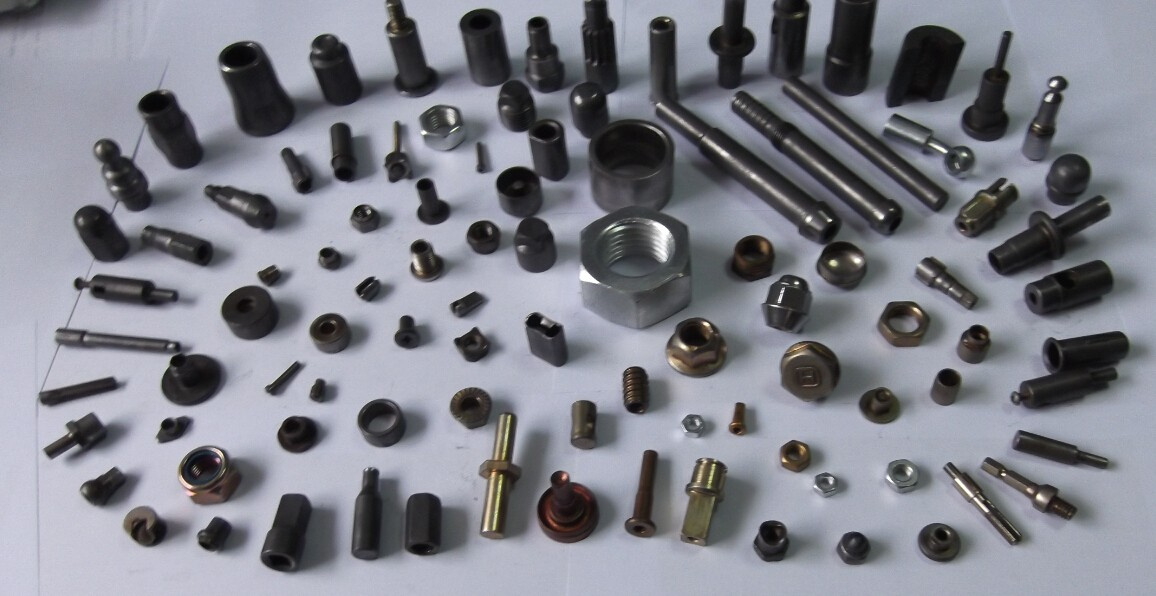

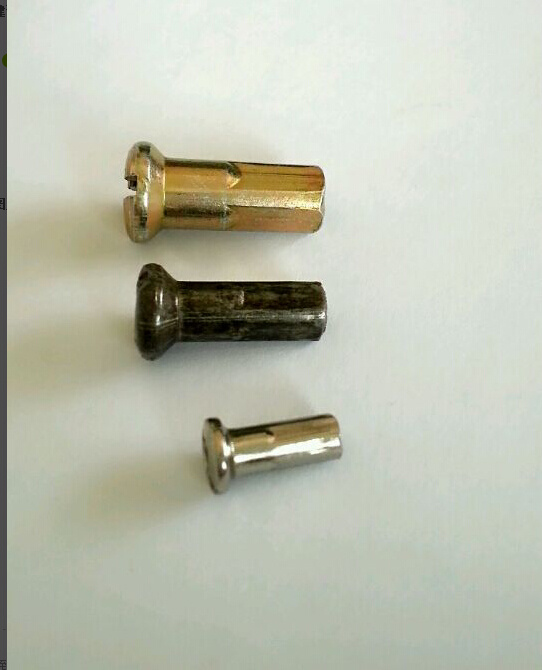

Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.
For anything of the machine, please feel free to contact me.
Crystal
Hope to cooperate with you.
| Model | JX11
B-6S | JX11
B-6S-L | JX14
B-6S | JX14
B-6S-L50 | JX14B-
6S-T50 | JX14B-
7S-L50 | JX17B-
6S | JX17B-
6S-L50 | JX19
B-6S | JX19B-
6SL-50 | JX24B-
6SL-70 |
| Forging Station | 6 | 6 | 6 | 6 | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Max. forging Dia. (mm) | 8-12 | 8-12 | 12-15 | 12-15 | 12-15 | 12-15 | 13-17 | 13-17 | 20 | 20 | 25 |
| Max. cut off dia. (mm) | 11 | 11 | 15 | 15 | 15 | 15 | 17 | 17 | 19 | 19 | 24 |
| product dia. | M4-M6 | M4-M6 | M6-M8 | M6-M8 | M6-M8 | M6-M8 | M8-M10 | M8-M10 | M10-M12 | M10-M12 | M12-M16 |
| Max. forging length (mm) | 13 | 25 | 16 | 45 | 30 | 45 | 45 | 45 | 25 | 50 | 70 |
| Die pitch (mm) | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
| Main slide stroke (mm) | 50 | 64 | 60 | 160 | 60 | 160 | 160 | 160 | 100 | 162 | 200 |
| output (pcs/min) | 120-240 | 120-240 | 85-170 | 70-100 | 70-100 | 70-100 | 85-165 | 70-100 | 100 | 85 | 85 |
| main motor | 15HP | 15HP | 20HP | 40HP | 40HP | 40HP | 40HP | 40HP | 40HP | 50HP | 74HP |
| appr. weight (kgs) | 4000 | 4500 | 7500 | 8500 | 7500 | 9000 | 10000 | 10000 | 13000 | 15000 | 20000 |
HARBIN RAINBOW TECHNOLOGY Co., Ltd. Comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation, now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.
We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service, our main products include wire drawing machine, Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.
With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and invested in following companies: Zhejiang Shengrui Machinery Co., Ltd., Zhejiang Dongrui Machinery Industry Co., Ltd., Suzhou Industrial Park Wuzhong Electric Furnace Manufacturing Co., Ltd., and Wuxi Pingsheng Science & Technology Co., Ltd., etc. We do these factories' foreign market developing and have received highly praises from a lot of customers.
We have established reputation in countries such as India, Iran, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
We have the confidence, backed by our professional knowledge and experience in the mechanical and electrical business, to develop the foreign markets for our home enterprises and to open up the Chinese markets for the companies abroad.
We abide by the principles of honesty, credibility, and mutual-benefit, and do our best to serve clients and customers both at home and abroad. With our top-notch professional knowledge and trading experience, we have seen our market development ability and actual business growth with an increasingly faster pace. We sincerely look forward to working with you to facility your company's foreign market development and China market expansion. Let's build a great future together!
