| Prod Model: |
WH-VI-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service: |
The Whole Life |
| Note: |
Machine Can Be Made as You Request |
| Install: |
Install Video,Sketch Are Available |
| Engineer: |
Enginner Overseas Avaiable |
| Manufacture: |
Zhengzhou Gou's |
| Energy: |
Electirc |
| Energy Saving: |
15%~30% |
| Principle: |
Series Resonance Circuit |
| Circuit: |
IGBT Series Resonace Circuit |
| Work Hour: |
24 Hours |
Product Description

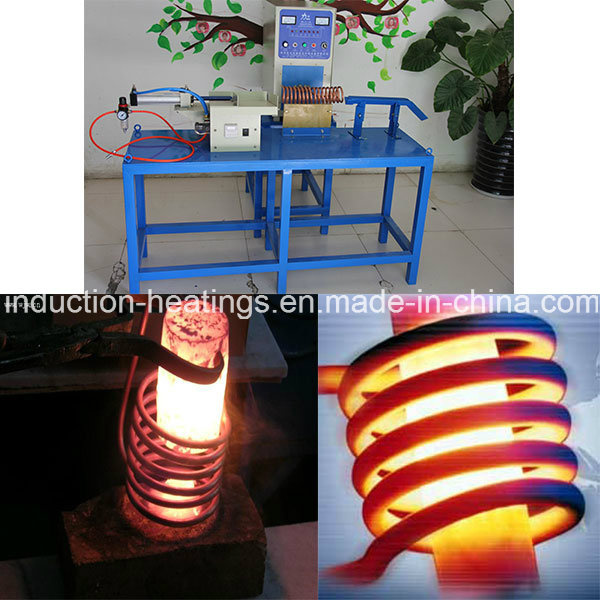

Small Electric IGBT Induction Furnace Metal Heat Treatment WH-VI-30KW
Technical Parameter of IGBT Induction Furnace:
| Model | WH-VI-30 | Work power | Three phrase 380v/ 50-60hz |
| Max output power | 30kw | Working voltage range(AC) | 342-430v |
| Max input current | 55A | Oscillation frequency | 10-60khz |
| Cooling water flow | 15L/min(0.1mpa) | Cooling water pressure | 0.1-0.3mpa |
| Efficiency | 95% | Continuous load rate | 100% |
| Host weight | 45kg±5% | Host size | 580x280x510mm |
| Temperature protection | 50ºC | Color of host | Blue/White |
Application of IGBT Induction Furnace:
(A) heat treatment industry (hardening, annealing, tempering and stress relieving):
1. Hardware tools high-frequency hardening heat treatment, such as; vise, hammer, locking pliers, wrenches, screwdrivers
2. Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft
3. Hydraulic components, such as: a rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.
4. Automotive, machinery and equipment, electric tools, gear, bearing high-frequency hardening heat treatment
5. Variety of woodworking tools, such as: ax, planer quenching
Wheels of a variety of automotive, motorcycle, marine and engineering equipment, machine axis IF quenching, large parts of the annealing, tempering and stress relieving.
(B) the welding industry (brazing)
1. Welding of various turning tools, planer, milling machining and cutting tools
2. Welding of various diamond tools, such as: welding diamond saw blades, diamond drill
3. Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed
4. Various shearer teeth welding, various digging machine cutter welding
5. Various mechanical welding tool
Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed
(C) forging industry
1. Heat pier variety of standard parts, non-standard parts, pieces of copper, steel and aluminum parts casting and forging
2. Hardware tools such as pliers, wrenches before forging heating
3. Solder with solder tail caudal peduncle cone drill head forging
4. A extrusion molding on the stainless steel container.
(D) the precious metal smelting industry
The sample melting of steel, iron, copper, aluminum and other tests, as well as gold, silver and other precious metals smelting
Our service:
(1)We will be free to guide the installation, commissioning and test run, by sending the installation drawings, and sometimes to call or send e-mail.
(2)We will carry out a one-year warranty period (e.g. excluding normal wear and tear parts and parts damage compensation caused by improper operation.
(3)We will be free to replace all equipment components during warranty period. The potential problems of customer service and customer service after sales.
(4)Provide long term technical support. Also for different work pieces, to guide and help to produce the inductor.
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
