| Prod Model: |
WH-VI-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White&Blue |
| Electric Consumption: |
Save 10%-30% Electric Than Other Heating Method |
| Install: |
Install Video, Sketch Are Available |
| After Sale Service: |
Provide Long-Terms Technical Support |
| Engineer: |
Enginner Overseas Avaiable |
| Note: |
Machine Can Be Made as You Request |
| Working Principle: |
Electromagnetic Induction Heating |
| Working Hours: |
24 Hours Running |
| Maintainance Period: |
12 Months |
| Marketing: |
All Over The World |
Product Description

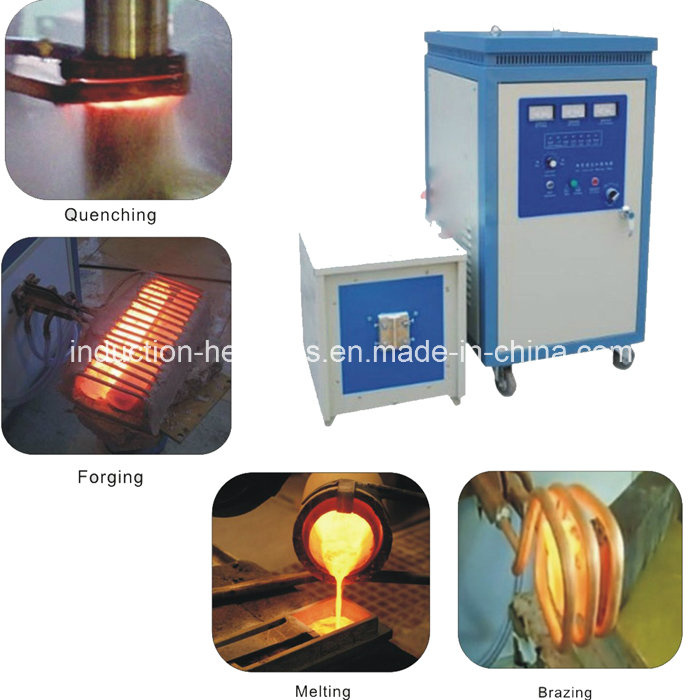

Small IGBT Forging Furnace Induction Heat Treatment Machine
Parameter of WH-VI-120kw induction heater bearing:
model | WH-VI-120 | working power |
three phrase 380V/50-60Hz |
working voltage range | 342V-430V |
| max input current | 165A | max ouput power | 120kw | oscillation frequency | 10-35KHz |
| efficiency | 100% | continuous load rate | 100% | cooling water flow(host) | 29L/min(0.2mpa) |
| cooling water pressure | 0.1-0.3mpa | host weight | 85kg+/-5% | cooling water flow(transformer) | 22L/min(0.2mpa) |
| color | blur/white | transformer weight | 90kg+/-5% | size of host | 650*520*1100 |
| usage |
melting,quenching,
heating, annealing |
temperature protection | 50ºC | size of transformer | 500*800*580 |
I. Heating&forging---to heat by induction metals wholly or partially from workpiece appearance
to its inner core under a common temperature, about 1200ºC.
Heating before forging.
kinds of metals, such as square steel and round steel.
How much does the induction heater bearing heat in one minute?
working power(model) | weight/min |
| 30kw | 1.2-1.5kg |
| 40kw | 2.2-2.5kg |
| 50kw | 2.5-3.0kg |
| 60kw | 3.5-4.0kg |
| 80kw | 4.5-5.2kg |
| 120kw | 5.5-6.3kg |
| 160kw | 6.8-7.5kg |
| 200kw | 9.0-11kg |
| 500kw | 18-22kg |
Packaging:
Packaged in fumigation-free wooden cases with anti-moisture/dust film and
anti-shock foam inside and steel belts and rivets outside for fastening.
The stand of the case can bear weight twice of that of the machine.
Delivery:
7-15 days after payment by sea/air/Express (such as DHL)
Reliable long-term freight forwarders are chosen for safety and speed.
After-sales Service:
One year warranty;
Long-term technical service;
Overseas on-site technicians service if required.
FAQ
1. What's your MOQ ?
At present we haven't strict policy for this,so welcome orders with any quantity.
2. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.
3. We are not professional for operation and installation of your machine......
While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What's more,we have professional engineers and they can solve all qoestions
4. How about packaging ?.......if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement
5. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our machine
have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference.
6. Have you done business with Chinese before?
If not,donot worry about transportation,and we can arrange for you.
If have,while old friends welcome to China and drop by our factory
Contact Information
Sandra
Phone: +86-18839779312\
Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co.,LTD
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
