| Prod Model: |
cast iron ingot mold |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Iron |
| Size: |
as Per Drawing |
| Shape: |
Round,Flat,Plum |
| Max Weight: |
50 Tons |
| Type: |
Steel-Making Equipment |
| Certification: |
ISO |
Product Description

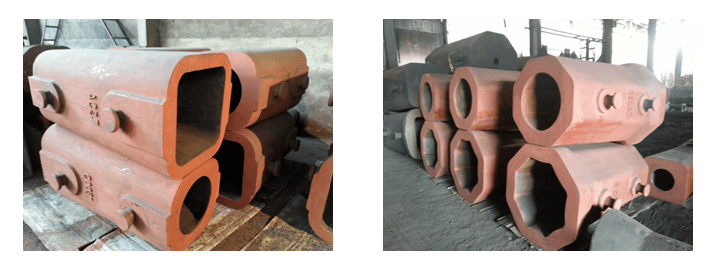

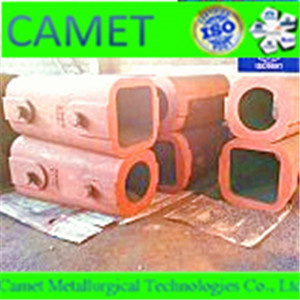

Spheroidal graphite cast iron ingot mold
DescriptionWe export cast iron ingot mould in various sizes and capacity made of ductile cast iron and vermicular cast iron. Resistant to cracks craze and distortion, our ingot mould has a long working life while low consumption, which meets the needs of heavy industry. These castings are highly durable and manufactured in compliance with the industry norms. Our castings are finished from all sides and provide excellent flexibility. We can also make these moulds in specific sizes and specifications to meet requirements of different application areas.
Specification
| Material | Max Weight (tons) | Shape |
| Grey Iron | 48 | Round, Square, Rectangular, Polygon |
| Ductile Iron | 30 |
Material
| Material | Code | C | Si | Mn | P≤ | S≤ | Mg | RE | ∑A≤ |
| Blast Furnace | Grey Iron | GHT1 | 4.10-4.90 | 0.40-1.20 | 0.40-1.00 | 0.1 | 0.05 | ~ | ~ | 0.3 |
| 3.80-4.90 | 0.40-1.20 | 0.40-1.20 | 0.15 | 0.07 | ~ | ~ | ~ |
| Rare Grey Iron | GHT2 | 3.80-4.90 | 0.40-1.20 | 0.40-1.00 | 0.1 | 0.05 | ~ | 0.01-0.03 | 0.3 |
| Ductile Iron | GQT | 3.60-4.70 | 0.80-1.80 | 0.40-1.00 | 0.1 | 0.03 | 0.02-0.06 | 0.01-0.04 | 0.3 |
| Material | Code | C | Si | Mn | P≤ | S≤ | Mg | RE | ∑A≤ |
| Cupola Furnace | Grey Iron | CHT1 | 3.30-3.90 | 1.20-1.80 | 0.60-1.20 | 0.15 | 0.1 | ~ | ~ | 0.3 |
| CHT2 | 3.40-4.10 | 1.10-1.80 | 0.40-1.00 | 0.15 | 0.1 | ~ | ~ | 0.3 |
| Ductile Iron | CQT | 3.40-4.00 | 2.20-3.00 | 0.20-0.80 | 0.1 | 0.03 | 0.03-0.08 | ≤0.03 | 0.3 |
Material: ductile cast iron/vermicular cast iron.
Cross section: round/square/flat/polygonal/plate.
Inner wall: convex/concave/plate/wave.
Size and weight: outer, inner size and thickness of ingot.
Mould customized as per client's drawings.
Depending on the excellent leadership, stable and professional employees, perfect management system and rapidly developing business, Camet Metallurgical Technologies Co., Ltd. Has developed into the one of the Chinese professional providers destined for offering cost-effective products and value added trading service in the field of metallurgical engineering. We are looking forward to establishing a win-win situation between you and Camet.
We have been supplied to more than 40 steel factories from USA, Mexico, Brazil, Argentina, Thailand, India, UK, Italy, Russia, Turkey, Kenya, Kuwait, such as Mittal, V&M, US steel, Corus Euro, etc. We have achieved excellent reputation from our customers.
Camet Metallurgical Technologies Co., Ltd. Has already certificated under ISO9001: 2000 quality control system since 2006, at the same time, recorded in DUNS global credit standing system (DUNS No.: 52794-3626). We will do our best to build an effective bridge between you and China under the condition of global trade integration.
