| Prod Model: |
WH-VI-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accessories: |
Coils,Foot Pedal,Operating Instructions |
| Superiority: |
Surface Hardening,Through Heating Forging |
| Features: |
Save Energy,Heating Fast,Safe and Reliable |
| Color: |
Blue/White (Customized) |
| Market: |
Europe,South America,Asia,Africa,etc |
| Export Countries: |
All Over The World |
| Service: |
The Whole Life |
| Note: |
Machine Can Be Made as You Request |
| Install: |
Install Video,Sketch Are Available |
| Engineer: |
Enginner Overseas Avaiable |
| Forging Forming Method: |
Induction Forging |
Product Description

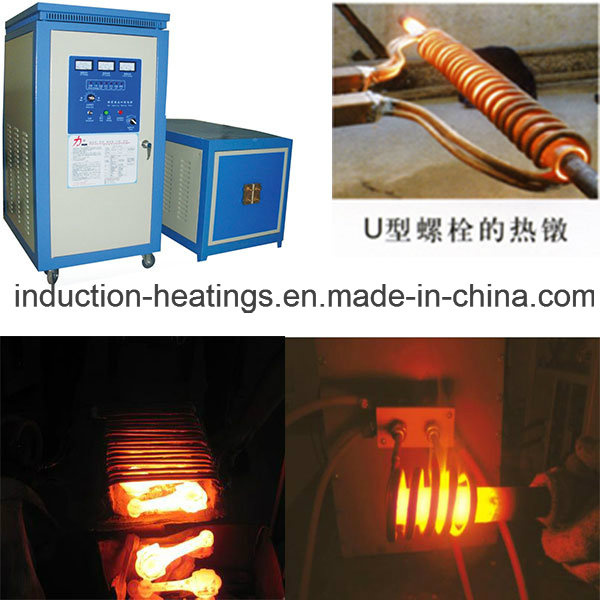

Steel Flat Bar Induction Forging Machine WH-VI-80KW
Application of Steel Flat Bar Induction Forging Machine:
1. Metal Hot Forming, Hot Forging, Hot Upsetting, Hot Pressing
Standard components hot forging, bolts & nuts hot forging, fasteners hot forming, automobile and motorcycle parts hot pressing, metallic tools hot forming.
2. Heat Penetration
Bar materials hot forging, round steels forge heating, square steels hot forging, copper bar hot punching,
3. Metals Continues Hot Forging
Hot forging of embryo gear parts, Gears hot forging, axle shaft hot forging, connecting rod continues hot forging, Bearings precision forging
4. Heat distortion
Pipes Heat distortion, pipe bending, stainless pipe Heat distortion, copper rod Heat distortion, steel billets heat distortion, steel pipe heat bending
5. Hot Rolling Heating
Steel rod hot rolling, steel billet hot rolling, copper rod hot rolling, square steels hot rolling, bar hot rolling, hot coating
6. Other forge heating applications
Such as hot extrusion, hot squeezing, partial heating, heating before hot cutting, hot fitting, thermal refining
magnetic hot forging induction forging system
Other Application:
Heat Treatment like annealing, normalizing, quenching, tempering.
1. Various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Electric tools, such as gear and axes.
4. Machine tools, such as lathe deck and guide rail.
5. Various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7. Other metal products.
hot forging equipment induction forging power supply
Technical Parameer:
| Max out power | 80kw | Working voltage range(AC) | 342V-430V |
| Max input current | 130A | Oscillation frequency | 10-35KHZ |
| Cooling water flow(host) | 28L/min(0.1mpa) | Cooling water flow(transformer) | 20L/min(0.1mpa) |
| Size of host(mm) | 650×520×1100mm3 | Size of transformer(mm) | 500×800×580mm3 |
| Host weight | 80±5%kg | Transformer weight | 77±5%kg |
| Cooling water flow | 0.1-0.3Mpa | Temperature protection | 50ºC |
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
