Prod Model: |
WH-VI-160 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Accessories: |
Coils, Foot Pedal, Operating Instructions |
After Sale Service: |
Provide Long-Terms Technical Support |
Service: |
The Whole Life |
Install: |
Install Video, Sketch Are Available |
Engineer: |
Enginner Overseas Avaiable |
Manufacture: |
Zhengzhou Gou's |
Experience: |
More Than 10 Years Experience in Induction Heating |
Energy: |
Electirc |
Energy Saving: |
15%~30% |
Circuit: |
IGBT Series Resonace Circuit |
Forging Forming Method: |
Induction Forging |
Product Description

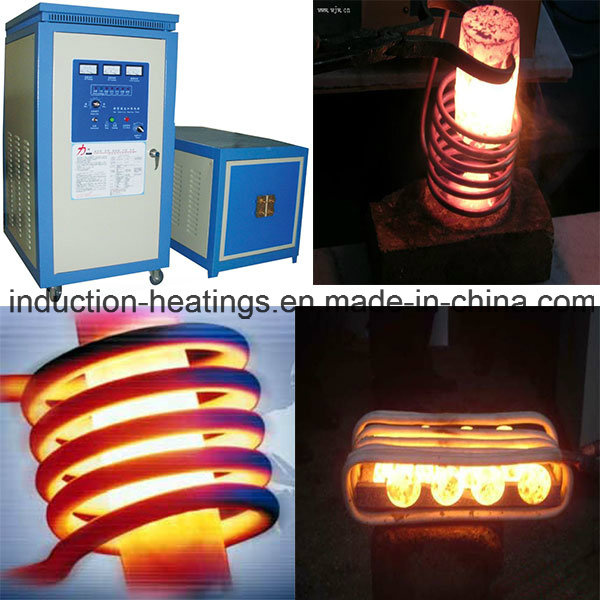

Steel Pipe Heating Induction Hot Forging Machine WH-VI-160KW
Technical Parameter of Steel Pipe Heating Machine:
Model | WH-VI-160 | Work power | Three phrase 380v/50-60hz |
Max input current | 220A | Working voltage range(AC) | 342-430V |
Max output power | 160kw | Oscillation frequency | 10-35Khz |
Efficiency | 100% | Continuous load rate | 100% |
Cooling water flow(host) | 29L/min(0.2mpa) | Cooling water flow(transformer) | 22L/min(0.2mpa) |
Cooling water pressure | 0.1-0.3mpa | Temperature protection | 50ºC |
Host Weight | 85kg±5% | Transformer Weight | 90kg±5% |
Size of host(mm) | 650*520*1100 | Size of transformer(mm) | 500*800*580 |
Color of host | Blue/White | Color of transformer | Blue/White |
Application of Steel Pipe Heating Machine:
Main Features of Steel Pipe Heating Machine:
1. high quality forging furnace induction heating machine can heat billet diameter from 25mm-80mm.
2. Maximum production rate 0.4-0.45T/Hour
3. high quality forging furnace induction heating machine can heat Carbon steel, Stainless steel, Alloy steel, Aluminum Brass and Others
4. Uniform heating temperature is good for mold of press machine.
5. Heating rapidly reduces oxide skin on billet
6. IGBT inversion technology & LC series circuit design achieve energy saving up to 15%-30% compared with SCR technology high quality forging furnace induction heating machine
7. Diode rectification technologies ensure high power factor -more than 0.95
8. Color and language printed according to customer's request.
I. quenching categories:
1. All kinds of gears, sprockets, shaft quenching;
2. a variety of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching.
3. All kinds of engine parts, gear parts hardened surface;
4 bed machine tool of machine tool industry guide of quenching (lathe, milling machine, planer, punch, etc.).
5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching.
II. forging categories:
1. All kinds of bolt, nut hot forging;
2 hot-rolled cobalt;
3 diameter of 50 within all parts through hot forging;
III.welding class:
1 piece of diamond drill bit composite welding;
2 of carbide blade, saw blade welding;
3. All kinds of cutter, drill head, drill pipe, coal drill bits, drill bits and other mine parts of the wind welding;
Contact Information:
Thea xing
Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co.,Ltd
Linkedin: Thea Li
website:www.zzlipai.cn
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
