Product Description
Supermarket Steel Shelf Storage Deck Panel Roll Forming

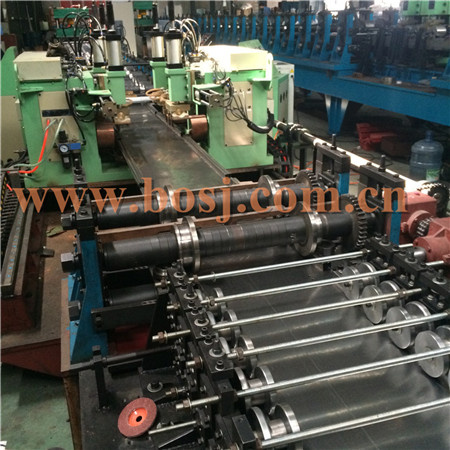

Equipment structureThe equipment is consisted with auto-de-coiler, guide frame, lever/feeding section, continuous bottom hole punching section, forming section, positioning and cutting section, collection table and electrical control system etc.Shelf forming machine is Jiangyin Bosj Technology Co.,Ltd. According to market demand by the collection year production cold rolling equipment experience independently designs a series or products.Product: Shelf column, Shelf crossbeam, Shelf stay rod, Shelf plywood etc.Equipment capacity:1, Equipment production capacity: width≤400mm, thickness of steel material: 1-2.5mm2, Production speed: 8-15m/min3, Total power: about 21.5kw
Structure of Heavy Duty Pallet Racking.Beams Horizontal bracingDiagonal bracingUprightsScrew, safe pinsProtectorTrays ,pallets ,or steel mesh plates Determinant of Heavy Duty Pallet Racking design1. The weight of your goods (trays, steel containers / boxes are included)2. The dimension of your goods together with pallets ( Length Width Height )3. The maximum height of your forklift and the available height of your warehouse4. The dimension of your forklift5. The fork direction6. The dimension of your warehouse7. The path of the transportation Advantages of Heavy Duty Pallet Racking .1.It is suitable to be used in factories, manufactures and warehouse2.Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm3.Perfect for storing categorized products in a neat and tidy way4.heavy-duty shelf set for warehouse shelving5.Strong structure6.Easy installation7.Customization is acceptable
Main Machine Parameter| NO. | Name | unit | parameter | remark |
1 | materials | type | | Mild steel,galvanized sheet | |
| Plate strength | Map | ≥350 | |
| Plate thickness | mm | 1.0~1.6 | |
| 2 | specification | mm |
See the pictures | |
| 3 | speed | m/min | 18 | |
| 4 | Material of the roller | | GCr15,Hardening treatment | |
| 5 | drive type | | Gear box | |
| 6 | power | kw | About 35.5 | |
| 7 | Electrical control system | | PCL frequency control | |
| 8 | Size(lengthXwidthXheight) | m | 20X4X3.9 | |
| Main Accessories |
| 1 | Decoiler | 1 set |
| 2 | Main Forming Machine | 1 set |
| 3 | Correction System | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | Auto-Cutting system | 1 set |
| 6 | PLC Control System | 1 set |
| 7 | Run Out Table | 1 set |
| Technical Datas roll forming machine |
| 1 | Material width | As your regards |
| 2 | The effective width | As your regards |
| 3 | The thickness of Coil | 1.0-3.0mm or more |
| 4 | Application | wall sheet and roof sheet |
| 5 | The overall dimensions | 6800mmX1500mmX1300mm |
| 6 | Total weight | 5 Tons |
| 7 | Main Power | 5.5 KW |
| 8 | Uncoiler | Manual Uncoiler |
| 9 | Inner diameter | 508--610mm |
| 10 | Outer diameter | 1200mm |
| 11 | Loading weight | 3T |
| 12 | Forming speed | 5-10m/min |
| 13 | Forming steps | 12 stations or more |
| 14 | Bracket | welded with 36 # I-steel |
| 15 | Material of Shafts | 45# steel with rough finished and then refined finished |
| 16 | Diameter of the Roll | 76mm |
| 17 | Material of Rolls |
high quality 45#steel coated with hard chromium 0.05
mm |
18 | Processing Technology | rough processing ---refined processing--Hard Chromium Plating. |
| 19 | Material of Rack |
complete welded structure of A3 steel plate 16mm
thickness |
20 | Transmission | Transmitted by the chain-bracket/ Gearbox T180 |
| 21 | Material of Chain | 45#steel with heat treatment of HRC45-50° |
| 22 | Holders under chain for lubricant | By the machine |
| 23 | Material of cutting blade | Cr12 with quenched treatment 60-62 |
| 24 | Cutting system | Hydraulic cutting |
| 25 | Voltage | 380V/50HZ/3phase
|
Delivery Of Machine
Jiangyin BOSJ S & T Co., Ltd(BOSJ)is a professional manufacturer of roll forming machines.
-------Cable tray roll forming machine
-------Floor panel roll forming machine
-------C channel roll forming machine
-------C&Z shape purlin interexchangeable roll forming machine
-------C shape purlin roll forming machine
-------Z shape purlin roll forming machine
-------Electric cabinet frame roll forming machine
-------Storage rack roll forming machine
-------Highway guardrail roll forming machine
------Steel silo forming machine
------CNC plasma cutting machine
------Steel Coil double-Covering Line
As a leading producer of many types of roll forming machines in China, BOSJ has won worldwide reputation in this field. Our products have broad markets in Southeast Asia, India, North and South America, Western Asia, Russia and Australia. We guarantee first-rate after-sale service and product quality. Establishing abiding friendship with any customers interested in roll forming machines is our goal. Sincerely, we invite you to pay a visit to our company.
BOSJ provides technical service and supports covering the whole process of purchasing and of our machinery products to assure you satisfactory machinery, timely resolutions or problem Service and technology of BOSJ.
We have had great testimonials from our customers all over the world. "Continously improving our product & service quality" is our mission to bring success to us and our customer
