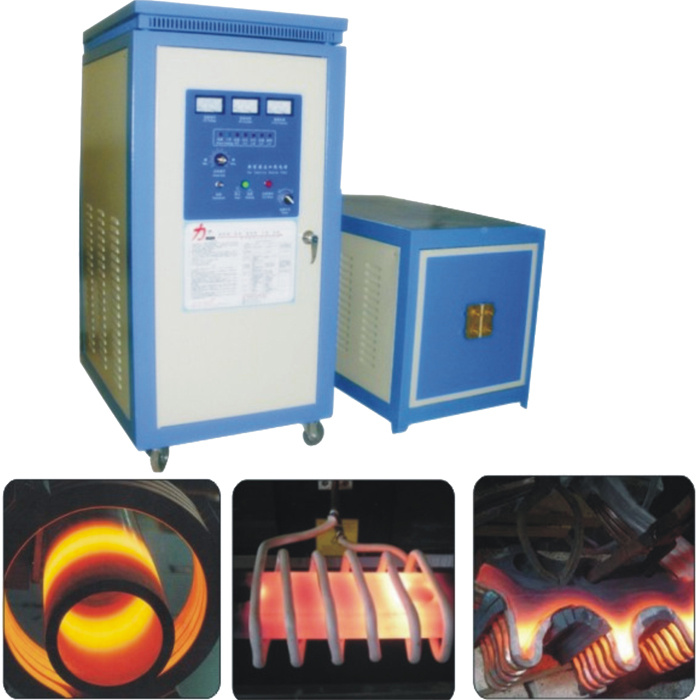

Supersonic Frequency 80kw Induction Heating Metal Forging Machine
| Price: |
US $ 8000-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
WH-VI-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Continuous Load Rate: |
1 |
| Voltage: |
380V |
| Temperatue Protection: |
50 Degree |
| Cooling Water Pressure: |
Over 0.05 MPa |
| Efficiency: |
100% |
| Warrent: |
One Year |
| Characteristic: |
Heating Workpiece Partly and Intergral |
| Install Difficult: |
Simple |
| After-Sales Service Provided: |
Engineers/Overseas Third-Party Support Available |
| Power: |
80kw |
| Type: |
Hot Forging |
| Forging Forming Method: |
Hot Forging |
Product Description
Product Description: Application show The whole set including:
1).One Generator , One Transformer; 2). Two induction coils; 3). One foot switch; 4). One Instruction Manual; 5). One Product certificate of quality; 6). One warranty card
Technical parameters:
model | WH-VI-80 |
| Worker power | Three phrase 380V/50Hz |
| Working voltage range (AC) | 342V~430V |
| Max input current | 130A |
| Max output power | 80KVA |
| Oscillation frequency | 10-35KHz |
| Continuous load rate | 100% |
| Cooling water pressure | 0.2-0.3mpa |
| Host weight | 93kg±5% |
| Transformer weight | 120kg±5% |
| Host dimensions(L*W*H)mm | 650*520*1100 |
| Transformer dimensions (L*W*H)mm | 500*800*580 |
| Temperature protection | 50 degrees
|
Main features: 1. IGBT inversion technology reduce operating cost
2. The absolute load merit rate design, can work continuously for 24 hours.
3. The digital phase locked realizes following frequency automatically
4. Design in modules It s installed facility and use conveniently Advantage: 1.power saving 30%, 20% than SCR frequency.
2.Stable performance, complete protection, no worries.
3.Heating speed oxide layer small deformation.
4.Less environmental pollution and noise pollution.
5.Adaptable and can be heated to a wide range of workpiece. Packaging & Shipping: 1.On the outside,packing fumigation wooden cases.
2.Inside part, packing plastic film.
3.Induction coil is packaged inside.
Our sevices:Certification: ISO9001
Technology: Solid state IGBT Inverter
Induction coils: Free design for customer
Warranty: One year free part replacement and lifelong technical service
After-sale service: Free replacement spares and can provide overseas support
Induction heating functions: Metal hardening,brazing,melting,annealing,melting and other heat treatment
Auxiliary device: Infrared thermometer,CNC quenching machine tool
Supply scope: Power unit+induction coils+spare parts
Cooling system: Industrial chiller,closed cooling tower,water pump,water wire(optional)
Customer preparation: Water pump,water tank,or industrial chiller,copper wire,soft water pipe
Cooling water pressure: 0.1-0.3MPa
Power factor: >0.95
Matching device: CNC hardening tool, cooling water device,automatic loading device,adjust tooling
Additional functions: Heating time 0.1-99.9 s Retaining time 0.1-99.9 s
Features: Save energy,save electric bill,heating fast,safe and reliable,fast delivery,competitive price,free design,ODM support,manufacturer,exporter,excellent supplier,professional.
Factory InformationFactory Size (Sq.meters): 1,000-3,000 square meters
Factory Location: Zhengzhou suburbs, Henan, China
No. of Production Lines: 2
Number of R&D Staff: 11 - 20 People
Number of QC Staff: 5 - 10 People
Contract Manufacturing: OEM Service Offered Design Service Offered Buyer Label Offered
FAQ:Why Choose Us
1. over 15 years eperience in induction heating field
2. heating furnace is safety and reliability, long life
3. our heating equipment export to Italy, Mexico ,Turkey, Slovakia, Pakistan, Iran,Vietnam,India, Malaysia,Brazil ,Indonesia,South Africa,etc. And winning great popularity
4. one year warranty and life-time technology support
5. fast, timely delivery & reliable after-sales service
6. spare parts & tools delivered with harvester for daily maintenance
7. customers & quality first.Contact us: Mobile phone: +86 18937170169
Website:http://www.inductionheating.com.cn
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
