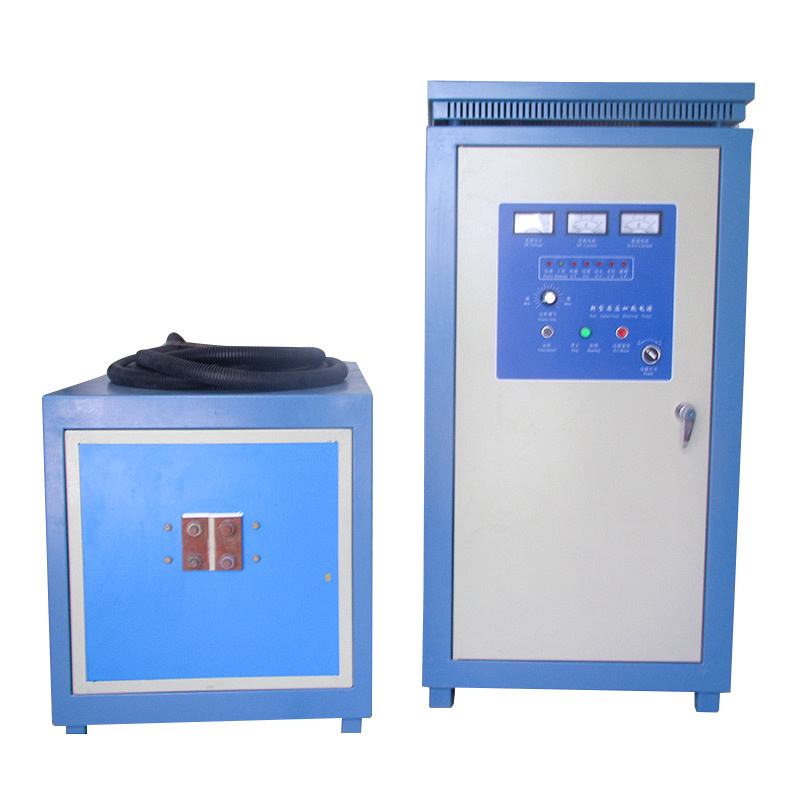

Supersonic Frequency Induction Heating Sheaper Forging Maachine

Supersonic Frequency Induction Heating Sheaper Forging Maachine
Price: US $ 8000-10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: WH-VI-160
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue/White
Worl Power: Three Phase380V/50~60Hz
Max Input Current: 220A
Oscillation Frequency: 10~40kHz
Efficiency: 100%
Continuous Load Rate: 100%
Cooling Water Pressure: 0.1-0.3MPa
Name: Siemens IGBT Hf Induction Heating for Forging
Temperature Protection: 50 Degrees
Marketing: All Over The World
Type: Hot Forging

Product Description


Supersonic frequency induction heating sheaper forging maachine


Product Description
HF Induction Heating for forging features :

1, good energy efficient: high-frequency transistor can save more than 2 / 3than power;
2, special light: only 16-40kg weight;
3, low maintenance cost: no fragile, expensive tubes;
4, special security, no pressure, eliminating the high risk of electric shock;
5, high reliability: modular, integrated, high reliability assurance;
6, simple installation : just connect the power and water, and 10 minutes to complete.;
7, easy operation :a few minutes to learn.


Control Panel of WH-VI-80 induction forging machine




induction heating machine for forging features usage

: High frequency induction heating equipment is mainly used for hardening,forging,brazing ,annealing and melting (small scale melting)


Forging, rolling class
Power frequency 2-35kHz or so, more than through the bar so hot φ100 ... ... ... ...
1, plate heating, bending and forming.
2, standard parts, fasteners through the hot forming.
3, the hardware through heat, such as pliers, wrenches and other heat through hot forming.
4, taper shank drill rod extrusion prospecting.
5, the pipe through the hot forming, such as bends and so on.
6, metal heat annealing. Such as: brass, steel stretching, bending, smashing head; wire, heating wire nail; stainless steel annealed, rose type.
7, rear axle and hot charging, rotor, bearings, gears and other parts of the thermal loading;




other models of induction heating machine for  forging :


Model

Input power

Input voltage

Oscillation frequency

(Host )Volume
mm3

efficiency

Particular recommended

WH-VI-30

30KW

380V 50-60HZ

30-60KHZ

580*280*510

90%

Drill rod heated

WH-VI-40

40KW

380V 50-60HZ

30-60 KHZ

460*360*630

90%

Small quenching

WH-VI-50

50KW

380V 50-60HZ

40-60 KHZ

590*450*780

90%

Standard quenching

WH-VI-60

60KW

380V 50-60HZ

20-60 KHZ

590*450*780

90%

Nut forging

WH-VI-80

80KW

380V 50-60HZ

20-60 KHZ

650*520*1100

100%

Gear quenching

WH-VI-120

120KW

380V 50-60HZ

10-60 KHZ

650*520*1100

100%

Camshaft forging

WH-VI-160

160KW

380V 50-60HZ

10-35 KHZ

650*520*1100

100%

600gear quenching








Packaging & Shipping

  induction heating for forging package and service :

1.Fumigation/Standard/customized wooden case;

2.On the outside,packing fumigation wooden cases for induction heating machine, generator and

transformer packed apart;

3.Inside part, packing plastic film and foam in case of friction dampness and shake;

4.Components: induction coil, foot switch, installation manual,packaging in plastic film, put

in the wooden cases;

5.Induction heating machine can be transported by ship, by air and by train;




Company Information

Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co. LTD. is located in National economic technology and development zone, Zhengzhou 450016, Henan, China. South to Xinzheng international airport, East to Zhengzhou high speed railway station, west to Peking, HK, Macao expressway. The geographical position is very superior.
Our company is committed to electromagnetic induction heating equipment  R&D, production, marketing and service. We uphold "the unity and efficient, collaborative, practical, innovative "business ideas, "Create value for customers" as our service concept.
Main products:
1.High frequency WH-VI Series induction heating machine,
2.Medium frequency GS-ZP series induction heating furnace,
3.Induction melting furnace, GS-VI Series
4.CNC quenching machine tool,LP-SK Series
5.Induction hardening machine,
6.Induction forging machine,
7.Induction brazing machine,
8.Induction annealing machine,
9.And induction heating production line equipment.
Exporting Countries:
 So far, LIPAI induction heating equipment has been exported to USA,Finland,Denmark,Poland,Portugal,Russia,Ukraine,Australia,New Zealand,Malaysia,Indonesia,Vietnam, India, Iran,Iraq,Uzbekistan, Kazakhstan,Turkey, Azerbaijan, Bulgaria, Macedonia, Brazil,Mexico,Chile, Argentina,,Ecuador, Algeria, Morocco, etc. other countries and regions.
We will be more efforts, more active, increasing promotion of products in the international market, make induction heating technology better do a due contribution to the development of human industry.






FAQ
Heating speed:

WH-VI-30:1.2-1.5kg/minute ;
WH-VI-50:2.5-3.0kg/minute;
WH-VI-80:4.5-5.2kg/minute;
WH-VI-120:5.5-6.3kg/minute;
WH-VI-160:6.8-7.5kg/minute.



contact us
Phone:+86-371-18937170169



Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.

Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.

A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
