| Price: | US $ 8000-10000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | WH-VI-120 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

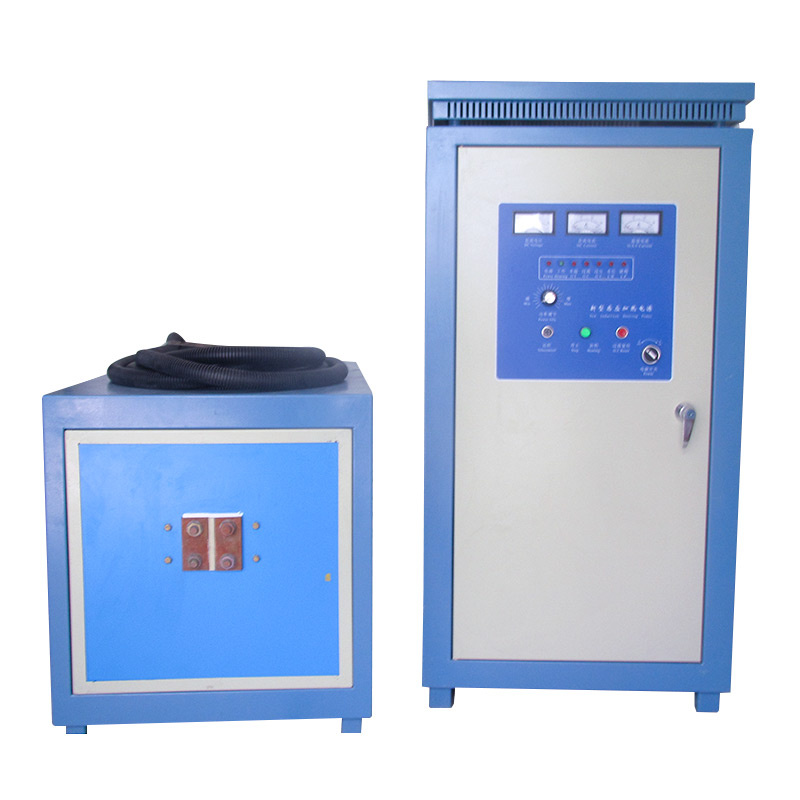

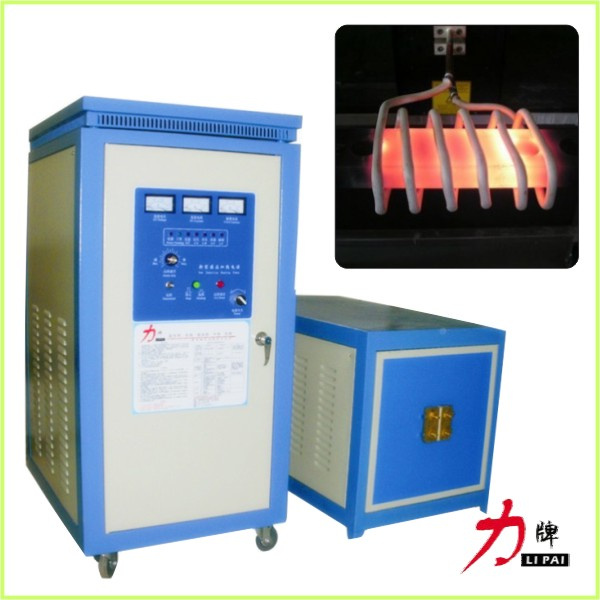

| Name: | High Frequency Induction Heating Forging Machine |
| Color: | Blue/White |
| Efficiency: | 100% |
| Continuous Load Rate: | 100% |
| Max Input Current: | 165A |
| Market: | Europe, South America, Asia, Africa, etc |
| Export Countries: | All Over The World |
| Accessories: | Coils, Foot Pedal, Operating Insturctions |
| After-Sales Service Provided: | Engineers/Overseas Third-Party Support Available |
| Nature Of Company: | Manufacturer |
| Type: | Hot Forging |
| Forging Forming Method: | Hot Forging |
supersonic frequency induction heating generator product features:
1, energy efficient
Up to 98% thermal efficiency under the same conditions, can save electricity 75% compared with resistive heating method or more, shorter warming time for 6min.
2, reliable operation
Intelligent multi-loop control system and perfect protection system to ensure long-term safe and reliable operation of the equipment.
3, lower production costs
Heating part of the structure uses cables, heating cable itself does not generate heat, long service life. Avoid regular maintenance and periodic replacement of needed heating coil in contrast to resistive heating , almost have no maintenance costs in after-sale.
4, improve the working environment
HaveL little heat dissipation in the heating part, the surface can touch , improve the working environment.
5, intelligent multi-temperature control
use liquid crystal Victoria Ellis electromagnetic energy heating devices ,so it can display real-time temperature and set temperature range.Built-in chip can intelligently control heating rate and output power according to the actual situation of flexible adjustment of raw plant.
6, the high temperature heating
Resistive heating power density is low, heat quickly to the outer space, and generally difficult heated to above 400 °C. But in The energy-efficient way, which has reactive power density, can be heated to temperatures above 600 °C.
supersonic frequency induction heating generator application:
1.Auto parts:Piston Rod, Gear, CAM, Brake Shoe, Transmission Rod, Steering Wheel quenching etc.
2.Motor Parts:the shaft hardening for rotor, the degrease of silicon steel plate for rotor, epoxy powder coating for rotor etc.
3.Steel: the heating process for stainless steel tube, cramp iron, epoxy powder coating for steel tube, the hardening for the high tensile cramp iron, the heat-fusion for elevator pulley and shaft, the welding of steel tube, tube bending etc.
4.Hardware: the pre-forging for screws and nuts, silver soldering for lathe tool, the soldering for air gauge, the temper of pontil, the hardening of surface for high tensile screw, epoxy powder coating for locking nut etc.
The parameter of WH-VI-60:
Model | WH-VI-120 |
Worker power | Three phase 380V/50Hz |
Working voltage range (AC) | 342V~430V |
Max input current | 165A |
Max output power | 120KVA |
Oscillation frequency | 10~35KHz |
Continuous load rate | 100% |
Cooling water pressure | 0.1-0.3mpa |
Host weight | 65kg±5% |
Transformer weight | 50kg±5% |
Host dimensions(L*W*H)mm | 590*450*780 |
Transformer dimensions (L*W*H)mm | 420*355*450 |
Particular recommended | Simple quench nut forging |
Temperature protection | 50 degrees |
