| Prod Model: |
Swivel-Ring Flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swivel-Ring Flange: |
B16.5, API 6A, API 17D |
| Standard: |
Ks,API |
| Type: |
Welding Flange |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
Product Description

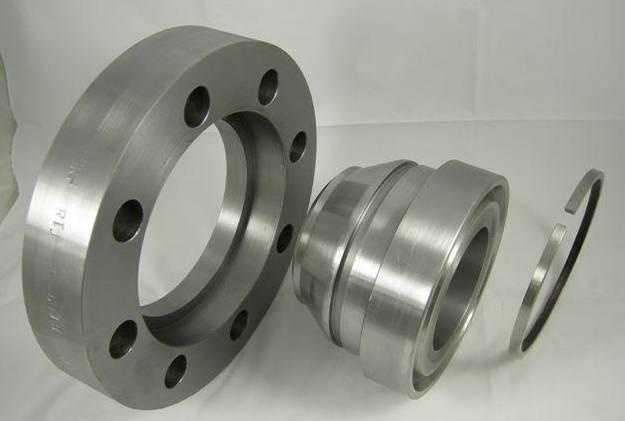

Swivel-Ring Flange sets consist of a 360°rotation outer ring and a hub, the design make it easy to align the bolt holes when attaching to a mating standard flange. For subsea applications, this capability is important when align and make up the flange connections; it will save much time for installation, save time means save money. Swivel-Ring Flanges can be designed for most size and pressure rating as per ASME B16.5, API 6A, API 17D, MSS SP-44 or Norsok L-005.
Swivel-Ring Flanges raw materials are available in ASTM A105, A694 F52 to F65, A350 LF2, AISI 4130, and A182 F51 & F53. Also we can supply flanges with other materials such as A694 F70, AISI 8630
Document: MTC Comply with EN10204 3.1 can be provided prior to shipment
Material | stainless steel :A 182 F 304/304L/316/316L/321/347, Duplex F51/F53/F44/F55/F60/F61
Alloy steel :STM A694/ A694M F42/F46/F52/F56/F60/F70,A182 F5,F9,F11
Carbon steel:ASTM A 105, ST37.2 A 350 LF1, LF2, LF3,API 6A AISI 4130 |
| Standard | ASTM/ASME/ANSIB16.5, B16.47, ASME/ANSIB16.48, JIS/KS (5K, 10K, 16K, 20K), DIN2633, DIN2634, DIN2635,EN1092,BS4504,AWWA C206,API 6A ,Customized drawings welcomed |
| Size | 1/2" - 120 " (DN15-DN3000) |
| Pressure | Class150-Class2500 JIS 5k-30k DIN 6bar-40bar |
| Type | slip on flange, Weld Neck Flange Threaded Flange Blind Flange, Orifice Flange socket weld flange, Spacer Ring, Paddle, Spectacle Blind Flange |
| Surface Treatment | Surface galvanized, antirust coating, Epoxy & FBE Coating,protected with plastic caps |
| Packing | Pallet/Wooden case(Fumigation free) |
| Certificate | ISO9001,EN10204 3.1 MTC |
| Quality control | In house and third party |
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
