| Prod Model: |
YX6-178 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

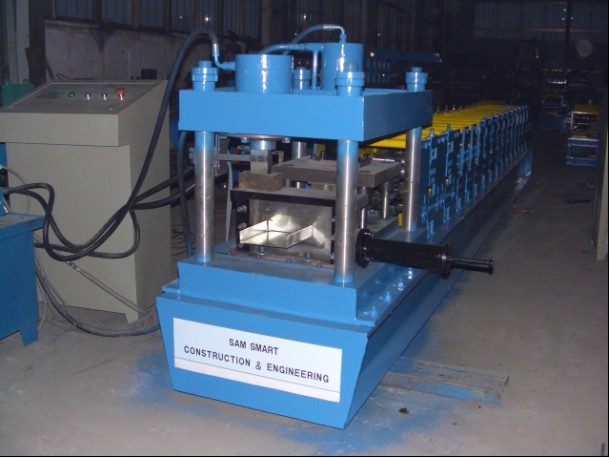

U shaped purlin roll forming has features of low noise and high efficiency, automatic length-fixed forming and cutting.
Detailed Description
1. Rolling product size: 6-178 mm
2. Working speed: 2m15m/min(not contain punching and cutting time)
3. Roller station: 18 stations 7 stations are checking level
4. Material of roller: 12# forge steel finish machining, and quenching until to HRC58-62, nigrescence processing on surface)
5. Material of main shaft: 45# steel finish machining and then slack quench processing, DIA: 105mm
6. Main power: 37Kw
7. Electrical hydraulic station motor power: 5.5Kw
8. Hydraulic station pressure: 20Mpa
9. Electrical control system: Use industry computer PLC frequency conversion control, transducer use Japan Panasonic brand, encoder use Omron brand
10. Core shape size: 10500× 1200× 1000mm
11. Material of cutter: Cr12MOV
12. Rolling thickness: 6mm
13. Rolling length: 10m +-2mm
14. Driving mode: Two lins link of 1.5 inch
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
