Wet Beneficiation Ball Mill
| Price: |
US $ 5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
900*1800-3200*4500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ball Mill Body Material: |
Q235 |
| Ball Mill Liner: |
High Manganese Liner,Rubber Liner,Ceramic Liner,Et |
| Ball Mill Price: |
Negotiate |
| Ball Mill Colour: |
as Your Request |
| Ball Mill Input Size: |
Below 25mm |
| Output Size: |
0.4-0.074mm |
| Grinding Balls: |
High Chrome,Medium Chrome,Low Chrome |
| Installation: |
Engineer Guide |
| Drawing: |
Supply Foundation Drawing |
| Ball Mill Warranty: |
One Year Except Weary Parts |
| Type: |
Ball Mill |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Motor Power: |
According to Models |
| Materials: |
Mineral Ore |
Product Description

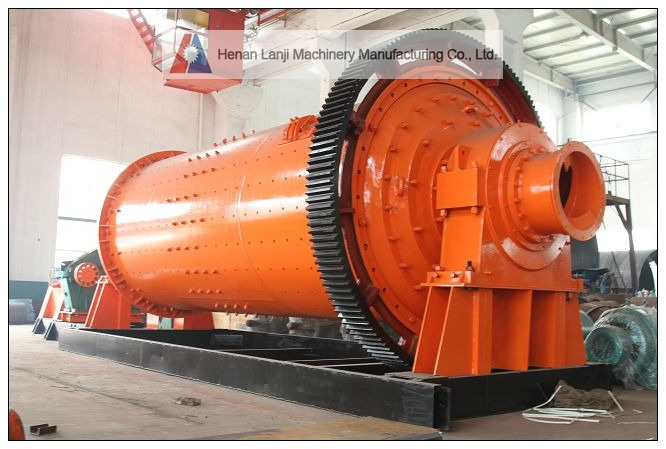

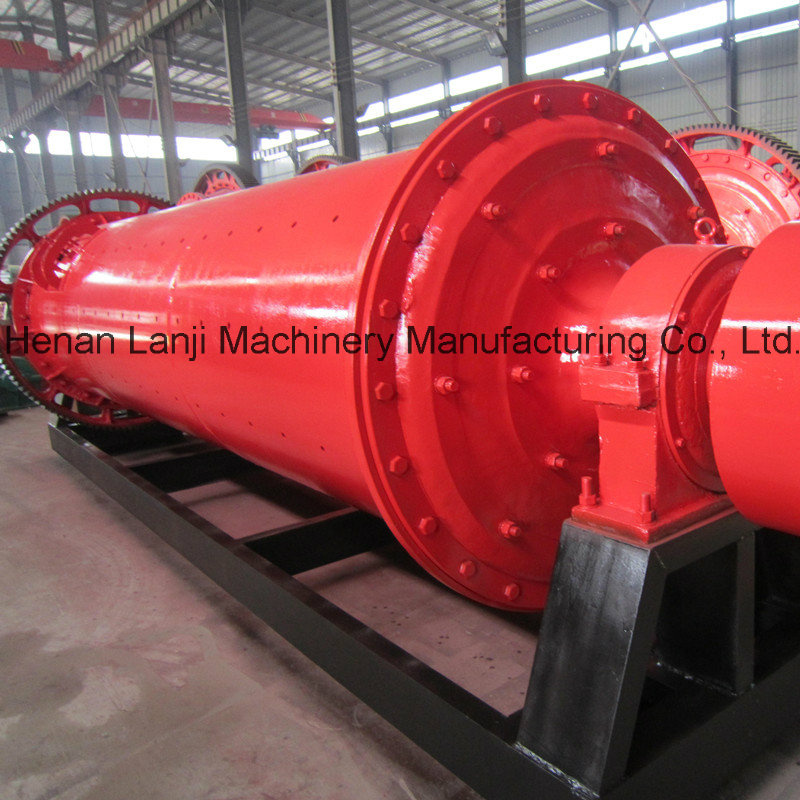

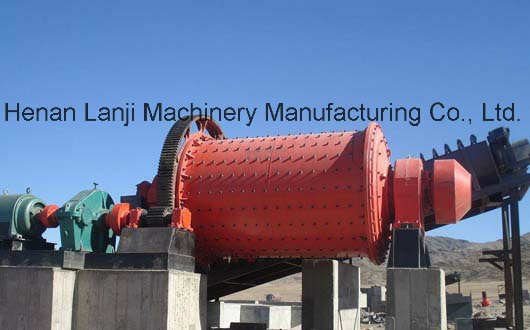

Wet Beneficiation Ball Mill:Ball mill application:Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. gold ball mill is popular for gold ore mining and extraction plant. gold ball mill is mainly wet overflow type in the gold ore beneficiation plant.

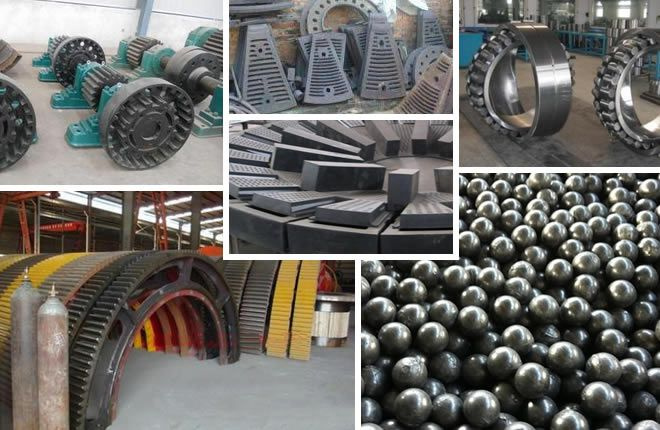

Ball mill strucuture:Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.
The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably. we are able to produce ball mill as per your actucal requirement .
Ball mill Working Principle:The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.ball mill technical parameters:| Model | Speed (r/min) | Max. weight of balls (t) | Input size (mm) | Output size (mm) | power (kw) | Capacity (t/h) | Weight(t) |
| Φ900×1800 | 37 | 1.8 | ≤15 | 0.075-0.89 | 15 | 0.5-2 | 3.4 |
| Φ900×2100 | 37 | 2.3 | ≤15 | 0.075-0.4 | 18.5 | 0.4-2 | 3.9 |
| Φ900×3000 | 35 | 3.85 | ≤25 | 0.075-0.4 | 30 | 1.1-2.5 | 7.78 |
| Φ1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.4 | 30 | 1.3-3.2 | 8.65 |
| Φ1200×2800 | 35 | 5.4 | ≤25 | 0.075-0.4 | 37 | 1.5-3.7 | 10.02 |
| Φ1200×4500 | 35 | 8.6 | ≤25 | 0.075-0.4 | 45 | 2.7-6.79 | 14 |
| Φ1500×3000 | 29 | 9 | ≤25 | 0.047-0.4 | 75 | 3.3-8.2 | 14.12 |
| Φ1500×3500 | 29 | 10.5 | ≤25 | 0.047-0.4 | 75 | 3.3-8.5 | 15.64 |
| Φ1500×4500 | 29 | 13.5 | ≤25 | 0.047-0.4 | 90 | 4.5-12 | 20 |
| Φ1500×5700 | 29 | 17 | ≤25 | 0.047-0.4 | 110 | 2.6-14 | 21.5 |
| Φ1830×3000 | 24 | 13.5 | ≤25 | 0.047-0.4 | 135 | 4-15 | 28 |
| Φ1830×3600 | 24 | 14 | ≤25 | 0.047-0.4 | 135 | 4-15 | 29 |
| Φ1830×4500 | 24 | 20 | ≤25 | 0.047-0.4 | 155 | 4-19 | 32 |
| Φ1830×7000 | 24 | 31.5 | ≤25 | 0.047-0.4 | 210 | 6-22 | 36.5 |
| Φ2100×3000 | 22 | 18 | ≤25 | 0.047-0.4 | 210 | 6.4-28 | 40.79 |
| Φ2100x3600 | 22 | 20 | ≤25 | 0.047-0.4 | 210 | 7-28 | 42 |
| Φ2100×4000 | 22 | 21.5 | ≤25 | 0.047-0.4 | 210 | 7.6-28 | 43.45 |
| Φ2200×3600 | 21.7 | 25 | ≤25 | 0.047-0.4 | 245 | 5.2-32 | 44 |
| Φ2200×7000 | 21.7 | 46 | ≤25 | 0.047-0.4 | 380 | 15-38 | 63 |
| Φ2400×3600 | 21 | 28 | ≤25 | 0.047-0.4 | 320 | 8-60 | 47 |
| Φ2400×4500 | 21 | 35 | ≤25 | 0.047-0.4 | 380 | 8.5-60 | 70.5 |
| Φ2700×3600 | 20.7 | 40 | ≤25 | 0.047-0.4 | 400 | 12-80 | 75.5 |
| Φ2700×4500 | 20.7 | 48 | ≤25 | 0.047-0.4 | 430 | 12-90 | 102 |
| Φ3200×4000 | 18 | 65 | ≤25 | 0.047-0.4 | 800 | 30-180 | 137 |
ball mill machine and various types and all models, including cement ball mill, tube type ball mill, cone ball mill, ceramics ball mill, overflow ball mill, grid ball mill, energy-saving ball mill, etc. Fote fully meets the diverse needs of users with various models.
Henan LanJi Machinery Manufacturing Co., Ltd. is a jiont-stock mining machinery manufacturing enterprises integrated in scientific research, production and marketing. It is located at the Hig-Tech development Zone Zhengzhou, China with an area of 80 thousand square meters. Equipments are more than 200 pieces, including large and medium sized metal processing, riveting and installing equipments. Engineers are more than 50 persons.
The leading products of our company include: Beneficiation equipment, crushing equipment, sand making equipment, cement equipment, Aerated concrete block production line. Widely used in the industries of metallurgy, mining, railway, high-way, building materials, refactory, ceramic industry, etc. Complete set of ore beneficiation equipment include ball mill, crusher, magnetic separator, flotation machine, spiral classifier, rotary dryer, widely used to separate the non-ferrous metals such as iron ore, copper ore, gold ore, lead&zinc, manganese ore, molybdenum ore, etc. And the Non-metallic Minerals like fluorite, quartz, etc. Jaw crusher, impact crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor are widely used for the airport, railway, high-way, road, buliding, etc. Aerated concrete block has been one important part to the new buliding materials. We can provide program design, process flow design, standard and non-standard design for clients.
Our company has passed ISO9001-2008 quality certificate, the produce sell well to domestic and abroad, Such as South Asia, Russia, Central Asia, Africa, Middle-east, etc.
Our company's tenetis "Advanced technology, quality first, sincere service, reputation first". We can ensure our clients without worry after buying by one set of complete after-sales service and quality-tracking system.
We sincerely hope to cooperate with the clients from all over the world to achieving mutual benefits and promotion, ans touching our theory through cooperation!
