| Prod Model: |
JGH 60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jgh 60 |
| Forging Forming Method: |
Free Forging |
| Certification: |
RoHS |
Product Description

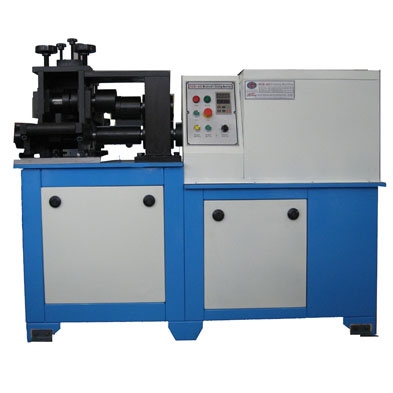

With continuous enlargement of markets for metalcrafts, people's appreciation for and their taste in the beautiful metal crafts have also been increasing and developing. The definitely-formed metal pieces once widely applied to processing the metal craft products can no longer meet people's need for house furnishing, furniture ornament and city beautification. Having noticed this situation, our company has, all by ourselves, devised and developed this peerless machine of JGH-60 Metal Craft Pattern-Roller. With the rollers, a wide variety of patterns and designs can be easily gained by rolling on the shaped metal stocks in definite sizes. With the metal crafts made of these processed stocks with the rolled patterns on, peoples aesthetical taste in the metal craft products will thus be sufficiently satisfied.
| ITEMS | TECHNICAL PARAMETERS |
Dimensions of the
Stocds to be Processed | Rotation Speed of The Main Shaft |
Processing
Capacities
(mm) | Flat Steel | 60×10 | 0~40 r/min
Note: Always chose and use the right
shaft speed in accordance with the sizes
of the stocks to be worked on.(See
Attachment 7 for the positive connection
between rotation speed of the main
shaft and frequency.) |
| Square Steel | 30×30 |
Rectangular
Steel Pipe | 100×50 |
| Round Steel | φ8 -φ20 |
Decelerator for Cycloidal
Pin-wheel | 380V \50HZ/Power of motor:7.5KW./ Synchronous
Speed of rotation:1500rpm./Output Rotation speed
of Main Shaft:35rpm./Gear Ratio:1:43. |
| Net Weight (kg) | 1050 | NOTE: Three sets of pattern-rolling
wheels are attached to your machine
(For flat steel, square steel and rectangular
pipe).Other rolling-wheels produced by
us for various patterns are available for
your option. |
| Gross Weight (kg) | 1260 |
| External dimension(mm)(L) | 1636×990×1330 |
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
