| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
1700kg |
| Brand Name: |
Zhongyuan |
| Control Mode: |
Mitsubishi PLC System |
| Motor: |
5.5kw X 2 |
| Certificate: |
CE, ISO |
| Operation Language: |
English or as Per Client`S Required |
| Capacity: |
10 Ton |
| Power: |
5.5X2kw |
| Voltage: |
AC380V/50Hz |
| Guarantee Time: |
First Year Free, Lifetime Services |
| Forging Forming Method: |
Steel Uncoil |
Product Description

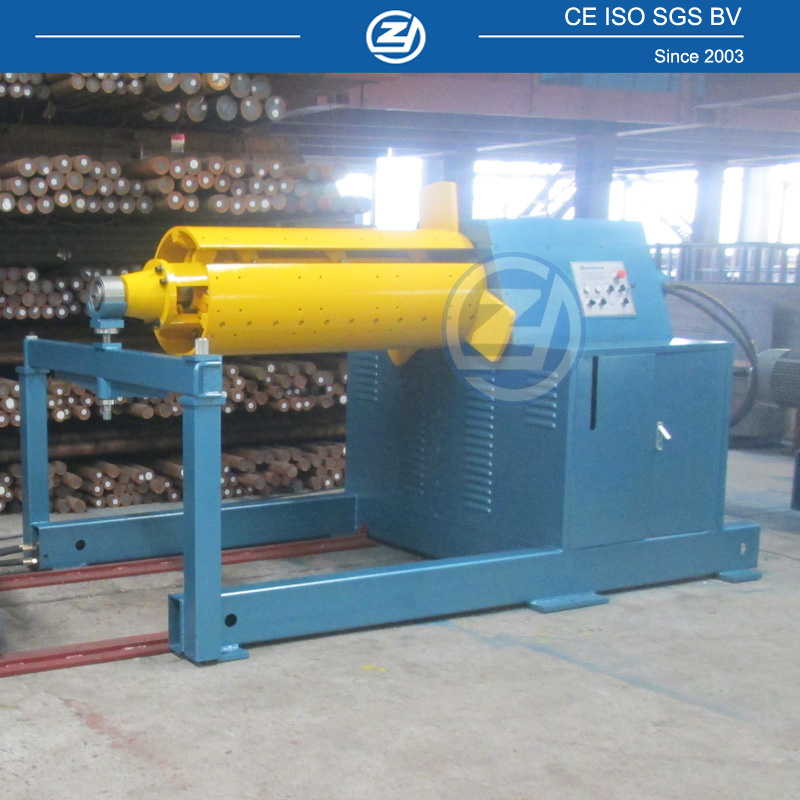

Hydraulic Uncoiler
Why choose this hydraulic decoiler?
1. Can be Customized
2. ISO, CE, SONCAP certificate
3.24 months warranty, 24 hours service, lifetime technical support
4. Design by senior R&D members who have 15 years experience in designing roll forming machine.
5. Electric elements: Mitsubishi PLC & transducer from Japan.
6. Technician can be sent to your factory to install the machine and train your workers
5T and 10T automatical hydraulic decoiler can be choosed here, coil car for option.
Deciler Technical Parameters:
Max loading capacity 5t or 10T
Suitable coil ID φ 508mm
Suitable material width (max. ) 1250mm
Suitable coil OD (max. ) φ 1000mm
Press arm yes
Motor power 5.5Kw X 2
Electric condition 380V/3Phase/ 50Hz
Decoiling type motor driving
Separate converter and screen yes
Coil car for option
| Power | 5.5x2 KW |
| Voltage | AC380V/50Hz |
| Weight | 1700kg |
| Loading capacity | 5ton or 10ton for option |
| size(without car) | 2000mm*1400mm*1200mm |
| Suitable coil ID: | 508mm |
| Suitable material width (max.) | 1250mm |
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
