Hydraulic Uncoiler with Coil Car
Price: |
US $ 18000-25000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Color: |
Made-to-Order |
Certificate: |
CE, ISO |
Brand Name: |
Zhongyuan |
Control Mode: |
Mitsubishi PLC & Converter |
Place Of Origin: |
China |
Forging Forming Method: |
Steel Uncoil |
Product Description

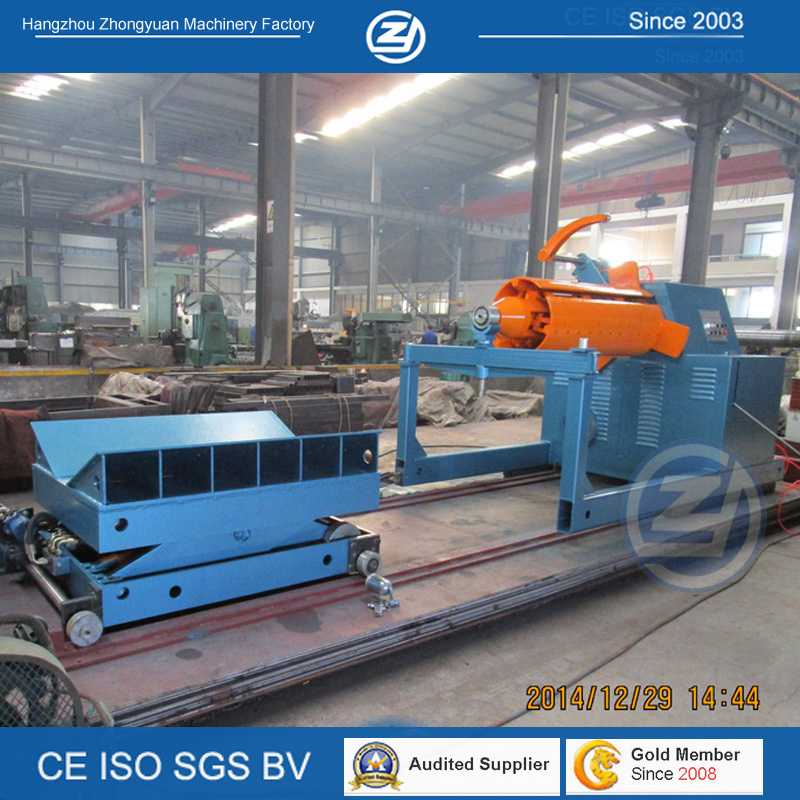

Hydraulic Uncoiler with Coil Car
Hydraulic decoiler with coil car
5T and 10T automatical hydraulic decoiler can be choosed here, coil car can be choosed.
Hydraulic decoiler with coil car
Technical Parameters:
Max loading capacity 5t or 10T
Suitable coil ID φ 508mm
Suitable material width (max. ) 1250mm
Suitable coil OD (max. ) φ 1000mm
Press arm yes
Motor power 5.5Kw X 2
Electric condition 380V/3Phase/ 50Hz
Decoiling type motor driving
Separate converter and screen yes
Coil car for option
Power | 5.5x2 KW |
Voltage | AC380V/50Hz |
Weight | 2000kg |
Loading capacity | 5ton, 10 ton for option |
size | 2800mm*1800mm*1600mm |
Suitable coil ID: | 508mm |
Suitable material width (max.) | 1250mm |
