| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, So |
| Machine Color: |
Made-to-Order |
| Brand Name: |
Zhongyuan |
| Control Mode: |
Mitsubishi PLC System |
| Main Motor: |
5.5X2 Kw |
| Operation Language: |
English or as Per Client`S Required |
| Capacity: |
10 Ton |
| Coil Car: |
Yes |
| Suitable Material Width (Max. ): |
1250mm |
| Weight: |
4 Ton |
| Forging Forming Method: |
Steel Uncoil |
Product Description

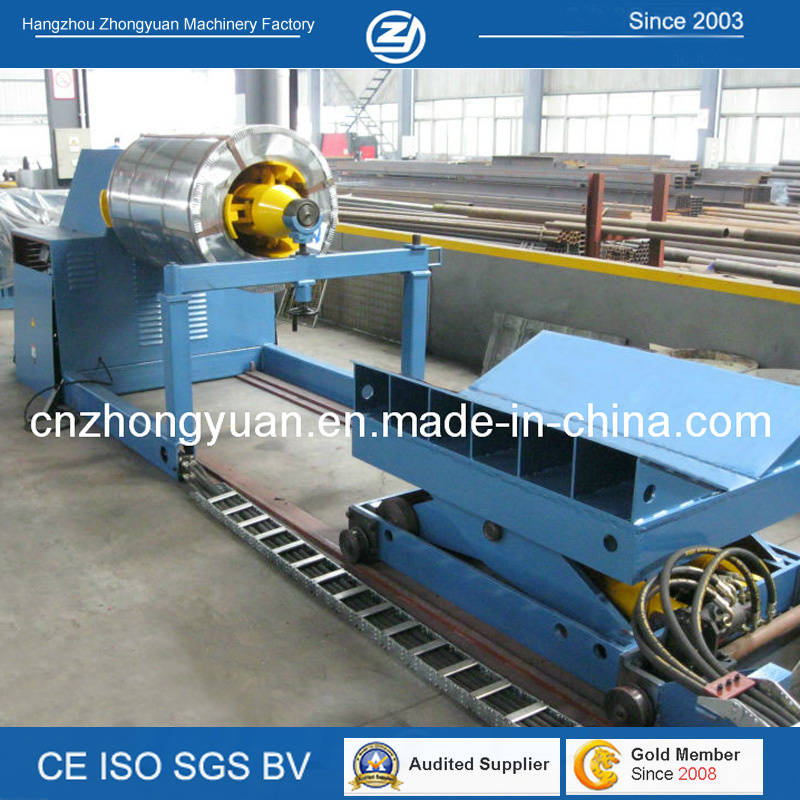

Hydraulic Uncoiler with Coil Car (10tons)
5T and 10T automatical hydraulic decoiler can be choosed here, coil car can be choosed.
Why choose this uncoiler?
1. Can be Customized
2. ISO, CE, SONCAP certificate
3.12 months warranty, 24 hours service, lifetime technical support
4. Design by senior R&D members who have 15 years experience in designing roll forming machine.
5. Electric elements: Mitsubishi PLC from Japan.
6. Well resisting active shaft: High grade No. 45 carbon wrought steel.
10. Precision: Shafts are tooled by grinding machine at least twice.
11. People originate: Introduced Mitsubishi PLC.
Technical Parameters for hydraulic decoiler,
1. Max loading capacity 5t or 10T
2. Suitable coil ID φ 508mm
3. Suitable material width (max. ) 1250mm
4. Suitable coil OD (max. ) φ 1000mm
5. Press arm yes
6. Motor power 5.5Kw X 2
7. Electric condition 380V/3Phase/ 50Hz
8. Decoiling type motor driving
9. Separate converter and screen yes
10. Coil car for option
| Power | 5.5x2 KW |
| Voltage | AC380V/50Hz |
| Weight | 4000kg |
| Loading capacity | 5ton or 10 ton |
| Size | about 6*1.6*1.7m (depends on final design) |
| Suitable coil ID: | 508mm |
| Suitable material width (max.) | 1250mm |
Please feel free to contact us.
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
