| Prod Model: |
DX720 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Floor Decking Roll Forming Machine |
| Use: |
Floor |
| Power(W): |
26kw |
| Voltage: |
380V or According to Customer Rquest |
| Dimension(L*W*H): |
9.5*1.5*1.4m |
| Weight: |
About 10 Tons |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Roller Station: |
24 |
| Machine Stand: |
400h |
| Shaft: |
90mm |
| Forging Forming Method: |
Mold Forging |
Product Description

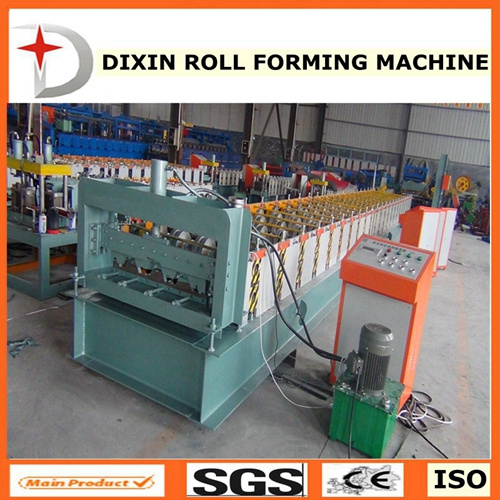

Floor Decking Roll Forming Machine
Main technical parameter:
1. Manual decoiler: manual expanding,passive uncoil
Inner Diameter:Φ460-520mm
Outer Diameter:Φ1400mm
2. Weight capacity of decoiler: 10T
3. Machine stand: 400H
4. Style: wallboard type with chain transmission
5. Diameter of shaft:90mm
6. Material of shaft: high-grade 45#steel
7. Chain: 20A
8. Motor power of forming machine: 11KW*2
9. Forming speed: 10-15m/min
10. Roll station: 26 stations
11. Material of roller: high-grade 45#steel
12. Surface of roller coated with chrome 0.05mm thickness
13. Motor of hydraulic station: 4KW
14. Hydraulic oil pump: bear pump CB-E314
15. Type of cutting: hydraulic cutting
16. Material of cutting blade: Cr12
17. Heat treatment of cutting blade:HRC58°-60°
18. Thickness of steel coil: 0.6-1.2mm(common use)
19. Tolerance of length: 10±2mm
20. Computer operating board adopts Touch screen
21. Voltage: 380V 3 phase 50HZ or up to you
technical parameter
manual decoiler |
manual expanding,passive uncoil
inner diameter 460-560mm
outer diameter1400mm |
weight capacity od decoiler | 10 tons |
| type of forming machine | wallboard type with chain transmission |
| diameter of shaft | 80 mm |
| material of shaft | high-grade 45 # steel |
| chain | 20A |
| motor power of forming machine | 11 KW*2 |
| forming speed | 10-15m/min |
| roll station | 24 stations |
| material of roller | high-grade 45#steel,coated with chrome 0.05 mm thickness |
| motor of hydraulic station | 3KW |
| hydraulic oil pump | CB-E314 |
| type of cutting | hydraulic cutting |
| material of cutting blade |
HRC58°-60° |
thickness of steel coil | 0.6-1.2mm |
| tolerance of length | 10±2mm |
| computer operating board | touch screen |
| voltage | 380 V 3 phase 50 HZ or up to you |
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
