75 C Channel Steel Stud Roll Forming Machine |
| Model Number: |
C80-300 C Shape Steel Purlin for Roof Roll Forming |
| Suitable Material: |
Hot Rolled Strip Steel, Q235 or Equivalent |
| Material Thickness: |
1.0-3.0mm |
| Material Width: |
175-465mm |
| Dimension: |
About 10.0*1.2*1.75 M (L*W*H) |
| Working Space: |
About 20.0*2.7m(L*W) |
| Roller: |
High Grade 45# Steel. Hard Chrome Plating, 0.05mm |
| Main Frame: |
400# Steel. More Stable and No Shaking. |
| Middle Plate: |
16mm. We Use Thicker Plates to Ensure Stability of |
| Forging Forming Method: |
Mold Forging |
Product Description

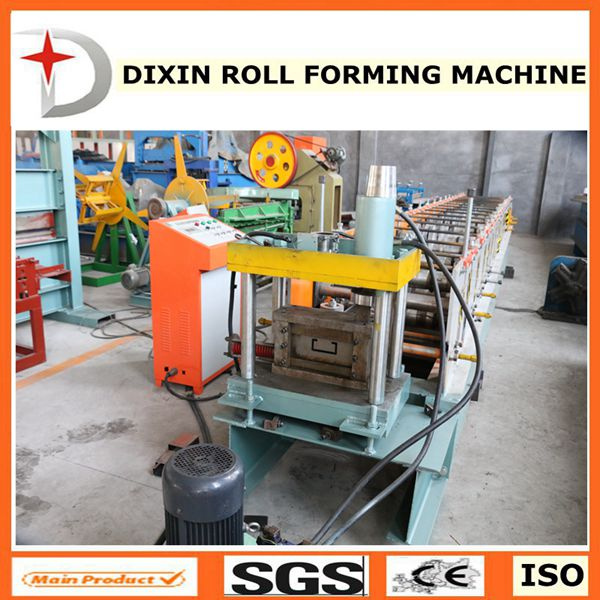

75 c channel steel stud roll forming machine
1.Summary:
Material: GI coil.
Thickness: 3 mm or more
Main motor power: 11kw.
Dimension: about 8000mm*800mm*1300mm.
Total weight: about 12 t.
2.Components
Manual decoiler ----- 1 unit
Feeding and flattening device ----- 1 unit
Roll forming machine ----- 1 unit
Hydraulic cutting device----- 1 unit
PLC control system ----- 1 unit
Hydraulic station ----- 1 unit
Run-out table ----- 1 unit
3.Working flow
Decoiling ----- feeding guide ----- flattening----- roll forming ----- cutting ----- running-out
4.Technical parameter
1) Decoiler
Decoiler: Manual Decoiler
Weight Capacity of Decoiler: Max 5T
2) Feeding and flattening device
Function: it is used to release the head of coil, then feed into roll forming machine, making the
coil straight and flat after decoiling.
Structure: total 7 rollers, upper are 3 rollers and lower are 4 rollers.
3) Roll forming machine
Forming station: 13 steps
Shaft diameter: 80mm
Shaft material: High grade 45# forged steel, Polished, heat treatment, quenched and coated with
0.05mm Chrome Surface
Machine Frame stand: welded with 36 # I-steel
Material of Rack: complete welded structure of A3 steel plate 18mm thickness
Roller material: GCr15 steel, quenched and heated process
Forming speed: 8-14m/ min
Transmission type: chain drive transmission(according to material thickness or gear box )
Material Of Chain: High Grade 45#, Heated and quenched HRC 45-50
Material Of Blade: Cr12 with quenched treatment HRC 60-62
Frame stand thickness: 18mm
Type of Cutting: Hydraulic cutting
4) Punching & cutting & hydraulic station
Hydraulic power: 5.5 kw
Hydraulic pressure: 20Mpa
Cutter material: Cr12Mov quenching process
Cutting length error: +/- 2mm
Cutting module: 1 set
5) Electrical system
Voltage: 380V 50Hz 3 phase( or as customer's local requirement )
Electrical control system: PLC Frequency Control System with touch
screen in English
Size of PLC board: 700mm*1000mm*300mm
