| Prod Model: |
JD-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Size Of Mould Frame: |
(600*500*600)Mm |
| Maximum Clamping Force: |
45kn |
| Maximum Opening Mould: |
38kn |
| Minimum Shut Height: |
350mm |
| Maximum Stroke Of Dynamic Mold: |
350mm |
| Top Core Oil Cylinder Output: |
38kn |
| The Angle Of Working Platform Rotation: |
0-90 |
| Hydraulic Station Power: |
3.75kw |
| Maximum Dimension Of The Equipment (Lxwx: |
2500mm*1500mm*1600mm |
Product Description
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery TimeOver 20 years==factory==exporting license==quality control==competitive price==own technology== delivery time==good & direct service
--------------------------------------------------------------------------------------------------------------------------------------------
Over 20 Years Factory, Own the Domestic First-Class Team and Professional Design Team, Integrating production, sales and after-sales, Own Exporting License, High Quility Products, Competitive Price, OEM, Timely Delivery.
Aluminum gravity die casting

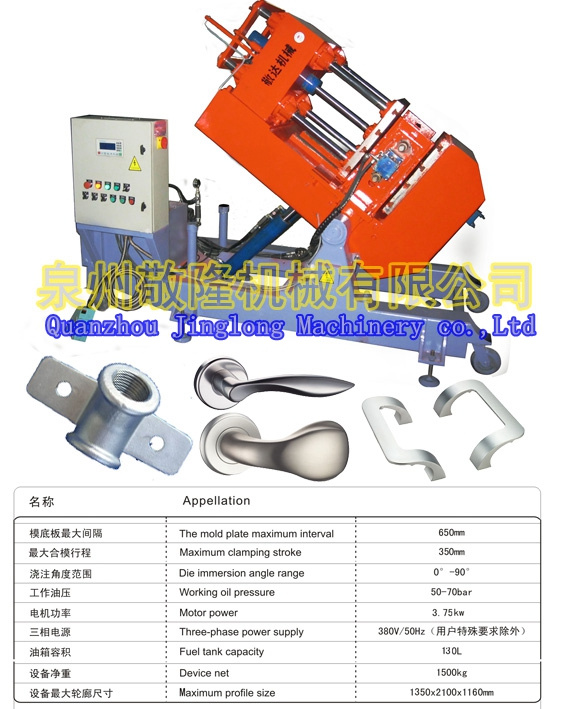

Item No.: JD-600 Tilt Gravity Die Casting Machine for aluminium.
It's a machine which used in casting not only aluminum but also zinc and some other metals, and the main point, they can't used in brass and copper. If you want cast brass or copper, please choose our products JD-AB500 or JD-AB400
JD600Aluminum alloy casting machine
Technical parameters:
1.Maximum size of mould frame:(600*500*600)mm
2.Maximum clamping force: 45KN
3.Maximum opening mould :38KN
4.Minimum shut height:350mm
5.Maximum stroke of dynamic mold:350mm
6.Top core oil cylinder output:38KN
7.The angle of working platform rotation:0°- 90°
8.The speed of working platform rotation:8°/S≤V≤4°/S
9.Hydraulic station power:3.75kw
10.Hydraulic system pressure rating:6.5Mpa
11.Hydraulic system working pressure:5.5-10Mpa
12.Control:manual,automatic
13.Plunger pump (Taiwan imports):25cc/rev
14.Human-computer conversation:Siemens touch screen
15.Net weight of the Equipment :2.6T
16.Maximum dimension of the equipment (LXWXH):2500mm*1500mm*1600mm| JD600Aluminum alloy casting machine Technical parameters |
| Maximum size of mould frame | (600*500*600)mm |
| Maximum clamping force | 45KN |
| Maximum opening mould | 38KN |
| Minimum shut height | 350mm |
| Maximum stroke of dynamic mold | 350mm |
| Top core oil cylinder output | 38KN |
| The angle of working platform rotation | 0-90 |
| The speed of working platform rotation | 8°/S≤V≤4°/S |
| Hydraulic station power | 3.75kw |
| Hydraulic system pressure rating | 6.5Mpa |
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
