| Prod Model: |
JD-AB500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1650mm*2300mm*1720mm |
| Weight: |
2000kg |
| Power Capacity: |
3.75+0.75+0.75kw |
| Maximum Outlined Diameter Of Mold: |
500mm |
| Maximum Weight Of Mold: |
150kg |
| Maximum Distance Of Mold Base Plate: |
510mm |
| Maximum Clamping Stroke: |
270mm |
| Oil Pressure: |
50-70bar |
| Three Phase Power: |
380V/50Hz |
| Angle Range Of Pre-Cast: |
0-110 |
Product Description
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
Over 20 years==factory==exporting license==quality control==competitive price==own technology==OEM ==delivery time==good & direct service

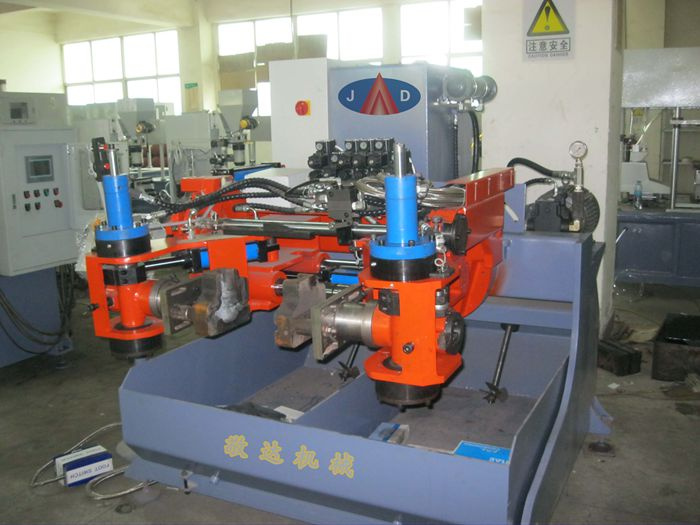

JD-AB500 Gravity Die Casting Machine is used for producing copper / brass alloy casting of large and medium size or casting of small size whose molds contains several cavities.
Compared with traditional foundry casting technology, gravity die casting technology is more advanced and safe. It can increase productivity and reduce labor pressure. It will cause low pollution and little noise. It\'s operation is also easy to master. Copper consumption and rate of spoiled product are low.
The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well selected steel. Both pneumatic part electrical part use products of world-famous brands. Therefore we can make sure our machine\'s quality is high.
Main specifications and technology parameters:
1. Maximum outlined diameter of mold: 500mm
2. Maximum weight of mold: 150kg
3. Maximum distance of mold base plate: 510mm
4. Maximum clamping stroke: 270mm
5. Angle range of measured-cast: 0-90
6. Angle range of pre-cast: 0-110
7. Angle range of mold immersion: 0-90
8. Oil pressure: 50-70bar
9. Power capacity: 3.75+0.75+0.75kw
10. Three phase power: 380V/50Hz
11. Oil tank capacity: 220L
12. Volume of mold immersion tank: 375L+375L
13. Equipment net weight: 2000kg
14. Equipment maximum outlined size: 1650mm*2300mm*1720mm
About the after-sale services
In the meantime, we own strong administrant technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers\'specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
| Main specifications and technical parameters |
|
| Maximum outlined diameter of mold | 500 mm |
| Maximum weight of mold | 150 kg |
| Maximum distance of mold baseplate | 510 mm |
| Maximum clamping stroke | 270 mm |
| Angle range of lateral casting | 0-90deg |
| Angle range of pre-casting | 0~110 deg |
| Angle range of mold immersion | 0~90 Centigrade |
| Oil pressure | 50~70 bar |
| Power capacity | 5.25 kw |
| Three phase power | 380 V/ 50Hz |
| Oil tank capacity | 220 L |
| Capacity of mold immersion tank | 750 L |
| Machine weight | 2000 kg |
| Machine size( L× W× H) | 1650mm× 2300mm× 1720mm |
| The advantage of gravity casting technology |
| Item | Gravity casting technology | Foundry casting technology |
| Product quality | The structure of the casting is compact
and both of its inside and outside surfaces
are smooth . The sizes of castings are
concordant . The fine machining
speed is fast and polishing rate is high . | There are some dregs and sands on
the surface of the castings. Its structure
is loose and both of the inside and
outside surfaces are rough. The sizes of
castings are not concordant . The fine
machining speed is slow and polishing
rate is low. |
| Qualified rate | 92%~98%, high qualified rate | High rejection rate |
| Labor productivity | It needs only 7 persons . | It needs more than 14 persons . |
| Pollution situation | Casting temperature is low . Its pollution
and noise are also low . | It produces smoke . Its pollution and noise
are high . |
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
