| Prod Model: |
JB21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

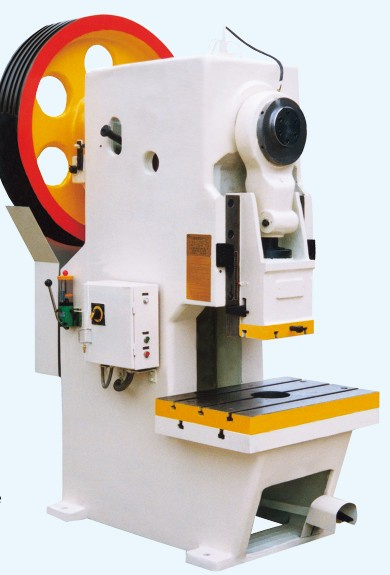

JB21 Series Features
1. The series of presses are foundry body and the crankshaft of frame is longitudinal
2. Adjusting the prejudicial bush can change the stroke of slide
3. Rotational semicircle key clutch
4. Overload protecting device is formed of a shear plate
5. Air cushion can be chosen, if needed.
MODEL
SPECIFICATIONS |
Unit |
JB21-100 |
JF23-40 |
|
Nominal capacity |
KN |
1000 |
1600 |
|
Nominal working stroke |
mm |
10 |
10 |
|
Stroke of slide |
mm |
20100 |
40160 |
|
Strokes per minute |
s. p. m |
70 |
57 |
|
Max. die set height |
mm |
390 |
450 |
|
Die height adjustment |
mm |
85 |
120 |
|
Throat depth |
mm |
325 |
380 |
|
Stroke of slide knock-out |
mm |
30 |
50 |
|
Distance between uprights |
mm |
300 |
410 |
|
Area of bolster(FB x LR) |
mm |
600x900 |
710x1120 |
|
Hole in bed |
mm |
φ 180 |
φ 200 |
|
Thickness of bolster plate |
mm |
80 |
120 |
|
Area of slide(FB x LR) |
mm |
270x 335 |
400x510 |
|
Size of the handle hole(Dia x Depth) |
mm |
Φ 60x80 |
Φ 80x80 |
|
Ejecting force of air cushion |
KN |
50 |
60 |
|
Air cushion stroke |
mm |
80 |
90 |
|
Main motor power |
KW |
7.5 |
15 |
|
Overall dimension(FBxLR) |
mm |
1812x1270 |
2175x1288 |
Height above floor
|
mm |
2635 |
3047 |
|
Total weight |
kg |
5800 |
13000 |
