Prod Model: |
J36 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Forging Forming Method: |
Mold Forging |
Product Description

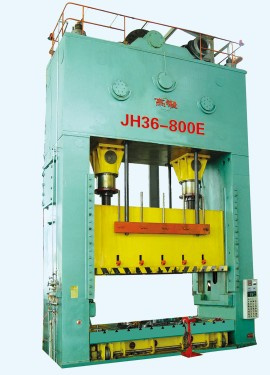

1. J36 series presses adopt founded and welded combined structure. The base, left and right uprights and crossbeam connected through four tightening bolts, connection between the cross beam and slide adopts guide pillar and guide pillar bush structure.
2. Clutch-brake of the presses adopt floating disk friction and low inertia structure, controlled by imported safe double valve, reliable performance, high concatenation and long life.
3. In the slide there is import hydraulic overload protecting device, which can protect the machine run normally and safely.
4. Centralized lubricating system of thin oil.
5. The presses are controlled by imported touchscreen\PLC and double loop control system.
6. Closing and adjusting device of cushion, increase pressure device and photoelectric protection can be chosen if needed.
MODEL
SPECIFICATIONS |
Unit |
J36-250G |
JH36-250G |
JH36-250E |
JD36- |
JD36- |
JH36- |
JH36- |
JH36-800E |
250C |
250E |
400C |
400E |
500C |
500E |
630C |
630E |
|
Nominal capacity |
KN |
2500 |
2500 |
2500 |
2500 |
4000 |
5000 |
6300 |
8000 |
Nominal working stroke |
mm |
13 |
13 |
13 |
13 |
13.7 |
13 |
13 |
13 |
Stroke of slide |
mm |
400 |
400 |
400 |
400 |
400 |
500 |
500 |
500 |
Strokes per minute |
s. p. m |
17 |
17 |
17 |
17 |
16 |
12 |
10 |
10 |
Max. die set height |
mm |
590 |
600 |
600 |
600 |
880 |
880 |
800 |
990 |
Die height adjustment |
mm |
250 |
250 |
250 |
250 |
400 |
340 |
340 |
500 |
Distance between uprights |
mm |
2620 |
2620 |
2620 |
2820 |
2850 |
3360 |
3360 |
3780 |
Size of bolster(FB x LR) |
mm |
1250x2770 |
1250x2770 |
1250x2770 |
1250x2770 |
1600x2800 |
1600x3450 |
1600x3450 |
1800x4000 |
Thickness of bolster plate |
mm |
160 |
160 |
170 |
170 |
180 |
200 |
200 |
230 |
Size of slide(FBxLR) |
mm |
1000x2760 |
1250x2760 |
1250x2760 |
1250x2760 |
1600x2800 |
1600x3300 |
1600x3300 |
1800x3980 |
Stroke of slide knock-out |
mm |
100 |
100 |
100 |
100 |
100 |
200 |
200 |
120 |
Air pressure |
clutch |
Mpa |
0.45 |
0.45 |
0.45 |
0.45 |
0.5 |
0.4 |
0.4 |
0.4 |
Equilibrator |
Mpa |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.55 |
Cushion |
Ejecting/pressi-ng force(each) |
KN |
60/170 |
60/170 |
400 |
400 |
800 |
1000 |
1000 |
1000 |
stroke |
mm |
200 |
200 |
200 |
50~200 |
50~200 |
50~240 |
50~240 |
50~250 |
number |
pc |
3 |
3 |
Int-Top |
Int-Top |
Int-Top |
Int-Top |
Int-Top |
Int-Top |
Bolster’ s moving direction |
|
|
|
|
|
|
|
|
|
Main motor power |
KW |
30 |
30 |
30 |
30 |
45 |
55/75 |
55/75 |
90 |
Overall dimension(FBxLR) |
mm |
2365x4140 |
2365x4140 |
2450x4830 |
2765x4140 |
2950x4940 |
3000x5765 |
3000x5885 |
2825x60755700 |
Height above floor |
mm |
5700 |
5700 |
5700 |
5710 |
5650 |
6260 |
6150 |
7620 |
7630 |
7540 |
7550 |
8050 |
Total weight |
kg |
52000 |
54000 |
69000 |
55000 |
63000 |
86000 |
102100 |
122000 |
134000 |
136000 |
148000 |
194000 |
Shandong Gaomi Gaoduan Machinery Co., Ltd located in Gaomi City, Shangdong Province. It has superior tranportation, just about 70km to Qingdao Airport, Weifang Airport, Qingdao Port.
Shandong Gaomi Gaoduan Machinery Co., Ltd was established in 1952. It covers an area of 326000 square meter, of which the building area is 150 tousand quare meter. The factory have general assets of 310 million, 868 sets of manufacturing equipments. It has more than 2100 staffs.
Shangdong Gaomi Gaoduan Machinery Co., Ltd has two independent plant, Machine Manufacturing Company and Auto-mobile Parts Manufacturing Company. It has Office Department, Management Department, Finance Department, Human Resource department, Quality Controll Department, Import&Export Department.
Shandong Gaomi Gaoduan Machinery Co., Ltd specialized in manufacturing mechanic presses, hydraulic press, CNC punching presses, automoblile part. The company has passed ISO9001, ISO/TS16949 international quality management system. 'Gaoduan' brand was choosed as famous trademark of Shandong province and China. With our more 60 years experience and high quality machines we enjoyed well reputation in the mechanic industrial in China and all over the world.
