Product Description
Detailed Product Description
Introduction:

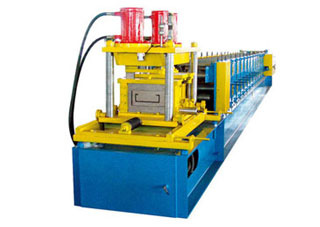

C shape praline forming machine can produce many sizes of C shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, C shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.
Main Technical Specification:
1. Passive leak: Manual up tight, passive leak
2. The bearing of decoiler: 5T
3. Rack: The thickness of middle plate is 20mm which adopting 400H steel welding
4. The form of Forming Machine-driven feeding frame: Slidewise roller
5. Forming Machine Shape: Wall-type chain drive
6. Shaft Diameter: 80 mm solid shaft
7. Chain: 2 inch
8. Forming Machine Motor Reducing Qear drive
9. Forming Machine line speed: 12-15m/min
10. Forming Machine Tracks Number: 7 roller flattening, 12 roller molding
11. Roll Material: Bearing steel
12. Roll heat treament: HRC58° -60
13. Hydraulic station motor: 15kw
14. Hydraulic Oil Pump: Tailwan JinYong Gear pump
15. Cutting method: Flying saw cut, mesopore is set freely
16. Flying saw motor: 15KW
17. Rolling thickness: 1.5-3.0 mm
18. Accuracy of fixing length: ± 2mm
19. The computer is adopted with PLC, Japan's Panasonic
Usually, our roll forming machine includes hydraulic decoiler, sheet
Guiding equipment, pre-cutting device, film device, roll forming system,
Cutting equipment, hydraulic station, electric controlling system and
Supporter.
Working flow:
Decoiling the sheet, sheet guiding, roll forming, measure length, cutting the panel, panel to supporter
We are professinal manufacture of Roll Forming Machine, Glazed Tile Forming Machine, Corrugated Tile Forming Machine, C/Z/U purlin machine, Ridge Cap Machine, Sandwich panel producing line, and other assistent equipment such as cutting machine, bending machine, decoiler and stacker. A lot of roll forming machines have saled to Russia, Australia, Suriname, Vietnam, Malaysia, North Korea, Kazakhstan, etc. In these years. We have go into international market.
Our factory take the management tenet "top quality, credit based". We make efforts to improve product technology, accelerate the pace of renewal debase, quality, innovation, development of enterprise spirit for clients to provide satisfactory products and services.
We are the largest professional manufacture in cangzhou. We supply high technic desgin and best service for the wholesaler, trading company and final user. We have advantage of researching new products, after sale engineer available for overseas,
Our price is not the lowest but the valuable for customer, our purpose is help customer using the lest cost to get the highest profit.
