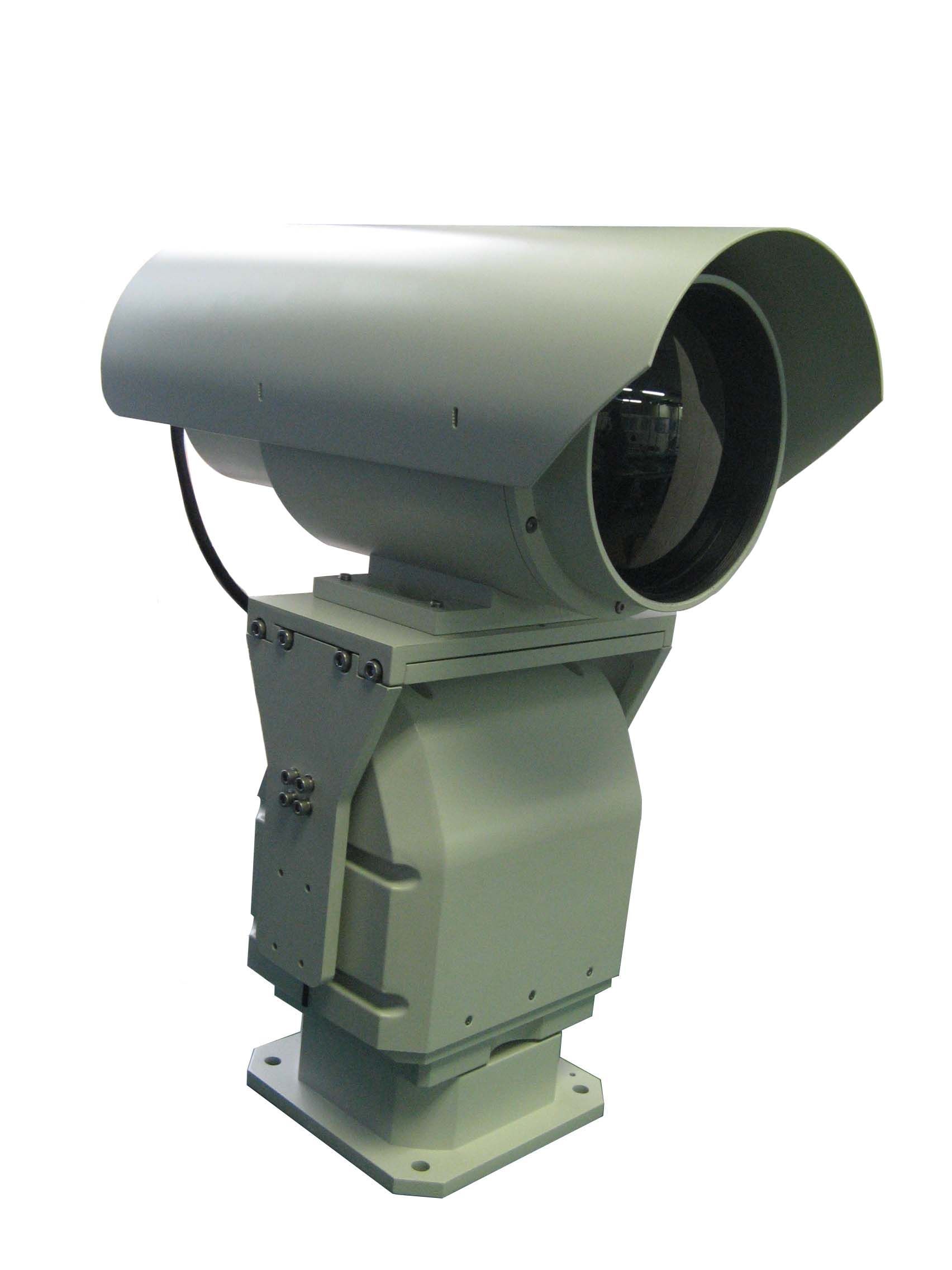

China Sheenrun Shr-Tir104r Middle Range Thermal Camera 6.6km

China Sheenrun Shr-Tir104r Middle Range Thermal Camera 6.6km
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: SHR-TIR104R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 390mmx174mmx173mm
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Type: CCTV Camera
Kind: Manual Focus Lens
Certification: ISO9001: 2000
Feature: Auto BLC
Effective Distance: ≧30m
Remote Control: With Remote Control

Product Description

Product features
 324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox
 25µm super small pixel,image quality fine,observe small target more clearly,further detection distance
 High sensitivity, NETD can reach 50mk and frame at 25Hz
 Word originate 25~100mm continuous zooming,can search in a wide range as well as identify target far,don't lost target
  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color
 Low power consumption, quick start-up, stable performance, image clearly with high uniformity
 RS 485 interface control, analog video signal output
 Simple operation,easy to use and maintain
 Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime
Technical Indicators
Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)
Detect distance2400m6600m
Recognize distance600m1650m
Identification distance300m800m
Thermal lensFocal length25~100mm,4x optical zoom
FOV4.6°×3.7°~18.2°×14.6°
F1.0
Lens controlElectronic zoom/focus(auto focus is optional)
DetectorDetector typeUncooled FPA detector(vox)
Pixel324×256,pixel 25µm
Spectrum8~14μm
NETD≤50mK
Frame25Hz
NUCAuto/Manual/Background correction
Image processDDE,pseudo color
Video outputPAL








Pan-tilt
Rotating anglePan:0°~ 360°continuous;Tilt:+30°~ -45°
Rotating speedPan:0.1°~9°/S;Tilt:0.1~4°/S
Presettings255
AgreementPelco-D,Pelco-P Optional
Baud rate2400/4800/9600/19200 bps Optional
InterfaceRS485
Power supplyAC24V±10%,50Hz
Powerconsumption≤30W
Working temperature-25ºC~+55ºC
Storge temperature-40ºC~+65ºC
Load capacity20kg
Weight10Kg
Size265mm×180mm×315mm(L×W×H)
InterfacePower supply interfaceDC12V
Other interfaceRS485,BNC Video output
Environmental indicatorsWorking temperature-25ºC~+55ºC
Storage temperature-40ºC~+65ºC
International protectionIP66
Anti-vibrationGB/T 4857.10-2005
Anti-impactGB/T 15412-94 Free drop test method
Anti-thunder2000V
PowerPower supplyDC12V(attached AC220V/DC12V power adapter)
Power consumption≤8W
Physical featuresWeight≤4Kg
Size390mm×174mm×173mm(L×W×H,contain sunshield cover)
InstallationOutdoor base install

Sheenrun Optics & Electronics company is a high technique enterprise with focus on optics and information technology, which specializing in the area of laser night vision and infrared thermal image camera in China.

The basic businesses of the company are research, manufacture and sale of the special optics system and information system with our own intellectual properties. The main characteristics of our products are to combine laser, computer, electronics, communications and precision machinery technology together, and meet the special needs of the customers perfectly.

The techniques adopt the optics design, laser transportation system design, computer software and hardware design, SCM design, digital circuits and analog circuits design, wireless communication system design, precision machinery and automatization design and structure design; Involves several branches such as optics communication, optics imaging, optics processing, automatic control, information transportation and safety etc.

Sheenrun has passed ISO9000 certificate and China National Military Standard Certificate, which is always awarded a high-tech enterprise by government, and got lots of tech patents and proprietary tech in the world, especially in laser and thermal tech.

Welcome to visit our factory, which is located in Qilu Software Park, Hi-tech zone, Jinan City, Shandong, China. We hope both of us can share cost efficient and benefits on our cooperation.
