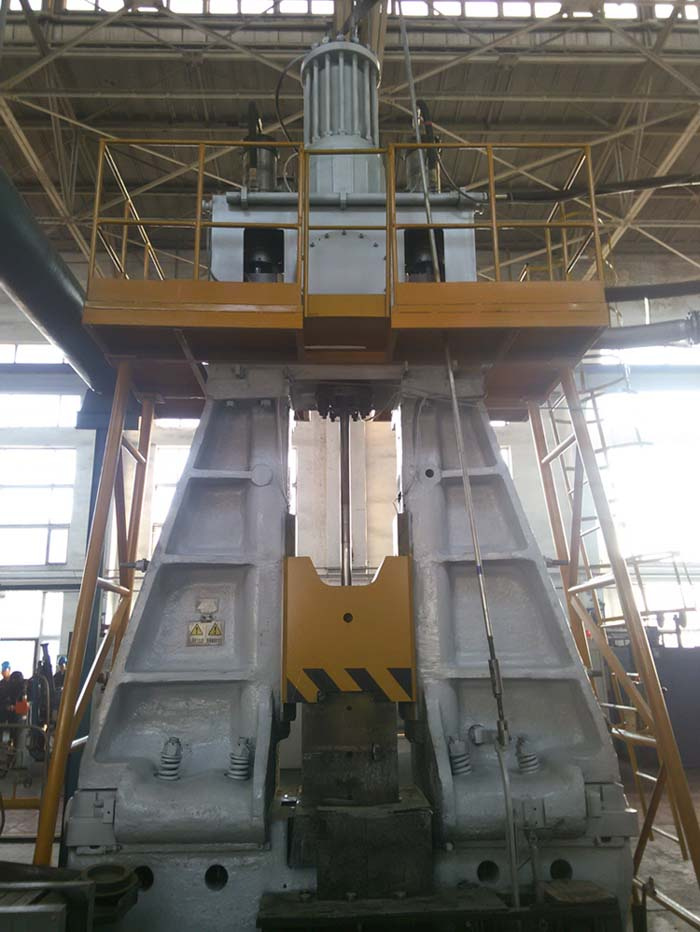

Closed Die Hydraulic Forging Hammer with Energy Saving

Closed Die Hydraulic Forging Hammer with Energy Saving
Price: US $ 100000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: C86 series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
X Type Guide: Environmental Protection
Forging Forming Method: Mold Forging
Advantage: Enregy Saving

Product Description

Closed die hydraulic forging hammer is a new energy saving and environmental protection forging hammer. It can save more than 90% energy comparing with the steam forging hammer and the forging hammer with compressor. Also, hydraulic close die forging hammer can improve the working condition.
The advantage, structure and design feature of hydraulic close die forging hammer as follows:
1. Energy conservation and environmental protection.
2.The operation is convenience,lowering and the act is agility
3.System work safety,it has safety locking motion
4.Special structure is more fair and more safety.
ItemUnitC86-75(3T)
Maximum hit energy KJ 75
The weight of falling partskg 3500
Maximum stroke mm 1250
Hit number min-1 50-60
Main oil pump typeA2F160R2
P3×3
Main motor typeY250M-4-B35
Main motor power kw55
Number of motor
3
Guide space mm700
Minimum close die height
(without dovetail groove)
mm350
Machine outside size
(L× W× H)
mm3200 x1800x7100
Oil tank outside size
(L× W× H)
mm2700 x2000x1600
Cooling oil pump
KCB-300
Cooling motorTypeY132S-6Y132S-6

Power33
Heat exchanger area m225
Our company is the only professional manufacturer of hydraulic die forging hammer in China, we have a history of more than 59 years in producing hydraulic closed die forging hammer and other forging equipment. We are an ISO9001:2008 Certification and CE Certification company.
Anyang Jinzhen Forging Co., Ltd is the special manufacturer of forging equipment in China. Our company has passed ISO9001: 2008 quality certification. All of our products have obtained CE Certificate.

Our main products include CNC Fully Hydraulic Die Forging Hammer, Electro Hydraulic Open die Forging Hammer, Electro Hydraulic Closed Die Forging Hammer, Open die Forging Hydraulic Press, Pneumatic Forging Hammer, Forging Manipulator, Forging Charger, Ring Rolling Machine, Hydraulic Briquette Press, Hydraulic Baling Presses and Hydraulic Riveting Machines.

Our company drafted China's National Manufacturing Standard of CNC Fully Hydraulic Die Forging Hammers.

Our company drafted China's National Manufacturing Standard of Electro Hydraulic Open die Forging Hammers.

Our company drafted China's National Manufacturing Standard of Electro Hydraulic Die Forging Hammers.

Our company drafted China's National Manufacturing Standard of Pneumatic Forging Hammers.

Our company drafted China's National Manufacturing Standard of Hydraulic Riveting Machines.

Our company drafted China's National Manufacturing Standard of Hydraulic Briquette Presses.
