| Prod Model: |
C90 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X Type Guide: |
Energy Saving |
| Forging Forming Method: |
Mold Forging |
Product Description

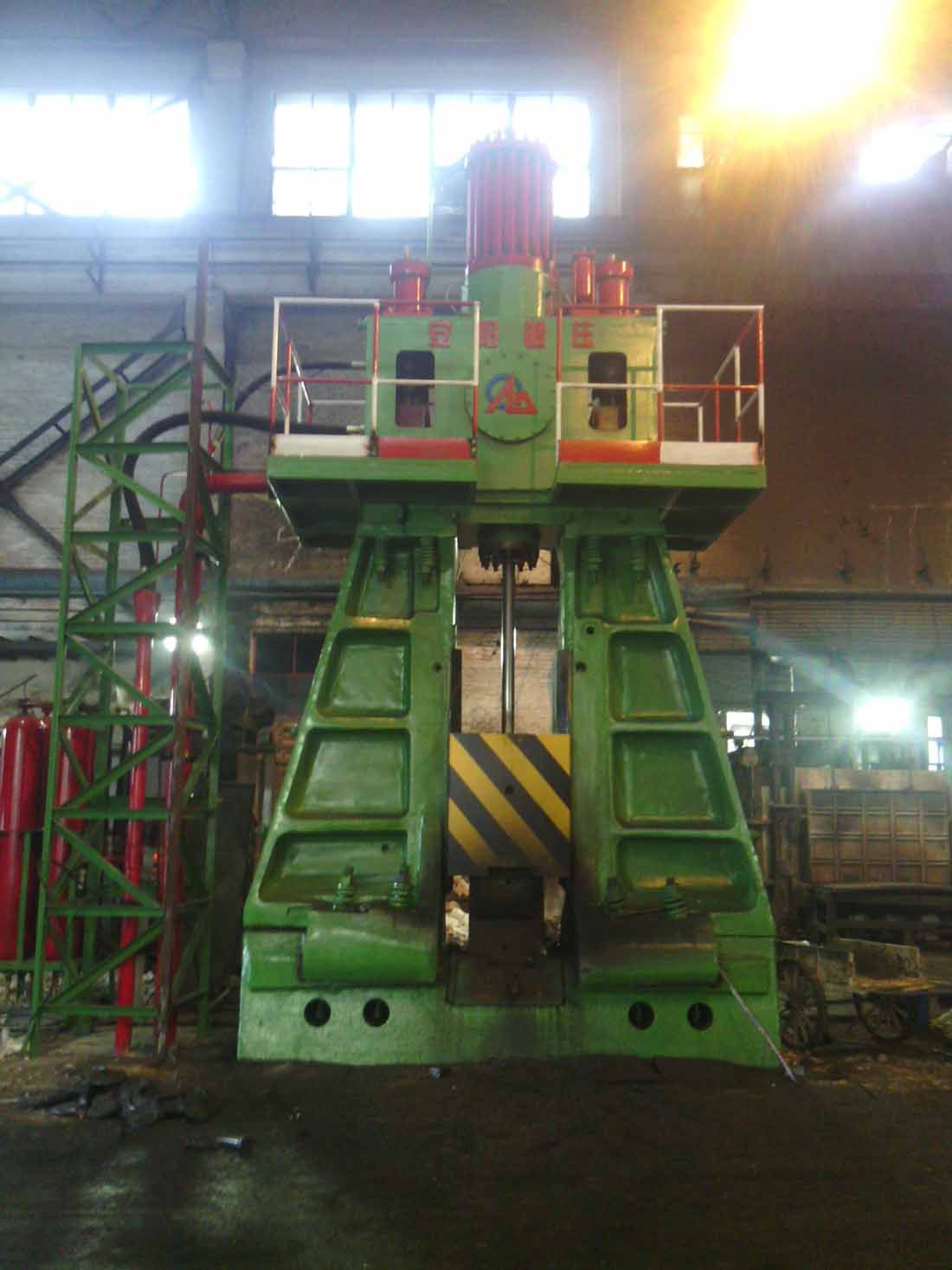

Hydraulic drive forging hammer is a new energy saving and environmental protection forging
hammer. It can save more than 90% energy comparing with the steam forging hammer and the forging hammer with compressor.
We can convert the steam hammer or hammer with compressor into hydraulic drive forging hammer, we had convert about 500 sets steam hammer into hydraulic forging hammer.
For converted hydraulic forging hammer, motor drives high-pressure oil pump to supply high pressure oil to drive the ram running. The hammer can work once the power on.Hammer rod piston lower cavity connects with high pressure oil constantly, through controlling the oil in and out of piston upper cavity to achieve blow and lifting. Hammer piston upper cavity connects high pressure, piston and hammer rod has area difference to form force difference together with falling part weight to achieve blow. When piston upper cavity unload lower pressure, constant oil pressure at piston lower cavity circle area to produce the return force to over come the falling part weight and relative friction to achieve lifting.The advantages of hydraulic hammer are as following:
1. Energy saving and environmental protection.2. High speed and high efficiency blowing increases production efficiency.3. 'X' type guide rails guarantee precision forging and strong anti deviated loading ability.4. Auto lubricating of guide rails.5. PLC control, immediately starting and immediately apply into forging production.6. Safety and easy operating by foot pedal or hand lever.7. High efficiency cooling for hydraulic oil.
Anyang Jinzhen Forging Co., Ltd is the special manufacturer of forging equipment in China. Our company has passed ISO9001: 2008 quality certification. All of our products have obtained CE Certificate.
Our main products include CNC Fully Hydraulic Die Forging Hammer, Electro Hydraulic Open die Forging Hammer, Electro Hydraulic Closed Die Forging Hammer, Open die Forging Hydraulic Press, Pneumatic Forging Hammer, Forging Manipulator, Forging Charger, Ring Rolling Machine, Hydraulic Briquette Press, Hydraulic Baling Presses and Hydraulic Riveting Machines.
Our company drafted China's National Manufacturing Standard of CNC Fully Hydraulic Die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Electro Hydraulic Open die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Electro Hydraulic Die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Pneumatic Forging Hammers.
Our company drafted China's National Manufacturing Standard of Hydraulic Riveting Machines.
Our company drafted China's National Manufacturing Standard of Hydraulic Briquette Presses.
