| Prod Model: |
C92K series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Molding Technics: |
Cavity Forging |
Product Description

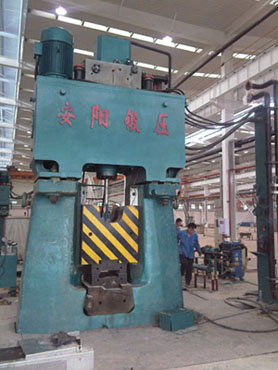

CNC hydraulic die forging hammer is mainly used in precision forging and multiple cavity forging of all kinds of accessories. It's widely applied in automobile forgings, motorcycle forgings, hardware forgings, hand tools blank forgings, stainless steel tableware, and aeronautic forgings etc, especially for the precision forging field.
The working principle of CNC Full Hydraulic Die Forging Hammer is as follows:
Adopt motor-oil pump-accumulator as drive, bottom cavity of oil cylinder connects with the
accumulator constantly, the pressure is constant pressure. The control system control only control the top cavity. Oil enter valve( also called hit valve) of top cavity open up,the high pressure oil from oil pump, accumulator and bottom cavity enter top cavity,make the hammer head fall down quickly and finish the hit action. Once the top cavity release the pressure,the hammer head will move up quickly. The accurate control of hit energy is realized by control the close time of hit valve.
| Name | Unit | C92K-16 | C92K-25 | C92K-31.5 | C92K-50 | C92K-63 | C92K-80 | C92K-100 | C92K-125 |
| Blow energy | KJ | 16 | 25 | 31.5 | 50 | 63 | 80 | 100 | 125 |
| Max.blow frequency | min-1 | 90 | 90 | 85 | 85 | 80 | 75 | 75 | 70 |
| Max.ram stroke | mm | 640 | 685 | 700 | 740 | 760 | 810 | 850 | 1000 |
| Min.ram stroke | mm | 480 | 495 | 500 | 510 | 520 | 560 | 600 | 770 |
| Overall weight | kg | 28000 | 39300 | 47800 | 78500 | 95000 | 120000 | 148000 | 190000 |
| Ram | kg | 1080 | 1700 | 2100 | 3400 | 4350 | 5650 | 6900 | 8500 |
| Overall height | mm | 5080 | 5275 | 5630 | 6290 | 6650 | 7300 | 7740 | 8280 |
| Height above floor | mm | 4540 | 4570 | 4780 | 5185 | 5260 | 5910 | 6200 | 6470 |
| Height below floor | mm | 540 | 705 | 850 | 1105 | 1390 | 1390 |
| 1810 |
| Daylight between guides | mm | 520 | 608 | 664 | 766 | 800 | 850 | 850 | 1000 |
| Min.die height without dovetails | mm | 160 | 180 | 200 | 220 | 220 | 280 | 300 | 500 |
| Max.die height without dovetails | mm | 320 | 370 | 400 | 450 | 460 | 530 | 550 | 730 |
| Height from floor to upper edge of die seat | mm | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Working oil pressure | MPa | 18 | 20 | 18 | 20 | 20 | 20 | 20 | 20 |
| Main motor power | KW | 37 | 55 | 55 | 55*2 | 55*2 | 90*2 | 90*2 | 132*2 |
| Cooling capacity | kcal/h | 18000 | 24000 | 30000 | 40000 | 50000 | 60000 | 60000 | 80000 |
| Frame base size | mm | 1850*1200 | 2150*1400 | 2320*1500 | 2720*1760 | 2950*1880 | 3150*2050 | 3420*2500 | 3800*2800 |
If you want to know more about our CNC fully hydraulic die forging hammer, please not hesitate to contact with me.
Anyang Jinzhen Forging Co., Ltd is the special manufacturer of forging equipment in China. Our company has passed ISO9001: 2008 quality certification. All of our products have obtained CE Certificate.
Our main products include CNC Fully Hydraulic Die Forging Hammer, Electro Hydraulic Open die Forging Hammer, Electro Hydraulic Closed Die Forging Hammer, Open die Forging Hydraulic Press, Pneumatic Forging Hammer, Forging Manipulator, Forging Charger, Ring Rolling Machine, Hydraulic Briquette Press, Hydraulic Baling Presses and Hydraulic Riveting Machines.
Our company drafted China's National Manufacturing Standard of CNC Fully Hydraulic Die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Electro Hydraulic Open die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Electro Hydraulic Die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Pneumatic Forging Hammers.
Our company drafted China's National Manufacturing Standard of Hydraulic Riveting Machines.
Our company drafted China's National Manufacturing Standard of Hydraulic Briquette Presses.
