| Prod Model: |
C41 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| C Frame: |
Open Die Forging Hammer |
| Forging Forming Method: |
Free Forging |
Product Description

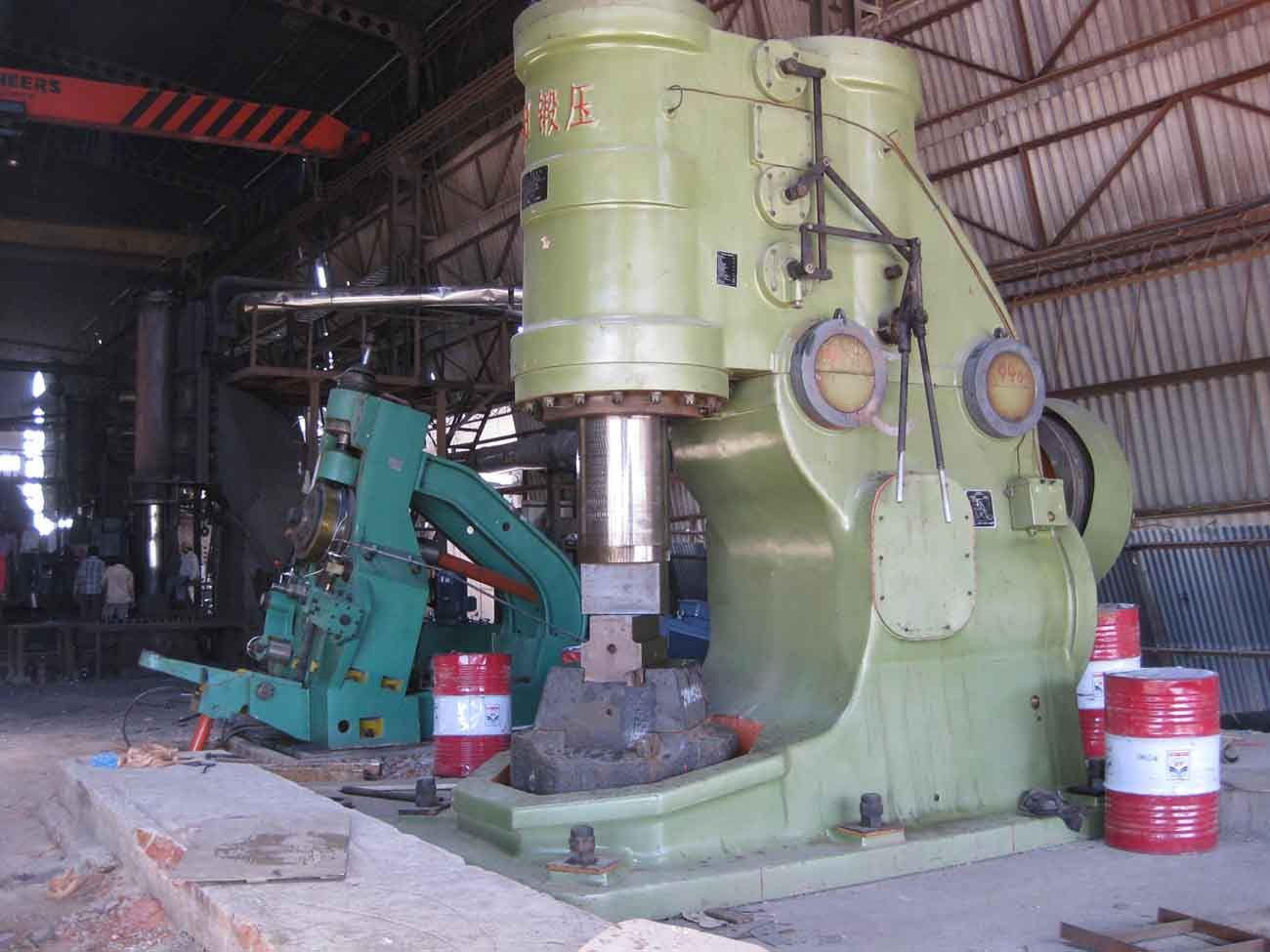

Pneumatic forging hammer is mainly used to open die forging, drawing, upsetting,punching, hot shearing, forged welding, bending, torsion, standard forge etc.
Pneumatic forging hammer is also called air hammer or open die forging hammer. We are the special manufacturer of pneumatic forging hammer We have a history of more than 59 years in producing penuamtic forging hammer. Our company drafted the approved standard for all Chinese pneumatic forging hammers,till now the standard is still in use. We have passed the ISO9001:2008 Quality and CE Certification.
Please check the below main parameter of pneumatic forging hammer.
| Model | C41-150 | C41-250 | C41-400 | C41-560 | C41-750 | C41-1000 | C41-2000 |
| Weight of falling parts (kg) ) | 150 | 250 | 400 | 560 | 750 | 1000 | 2000 |
| Maximum hit energy(kj) | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 |
| Hit number(min-1) | 180 | 140 | 120 | 115 | 105 | 95 | 80 |
| Heigh of working area (mm) | 370 | 450 | 530 | 600 | 670 | 800 | 1000 |
| Tup axis to frame front (mm) | 350 | 420 | 520 | 550 | 750 | 770 | 950 |
Dimension of top die surface
(L x W) (mm) | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 |
Dimension of bottom die
surface (L x W) (mm) | 200x85 | 220x100 | 250x120 | 300x140 | 330x160 | 365x180 | 400x300 |
| Forges | Square (mmxmm) | 130x130 | 145x145 | 220x220 | 270x270 | 270x270 | 290x290 | 350x350 |
| Round (mm) | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 |
| Motor | Type | Y180M-4-B3 | Y180L-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 | Y315L2-6-B3 |
| Power (kw) | 18.5 | 22 | 30 | 45 | 55 | 75 | 132 |
| Weight | Hammer (kg) | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
| Anvil block (kg) | 1500 | 2500 | 4800 | 6720 | 9000 | 13000 | 24000 |
| Outside Size | 2390x
1085x
2150 | 2639x
1155x
2540 | 2785x
1400x
2884 | 3464x
1500x
3157 | 3905x
1370x
3175 | 4125x
1500x
3770 | 4200x
2300x
4390 |
We have exported our pneumatic forging hammers to USA, Canada, Germany, UK, Norway, Italy, Turkey, Australia, South Africa, Indonesia etc more than 60 countries.
Anyang Jinzhen Forging Co., Ltd is the special manufacturer of forging equipment in China. Our company has passed ISO9001: 2008 quality certification. All of our products have obtained CE Certificate.
Our main products include CNC Fully Hydraulic Die Forging Hammer, Electro Hydraulic Open die Forging Hammer, Electro Hydraulic Closed Die Forging Hammer, Open die Forging Hydraulic Press, Pneumatic Forging Hammer, Forging Manipulator, Forging Charger, Ring Rolling Machine, Hydraulic Briquette Press, Hydraulic Baling Presses and Hydraulic Riveting Machines.
Our company drafted China's National Manufacturing Standard of CNC Fully Hydraulic Die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Electro Hydraulic Open die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Electro Hydraulic Die Forging Hammers.
Our company drafted China's National Manufacturing Standard of Pneumatic Forging Hammers.
Our company drafted China's National Manufacturing Standard of Hydraulic Riveting Machines.
Our company drafted China's National Manufacturing Standard of Hydraulic Briquette Presses.
