| Prod Model: |
JD-AB500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maxium Outlined Diameter Of Mould: |
500mm |
| Maxium Weight Of Mould: |
150 Kgs |
| Maximum Distance Of Mold Base Plate: |
510mm |
| Maxium Clamping Stroke: |
270mm |
| Angle Range Of Measure-Cast: |
0° -90°; |
| Angle Range Of Mould Immersion: |
0° -90° |
| Angle Range Of Pre-Cast: |
0° -110° |
| Oil Pressure: |
50-70bar |
| Power Capacity: |
3.75+0.75+0.75kw |
| Three Phase Power: |
380V/50Hz(as Customer's Request) |
| Material: |
Copper Alloy |
Product Description
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time

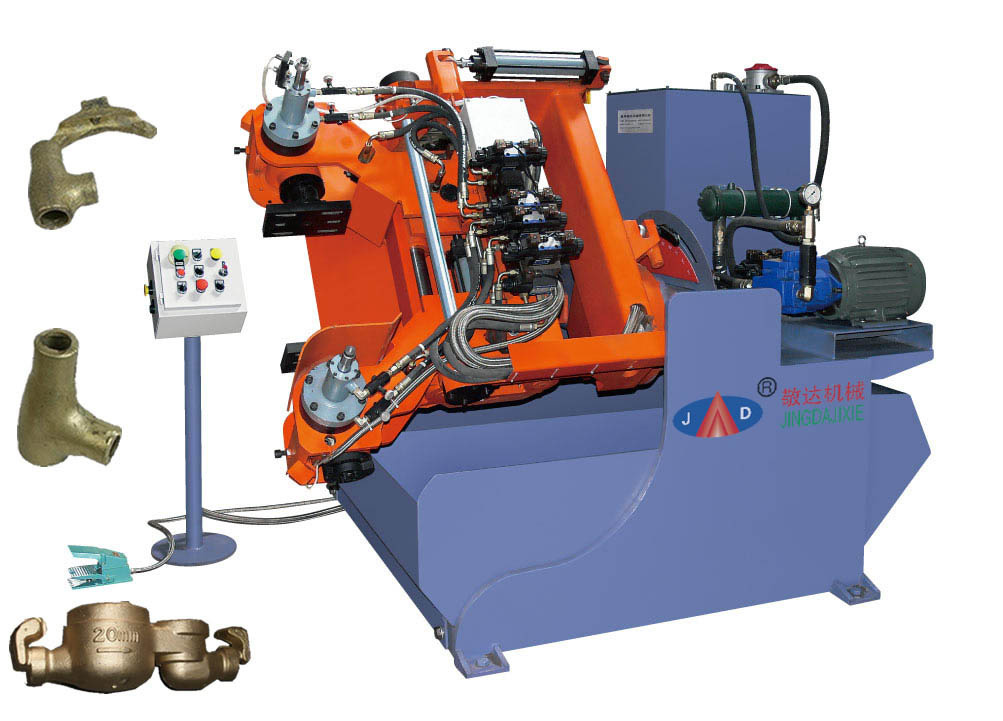

Jingda Foundry Machinery Manufacturer,Metal Gravity Die Casting Machine for water meter and faucets (JD-AB500) China
Over 20 Years Factory,Own the Domestic First-Class Team and Professional Design Team,Integrating production ,sales and after-sales ,Own Exporting License,High Quility Products,Competitive Price,OEM,Timely Delivery.
I. Introduction
1. Application
JD-AB500 gravity die casting machine is used for producing copper alloy castings of large and medium size or castings of small size whose molds contains several cavities.
2. Machine components
The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.
3. Main specifications and technical parameters:
(1) Maximum outlined diameter of mold: 500 mm
(2)Maximum weight of mold: 150 kg
(3)Maximum distance of mold baseplate: 510 mm
(4)Maximum clamping stroke: 270 mm
(5)Angle range of lateral casting: 0~90 deg
(6)Angle range of pre-casting: 0~110 deg
(7)Angle range of mold immersion: 0~90 Centigrade
(8)Oil pressure: 50~70 bar
(9)Power capacity: 5.25 kw
(10)Three phase power: 380 V/ 50Hz
(11)Oil tank capacity: 220 L
(12)Capacity of mold immersion tank: 750 L
(13)Machine weight: 2000 kg
(14)Machine size( L× W× H): 1650mm× 2300mm× 1720mm
II. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
| The advantage of gravity casting technology |
|
| Item | Gravity casting technology | Foundry casting technology |
| Product quality | The structure of the casting is compact
and both of its inside and outside surfaces
are smooth . The sizes of castings are
concordant . The fine machining
speed is fast and polishing rate is high . | There are some dregs and sands on
the surface of the castings. Its structure
is loose and both of the inside and
outside surfaces are rough. The sizes of
castings are not concordant . The fine
machining speed is slow and polishing
rate is low. |
| Qualified rate | 92%~98%, high qualified rate | High rejection rate |
| Labor productivity | It needs only 7 persons . | It needs more than 14 persons . |
| Pollution situation | Casting temperature is low . Its pollution
and noise are also low . | It produces smoke . Its pollution and noise
are high . |
| Operation situation | Simple and easy learned operations and skills can be mastered in 2 hours. Its labor consumption is low . | Its operation is difficult to learn, and
it is high in both labor consumption
and labor intensity |
| Cost accounting | Its labor cost is low . Copper consumption and spoiled product r ate are low .It can increase production quantity
and product quality is stable . | Its labor cost is high .Copper consumption and spoiled product rate are high . Production quantity is low and product
quality is not stable
|
| Main specifications and technical parameters |
| Maximum outlined diameter of mold | 500 mm |
| Maximum weight of mold | 150 kg |
| Maximum distance of mold baseplate | 510 mm |
| Maximum clamping stroke | 270 mm |
| Angle range of lateral casting | 0-90deg |
| Angle range of pre-casting | 0~110 deg |
| Angle range of mold immersion | 0~90 Centigrade |
| Oil pressure | 50~70 bar |
| Power capacity | 5.25 kw |
| Three phase power | 380 V/ 50Hz |
| Oil tank capacity | 220 L |
| Capacity of mold immersion tank | 750 L |
| Machine weight | 2000 kg |
| Machine size( L× W× H) | 1650mm× 2300mm× 1720mm
|
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
