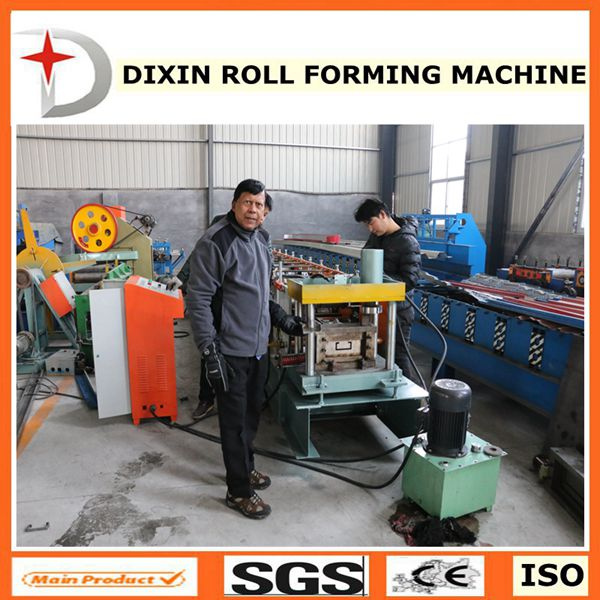

CZ Purlin Forming Line Machine

Prod Model:	c purlin
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	CZ Purlin Forming Line Machine
Model Number:	C80-300 C Shape Steel Purlin for Roof Roll Forming
Suitable Material:	Hot Rolled Strip Steel, Q235 or Equivalent
Material Thickness:	1.0-3.0mm
Material Width:	175-465mm
Dimension:	About 10.0*1.2*1.75 M (L*W*H)
Working Space:	About 20.0*2.7m(L*W)
Roller:	High Grade 45# Steel. Hard Chrome Plating, 0.05mm
Main Frame:	400# Steel. More Stable and No Shaking.
Middle Plate:	16mm. We Use Thicker Plates to Ensure Stability of
Forging Forming Method:	Mold Forging

Product Description

cz purlin forming line machine

Model Number	C80-300 C Shape Steel Purlin for Roof Roll Forming Machine
Suitable Material	hot rolled strip steel, Q235 or equivalent
Material Thickness	1.5-3.0mm
Material Width	175-465mm
Dimension	about 10.0*1.2*1.75 m (L*W*H)
Working Space	about 20.0*2.7m(L*W)
Sheet Length	Any length as you want, It is controlled by PLC which can ensure the accuracy within ±1mm.
Cutting	Automatically pause and cut when it comes to the set length.
Forming Speed	0-10m/min



Roller	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	400# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	13
Shaft	Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.
Detailed Forming Process	3 steps for leveling- 12 steps for roll forming-5 steps for adjusting height and width-1 step on the coil-output part for adjusting deviation-1 leveling step to make it straight.
Cutting Blade	Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting.

Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

 Why Choose us/Simple advantage in words


1	Direct Factory in China Since 2008
2	Good design and professional engineers more than 20 years experience
3	CE SGS BV AS--- authentication available
4	Overseas service available/one year quality guarantee
5	Good credit
6	Many other designs available and special design available

Our Service
First,we can produce the special machine,send your drawing to us,we can design for you.

Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.

Four,engineers available to service machinery overseas.

Five, if you come to visit our factory,we can book the room for you,car pick up to send.

We can design C Z purlin machine as customers' panel profile.Please don't hesitate to contact us,send your request to us.
