| Prod Model: |
JC21S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |

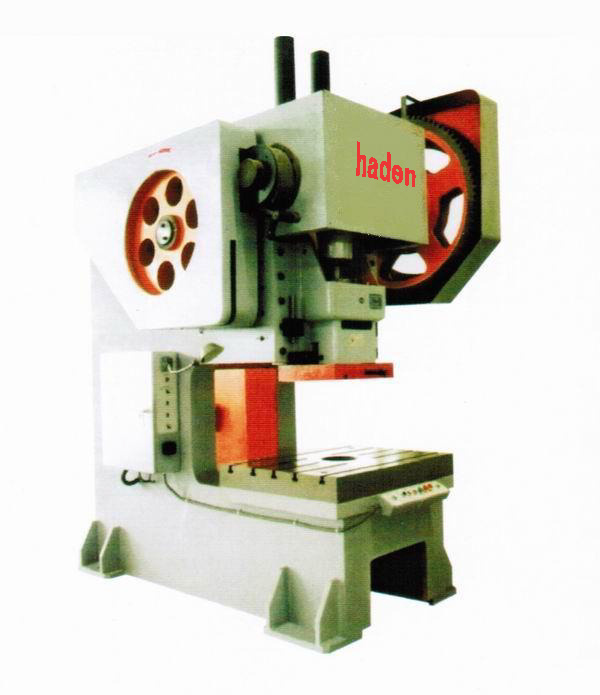

Product Description
Usage
1. Suitable for various cold punching and pressing processing such as blanking, holes punching, forming, bending, shallow drawing etc.
2. It is widely used in the industries such as electric apparatus, instruments, vehicles, machinery and hardware etc.
Structure
1. Welded steel machine fuselage with higher strength and rigidity;
2. C-frame machine fuselage, convenient for processing large plate materials;
3. Horizontal crankshaft, easy for maintenance;
4. Rigid rotary clutch, simple structure;
5. Belt-type brake, easy for adjustment;
6. Collapsed-type safety fuse to protect the whole machine from being damaged due to overloading.
Characteristics
1. Deep throat suitable for large plate sheet cold processing;
2. Machine fuselage with higher strength and rigidity, economic and durable;
3. Simple structure, good versatility, easy operation and maintenance;
|
TECHNICAL PARAMETERS |
UNIT |
JC21S-16 |
JC21S-25 |
JC21S-40 |
JC21S-63 |
JC21S-80 |
JC21S-100 |
JC21S-125 |
JC21S-160 |
JC21S-200 |
|
NOMINAL PRESSURE |
KN |
160 |
250 |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
|
NOMINAL PRESSURE STROKE |
mm |
2 |
2.5 |
4 |
4 |
5 |
5 |
6 |
6 |
6 |
|
RAM STROKE |
mm |
70 |
70 |
80 |
80 |
100 |
100 |
120 |
140 |
160 |
|
TIMES OF STROKE |
times/min |
110 |
65 |
50 |
50 |
50 |
40 |
38 |
40 |
36 |
|
MAX DIE INSTALLATION HEIGHT |
mm |
170 |
200 |
230 |
250 |
300 |
300 |
320 |
350 |
390 |
|
REGULATION OF DIE INSTALLATION HEIGHT |
mm |
30 |
30 |
40 |
50 |
60 |
80 |
100 |
110 |
110 |
|
CENTER OF RAM TO MACHINE BODY |
mm |
710 |
710 |
710 |
710 |
800 |
800 |
800 |
800 |
800 |
|
WORKTABLE SIZE (front-rear× left-right) |
mm |
400× 600 |
400× 600 |
420× 650 |
440× 670 |
470× 750 |
570× 860 |
650× 1000 |
710× 1120 |
740× 1300 |
|
WORKTABLE HOLE SIZE |
mm |
Φ 120 |
Φ 30 |
Φ 180 |
Φ 180 |
Φ 180 |
Φ 180 |
Φ 200 |
Φ 220 |
Φ 180 |
|
WORKTABLE THICKNESS |
mm |
50 |
50 |
70 |
70 |
80 |
90 |
110 |
130 |
160 |
|
RAM BOTTOM SURFACE SIZE (front-rear× left-right) |
mm |
170× 220 |
170× 220 |
210× 250 |
240× 280 |
260× 300 |
360× 450 |
420× 520 |
440× 560 |
580× 760 |
|
DIE HANDLE HOLE SIZE (diameter × depth) |
mm |
Φ 40× 60 |
Φ 40× 60 |
Φ 50× 70 |
Φ 50× 70 |
Φ 60× 80 |
Φ 60× 80 |
Φ 60× 80 |
Φ 65× 90 |
Φ 65× 90 |
|
COLUMN DISTANCE |
mm |
200 |
250 |
280 |
320 |
360 |
460 |
460 |
560 |
670 |
|
MOTOR (model /power) |
KW |
Y100L-6/2.2 |
Y100L-4
/3 |
Y112M-4/4 |
Y132S-4/5.5 |
Y132S-4/5.5 |
Y132M-
4/7.5 |
Y160L-
6/11 |
Y180L-
6/15 |
Y200L-6/18.5 |
|
OUTLINE DIMENSIONS (front-rear× left-right× height) |
mm |
1400× 780
× 1950 |
1890× 800
× 1950 |
1970× 1100
× 2300 |
1980× 1100
× 2350 |
2260× 1265
× 2450 |
2430× 1490
× 2850 |
2560× 1640
× 3400 |
2660× 1710
× 3480 |
2880× 1900
× 3890 |
|
WHOLE MACHINE WEIGHT |
Kg |
2050 |
2400 |
3820 |
4610 |
6100 |
7200 |
11200 |
14500 |
19200 |
