| Prod Model: |
JC21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |

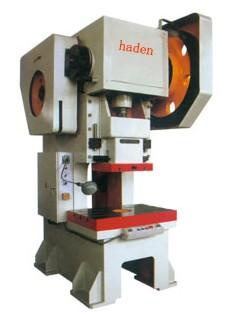

Product Description
Usage
1. Suitable for various cold punching and pressing processing such as blanking, holes punching, forming, bending, shallow drawing etc.
2. It is widely used in the industries such as electric apparatus, instruments, vehicles, machinery and hardware etc.
Structure
3. Welded steel structure with higher strength and rigidity;
4. C-frame machine fuselage, convenient for mould installation and processing large work pieces;
5. Horizontal crankshaft, easy for maintenance;
6. Rigid clutch, simple structure;
7. Belt-type brake, easy for adjustment;
8. Collapsed-type safety device to protect the whole machine from being damaged due to overloading
Characteristics
9. The machine fuselage with higher strength and rigidity, economic and durable;
10. Simple structure, good versatility, easy operation and maintenance.
|
TECHNICAL PARAMETERS |
UNIT |
JC21-63 |
JC21-80 |
JC21-100 |
JC21-125 |
JC21-160 |
JC21--200 |
JC21--250 |
|
NOMINAL PRESSURE |
KN |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
|
NOMINAL PRESSURE STROKE |
mm |
4 |
5 |
5 |
6 |
6 |
6 |
6 |
|
RAM STROKE |
mm |
80 |
100 |
100 |
120 |
140 |
160 |
160 |
|
TIMES OF STROKE |
times/min |
50 |
50 |
40 |
38 |
40 |
36 |
35 |
|
MAX DIE INSTALLATION HEIGHT |
mm |
250 |
300 |
300 |
320 |
350 |
390 |
450 |
|
REGULATION OF DIE INSTALLATION HEIGHT |
mm |
50 |
60 |
80 |
100 |
110 |
110 |
120 |
|
CENTER OF RAM TO MACHINE BODY |
mm |
250 |
260 |
310 |
350 |
380 |
400 |
420 |
|
WORKTABLE SIZE (front-rear× left-right) |
mm |
440× 670 |
470× 750 |
570× 860 |
650× 1000 |
710× 1120 |
740× 1300 |
800× 1400 |
|
WORKTABLE HOLE SIZE |
mm |
Φ 180 |
Φ 180 |
Φ 180 |
Φ 200 |
Φ 220 |
Φ 180 |
Φ 220 |
|
WORKTABLE THICKNESS |
mm |
70 |
80 |
90 |
110 |
130 |
160 |
160 |
|
RAM BOTTOM SURFACE SIZE (front-rear× left-right) |
mm |
240× 280 |
260× 300 |
360× 450 |
420× 520 |
440× 560 |
580× 760 |
600× 780 |
|
DIE HANDLE HOLE SIZE (diameter × depth) |
mm |
Φ 50× 70 |
Φ 60× 80 |
Φ 60× 80 |
Φ 60× 80 |
Φ 65× 90 |
Φ 65× 90 |
Φ 70× 100 |
|
COLUMN DISTANCE |
mm |
320 |
360 |
460 |
460 |
560 |
670 |
580 |
|
MOTOR (model /power) |
KW |
Y132S-4/5.5 |
Y132S-4/5.5 |
Y132M-4/7.5 |
Y160L-6/11 |
Y180L-6/15 |
Y200L-6/18.5 |
Y200L-6/18.5 |
|
OUTLINE DIMENSIONS (front-rear× left-right× height) |
mm |
1440× 1100×
2430 |
1756× 1265×
2450 |
1820× 1490×
2850 |
1905× 1640×
3400 |
2040× 1710×
3480 |
2380× 1900×
3890 |
2630× 2900×
3600 |
|
WHOLE MACHINE WEIGHT |
Kg |
4150 |
5400 |
6420 |
9500 |
12500 |
17600 |
21000 |
Beijing Huaduan Machine Tool Manufacturing Co., Ltd. is located in the east of No. 103 Jing-Jin Road, Sanhe City, Hebei Province. Our geographical position is superior and transportation is convenient.
Our company is a professional manufacturer of CNC bending machines, CNC cutting machines, and CNC punching, polishing-edge machines, punch machine hydraulic press machine and so on. Our company covers an area of 18, 000 square meters and owns the assets of 60 million Yuan. We have 260 existing staff members and 35 engineering and technical personnel.
In recent years, Beijing Huaduan Machine Tool Manufacturing Co., Ltd., with strong technical force and rich experience, constantly improves processing and innovation in the emerging tool industry.
Our company has completely passed ISO9001: 2000 quality management system certification. Our products sell well throughout the country and we have self-supporting authority. Our partial products have been exported to Southeast Asia, South America, Africa, Eastern Europe, and other countries and regions, and are deeply trusted by domestic and foreign users.
Our company insists on "quality first, customer supreme" and sincerely welcomes customers from all over the world to negotiate and cooperate.
