| Prod Model: |
J23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |
Product Description
Performances & Characteristics
Forged fuselage and stable performance;

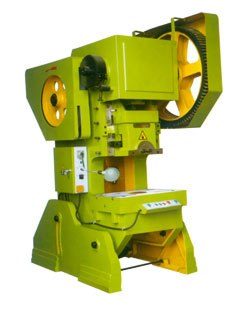

C-shaped fuselage which is open-typed and tilt-able, with working space large enough to facilitate materials or waste materials to slide down;
Rotating key clutch with simple structure;
Belt brake for easier adjustment;
Pressing type of safety device to protect the whole machine from being damaged due to overloading;
Simple structure, good universal property and easy operation and maintenance.
|
TECHNICAL PARAMETERS |
JB23-63 |
JB23-63A |
JB23-80 |
JB23-100 |
|
NOMINAL PRESSURE (KN) |
630 |
630 |
800 |
1000 |
|
NOMINAL PRESSURE STROKE (mm) |
4 |
4 |
5 |
5 |
|
RAM STROKE (mm) |
80 |
80 |
100 |
100 |
|
IMES OF STROKE (times/min) |
50 |
50 |
50 |
40 |
|
MAX DIE INSTALLATION HEIGHT (mm) |
250 |
300 |
300 |
300 |
|
REGULATION OF DIE INSTALLATION HEIGHT (mm) |
50 |
50 |
60 |
80 |
|
CENTEROF RAMTO MACHINE BODY (mm |
250 |
250 |
260 |
310 |
|
WORKTABLE SIZE (front-rear×left-right)mm |
420×650 |
470×750 |
470×750 |
570×860 |
|
WORKTABLE HOLE SIZE (mm) |
Φ180 |
Φ180 |
Φ180 |
Φ180 |
|
WORKTABLE THICKNESS (mm) |
70 |
80 |
80 |
90 |
|
RAM BOTTOM SURFACE SIZE (front-rear×left-right)mm |
240×280 |
270×360 |
260×300 |
360×450 |
|
DIE HANDLE HOLE SIZE (diameter×depth)mm |
Φ50×70 |
Φ50×70 |
Φ60×80 |
Φ60×80 |
|
COLUMN DISTANCE (mm) |
320 |
390 |
300 |
420 |
|
MOTOR (model /power)KW |
Y132S-4/5.5 |
Y132S-4/5.5 |
Y132S-4/5.5 |
Y132M-4/7.5 |
|
Max Inclinable Angel |
25 |
25 |
20 |
20 |
|
OUTLINE DIMENSIONS (front-rear×left-right×height)mm |
1740×1100×
2560 |
1740×1180×
2560 |
1765×1265×
2650 |
1940×1490×
2850 |
|
WHOLE MACHINE WEIGHT (Kg) |
3800 |
4300 |
5015 |
6120 |
Beijing Huaduan Machine Tool Manufacturing Co., Ltd. is located in the east of No. 103 Jing-Jin Road, Sanhe City, Hebei Province. Our geographical position is superior and transportation is convenient.
Our company is a professional manufacturer of CNC bending machines, CNC cutting machines, and CNC punching, polishing-edge machines, punch machine hydraulic press machine and so on. Our company covers an area of 18, 000 square meters and owns the assets of 60 million Yuan. We have 260 existing staff members and 35 engineering and technical personnel.
In recent years, Beijing Huaduan Machine Tool Manufacturing Co., Ltd., with strong technical force and rich experience, constantly improves processing and innovation in the emerging tool industry.
Our company has completely passed ISO9001: 2000 quality management system certification. Our products sell well throughout the country and we have self-supporting authority. Our partial products have been exported to Southeast Asia, South America, Africa, Eastern Europe, and other countries and regions, and are deeply trusted by domestic and foreign users.
Our company insists on "quality first, customer supreme" and sincerely welcomes customers from all over the world to negotiate and cooperate.
